CONVERTIBLE TOP

S-67prose procedure
Continued from S-66

Top fabric installation (continued)

  1. 17
    Rivet the top fabric to the link assembly.
    Unfold the convertible top.

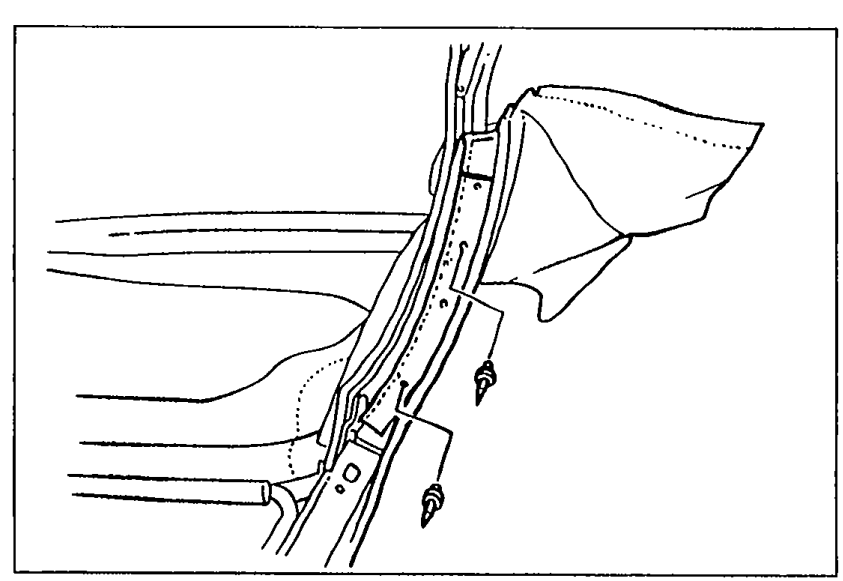

    Illustration showing the convertible top unfolded with the top fabric being riveted to the link assembly at the side rail.
    05U0SX-144
  2. 18
    Install the retainers and weatherstrips to the link assembly.

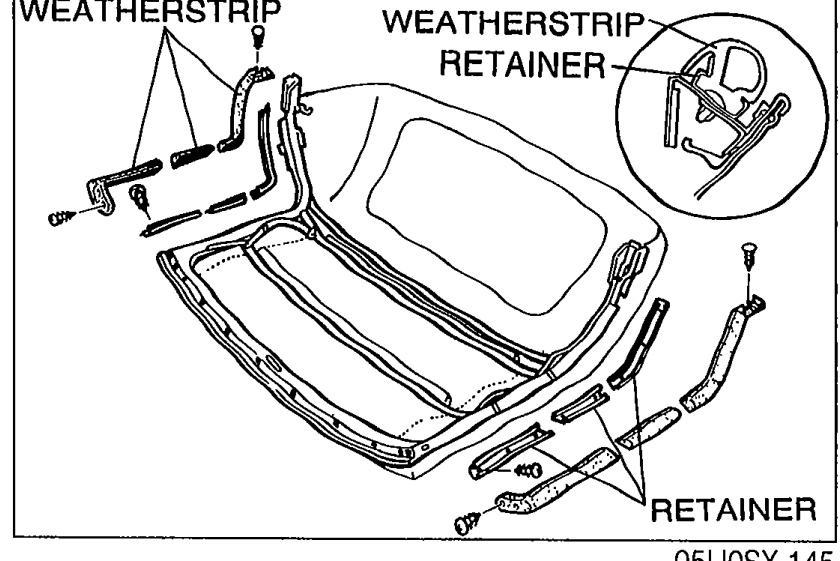

    Exploded view of the link assembly with the WEATHERSTRIP and RETAINER components labeled. An inset detail circle shows the cross-section of the WEATHERSTRIP RETAINER installation.
    05U0SX-145

Adjusting Small Sag

  1. 1
    Raise the convertible top and lock the latch assemblies.
  2. 2
    Use a steamer or steam wand to remove sags.
  3. 3
    Allow top fabric to dry.
