WINDSHIELD WIPER AND WASHER — COMPONENTS

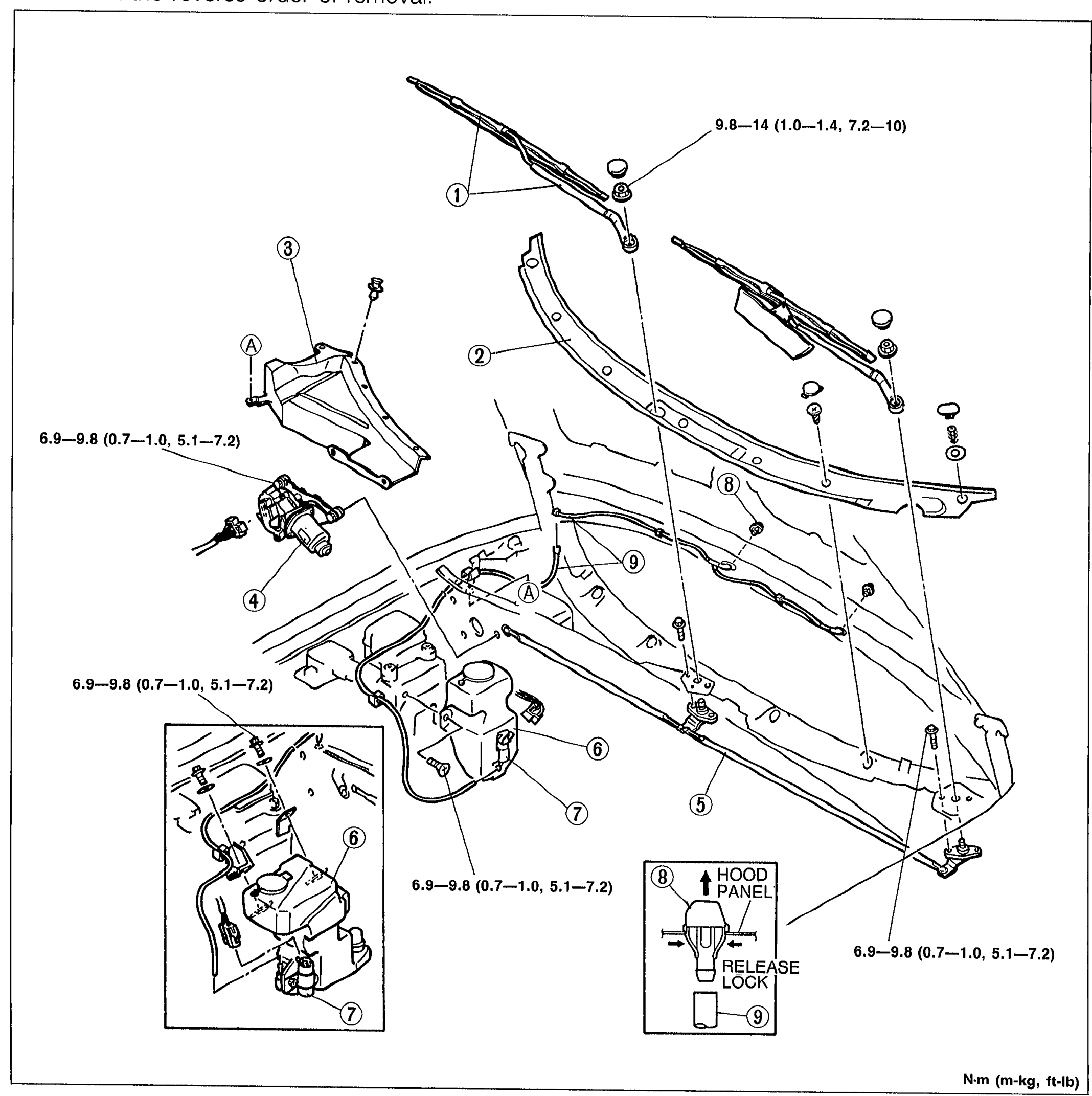

S-35parts diagramCOMPONENTS
CAUTION
Obtain the code number and deactivate the audio anti-theft system before disconnecting the battery. (Refer to Section T.)
Removal / Installation
- 1Disconnect the negative battery cable.
- 2Remove in the order shown in the figure.
05U0SX-058 - 3Install in the reverse order of removal.
Component callouts
1
ComponentWiper arm and blade
ReferenceAdjustment ...... page S-36
2
ComponentCowl grille
Reference
3
ComponentBaffle cover
Reference
4
ComponentWiper motor
ReferenceInspection ........ page S-34
5
ComponentWiper link
Reference
6
ComponentWasher tank
Reference
7
ComponentWasher motor
ReferenceInspection ...... page S-34
8
ComponentWasher nozzle
ReferenceAdjustment ...... page S-36
9
ComponentWasher pipe
Reference
| Specification | Value |
|---|---|
| Wiper arm nut | 9.8 - 14N·m |
| Wiper motor / link / washer tank mounting | 6.9 - 9.8N·m |
Wiper arm nut
9.8 - 14N·m
Wiper motor / link / washer tank mounting
6.9 - 9.8N·m
