DASHBOARD AND CONSOLE
S-51prose procedureCenter lower panel assembly shown for USA and Canada variants with different clip/pin/hook arrangements.
Removal Note
Center lower panel assembly
The clips are where shown.
Meter hood assembly
The clips are where shown.
Center panel assembly
The clips are where shown.
Adjustment Note

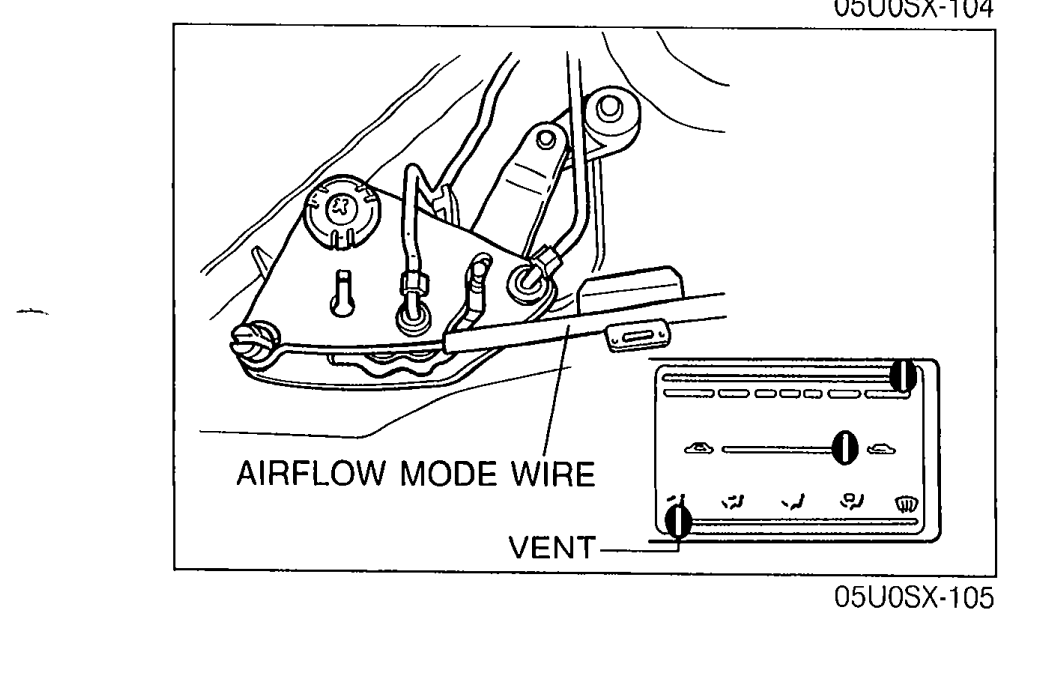

Airflow mode wire
Airflow mode wire adjustment
- 1Set the airflow mode control lever to VENT position.
05U0SX-105 - 2Connect and clamp the wire with the shutter lever on the heater unit at its closest point.After installation, move the airflow mode control lever to be sure the wire is securely attached, and that it moves the full stroke from DEF to VENT.
