Mazda MX-5 NA silhouetteMX-5 NA

DASHBOARD AND CONSOLE

S-52prose procedure
Continued from S-51

REC-FRESH wire

REC-FRESH wire adjustment

  1. 1
    Set the selector lever to FRESH position.

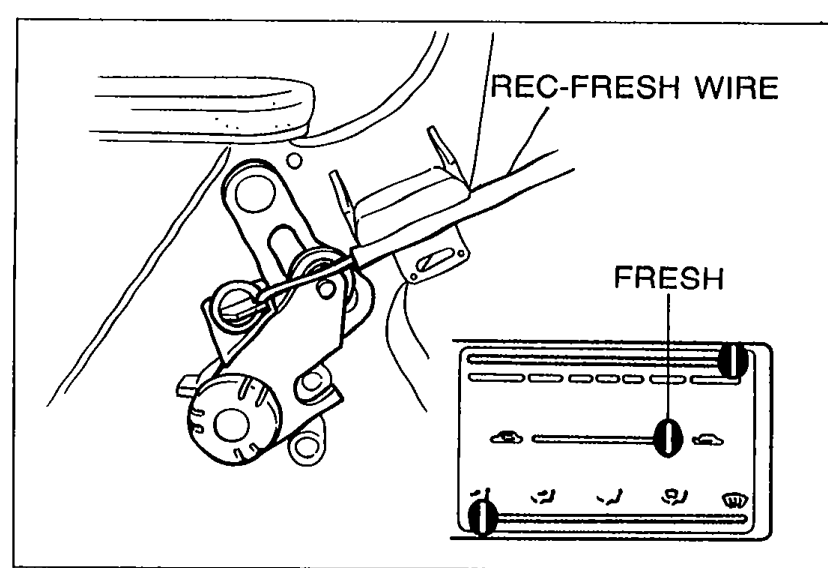

    Detail of the blower unit showing the REC-FRESH WIRE connected to the shutter lever, with a control lever inset showing the FRESH position.
    05U0UX-161
  2. 2
    Connect and clamp the wire with the shutter lever on the blower unit at its closest point.
    After installation, move the REC-FRESH lever to be sure the wire is securely attached, and that it moves the full stroke from REC to FRESH.

Temperature blend wire

Temperature blend wire adjustment

  1. 1
    Set the temperature blend lever to MAX-HOT position.

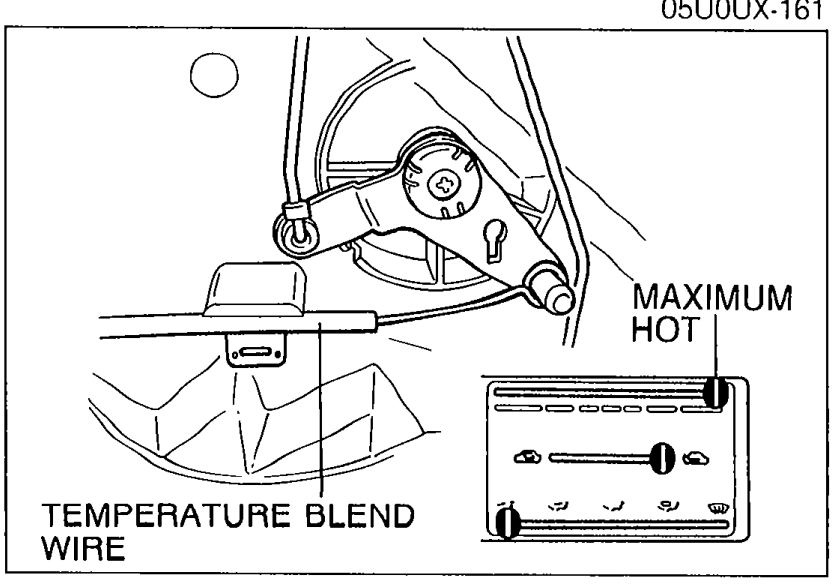

    Detail of the heater unit showing the TEMPERATURE BLEND WIRE connected to the shutter lever, with a control lever inset showing the MAXIMUM HOT position.
    05U0SX-106
  2. 2
    Connect and clamp the wire with the shutter lever on the heater unit all the way to the right.
    After installation, move the temperature blend lever to be sure the wire is securely attached, and that it moves the full stroke from HOT to COLD.
