SEAT BELT

S-58prose procedure
Continued from S-57

EMERGENCY LOCKING RETRACTOR (ELR)

Inspection

ELR Inspection

  1. 1

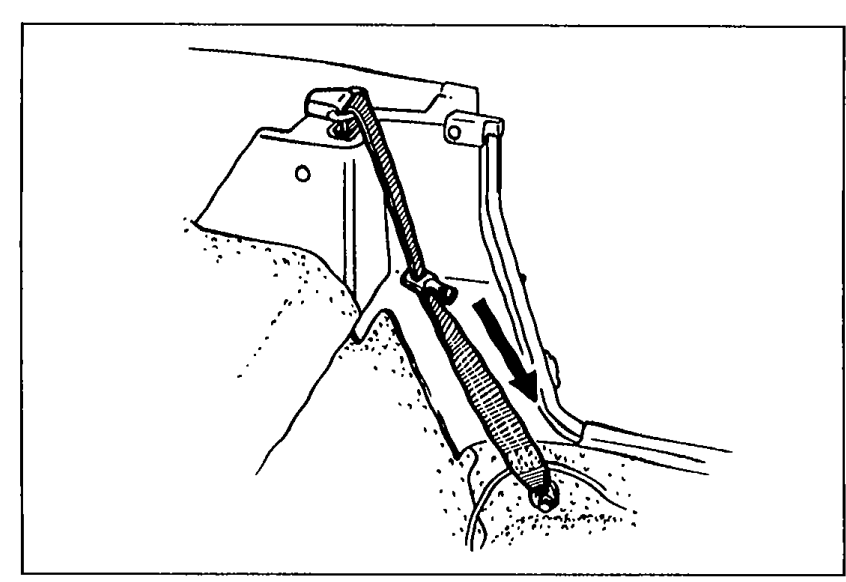

    Verify that the belt can be pulled out smoothly, and that it moves smoothly when worn.
    Illustration showing the seat belt being pulled out smoothly from the B-pillar to verify retractor operation.
    05U0SX-117
  2. 2
    Verify that the retractor locks when the belt is quickly pulled.
  3. 3
    Remove the retractor.
  4. 4

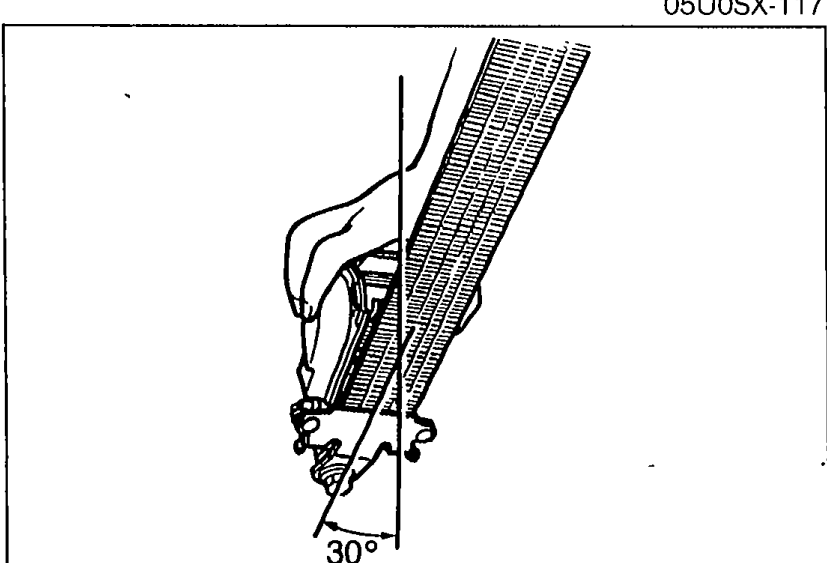

    Hold the retractor as it would be installed.
    Illustration showing retractor held inclined at approximately 30 degrees while pulling the belt out, to test the locking mechanism.
    05U0SX-118
  5. 5
    Slowly incline the retractor while pulling out the belt.
  6. 6
    Verify that the retractor locks at approx. 30 degrees inclination.

WEBBING

Inspection

Inspect the webbing for scars, tears, and wear and for deformation of the fittings.

BUCKLE SWITCH

Inspection

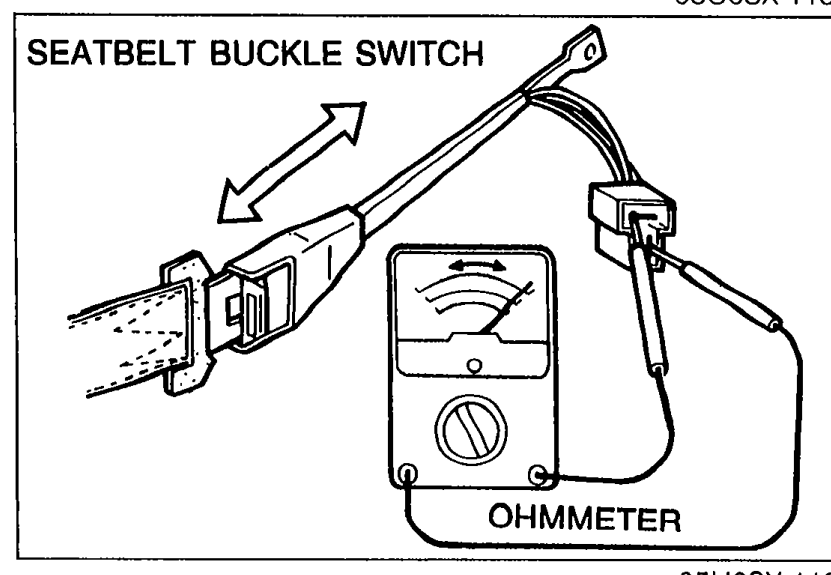

Buckle Switch Inspection

  1. 1
    Disconnect the seatbelt buckle switch connector.
    Illustration of the seatbelt buckle switch being tested with an ohmmeter. Labels: 'SEATBELT BUCKLE SWITCH' (top) and 'OHMMETER' (bottom showing analog meter).
    05U0SX-119
  2. 2
    Check continuity of the switch.
  3. 3
    If continuity is not as specified, replace the switch.

Buckle Switch Continuity

Buckled
ContinuityNo
Unbuckled
ContinuityYes
