WINDSHIELD — Installation Note (continued)

S-41prose procedure

Windshield Installation Note (continued)

  1. 9

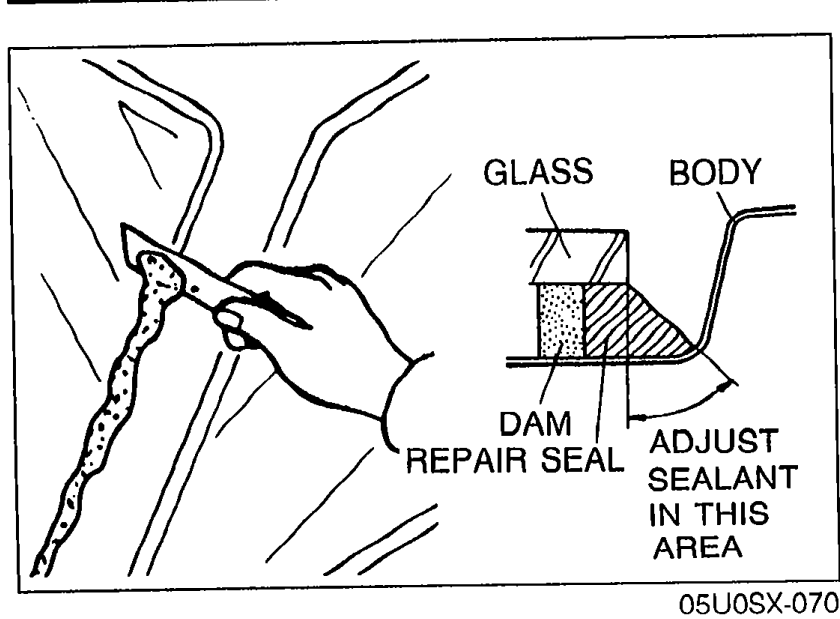

    Use a scraper to smooth away any sealant that oozes out. Add more sealant to any points of poor contact.
    A hand using a scraper to smooth out sealant that has oozed between the GLASS and the BODY. Inset detail at right shows the cross-section: DAM and REPAIR SEAL between GLASS and BODY with the ADJUST SEALANT IN THIS AREA arrow pointing to the sealant fillet.
    05U0SX-070
  2. 10
    Install a new windshield molding. (Refer to page S-28.)
  3. 11
    Check for water leaks.
  4. 12
    If a leak is found, wipe the water off well and remove the molding and windshield. Reinstall the windshield and replace the molding with new molding. (Refer to page S-28.)
