Mazda MX-5 NA silhouetteMX-5 NA

REAR WINDOW

S-47prose procedure
Continued from S-46

Removal Note

Rear window

Rear window removal

  1. 1
    Remove the rear package trim.

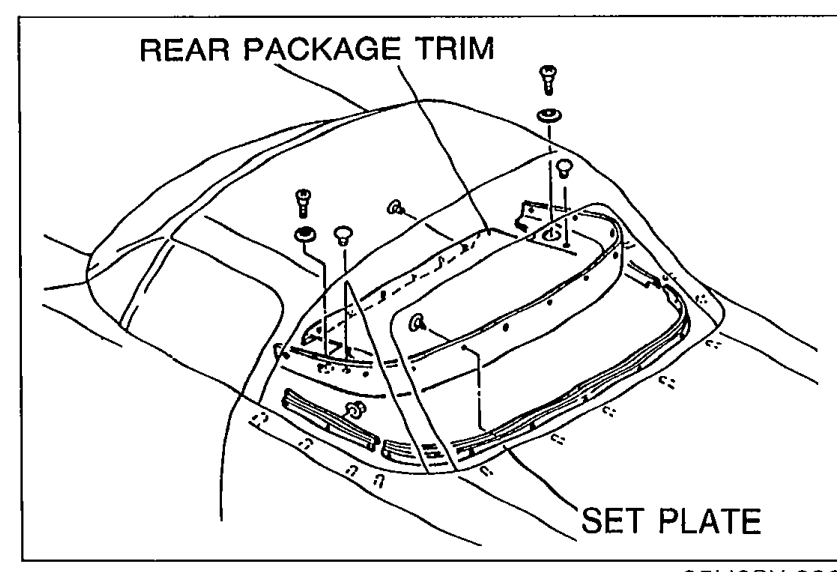

    Convertible top interior view showing the rear package trim at top and the set plate along the lower edge of the rear window opening. Arrows point to the rear package trim and set plate as parts to remove.
    05U0SX-086
  2. 2
    Remove the set plates.
    Unzip the rear window, and lower the convertible top fully.
  3. 3
    Remove the beltline covers.

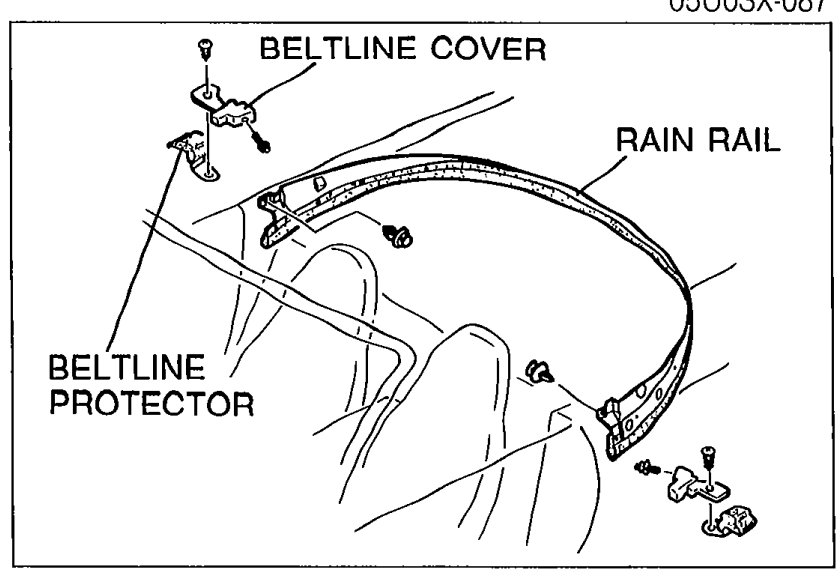

    Detail of the beltline area showing the beltline cover at top, the beltline protector at the bottom, and the rain rail with mounting fasteners.
    05U0SX-088
  4. 4
    Remove the beltline protectors.
  5. 5
    Remove the rain rail mounting fasteners from the body.
    Raise the convertible top completely.
    Leave the top latch assemblies in the unlocked position.
  6. 6
    Remove the rain rail from the studs.

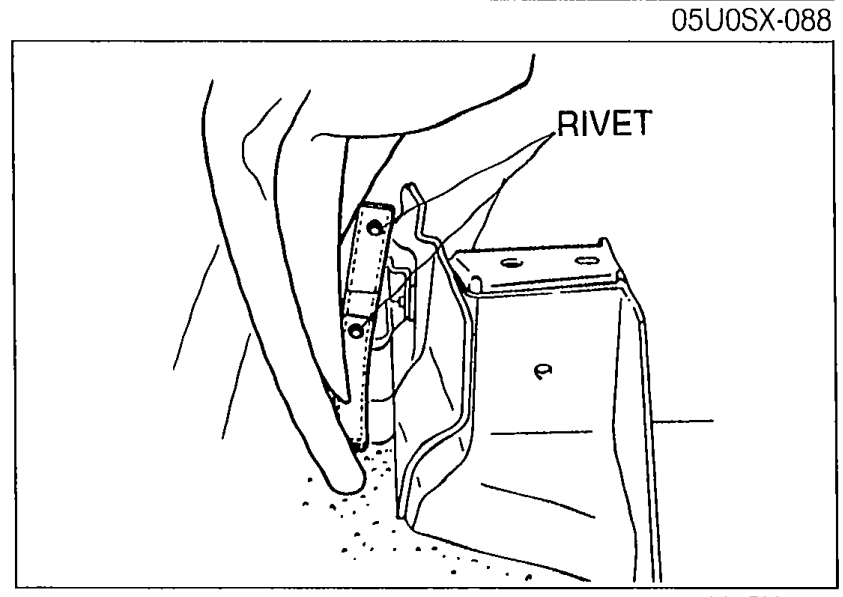

    Close-up of the link assembly showing a rivet that must be drilled out to free the rain rail from the studs.
    05U0SX-089
  7. 7
    Remove the rivets from the link assembly with a drill. Drill size: φ4.0mm (φ0.16 in)
    Remove any accumulated dirt, etc.
  8. 8
    Remove the rain rail from the body.
    Cover the body to prevent it from damage.

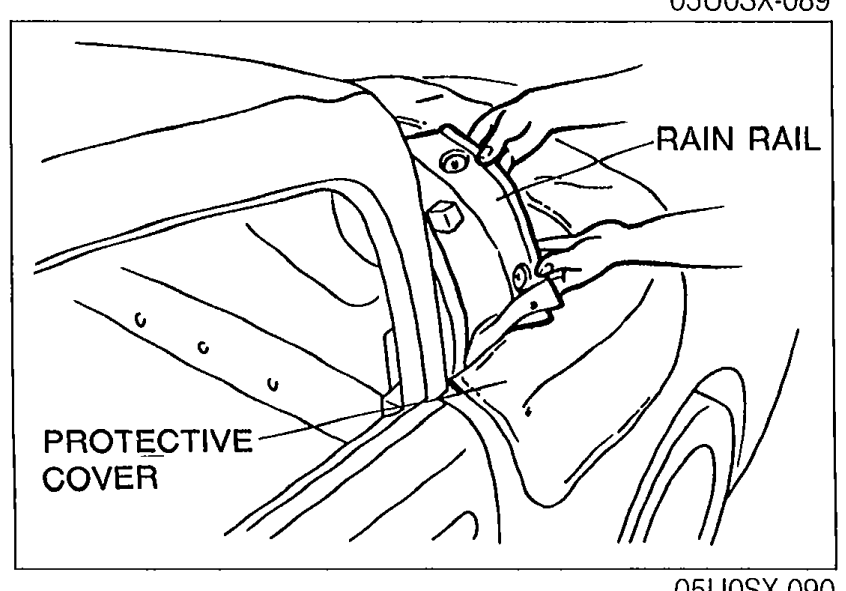

    Rain rail being lifted away from the body with a protective cover placed underneath to prevent damage to the body paint.
    05U0SX-090
Drill sizeRivet removal from link assembly
φ4.0mm (φ0.16 in)
