HEATER UNIT

U-20parts diagram
Continued from U-19

Disassembly / Assembly

Disassemble and assemble as shown in the figure.
Parts DiagramFig. fig1
Parts diagram
#Part NameNotes
1Heater core—
2Temperature blend door—
3Airflow mode door—

Inspection

Heater core

Heater core inspection

  1. 1
    Check the heater core fins for blockage.
  2. 2
    If the fins are clogged, clean them.
  3. 3
    Check the fittings for cracks or other damage. Replace the heater core if necessary.

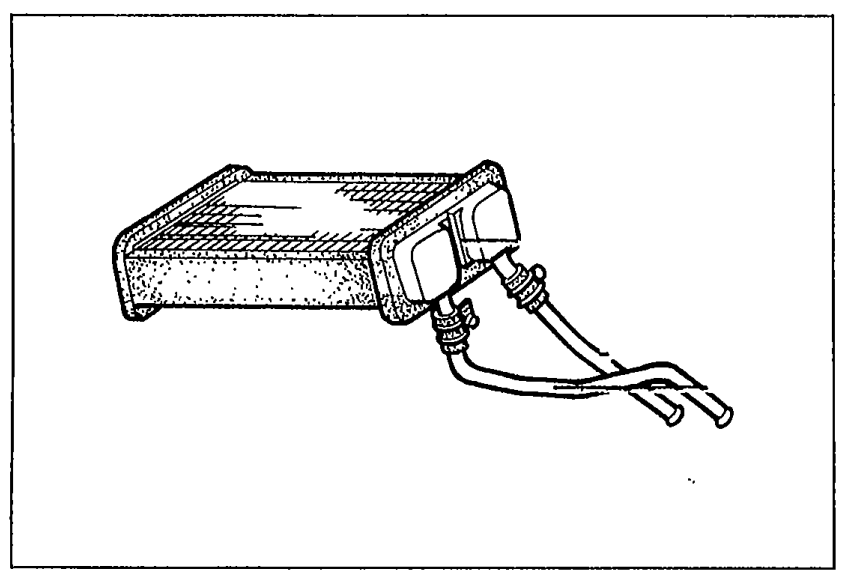

    Heater core unit shown in isolation for inspection, with two coolant hose stubs visible on the left side and the finned heat-exchanger matrix on the right.
    05U0UX-035
