AIR CONDITIONER

U-43prose procedure

With P/S vs Without P/S variants

Continued from U-42

Adjustment

Drive belt

(With P/S)

Drive Belt Adjustment (With P/S)

1

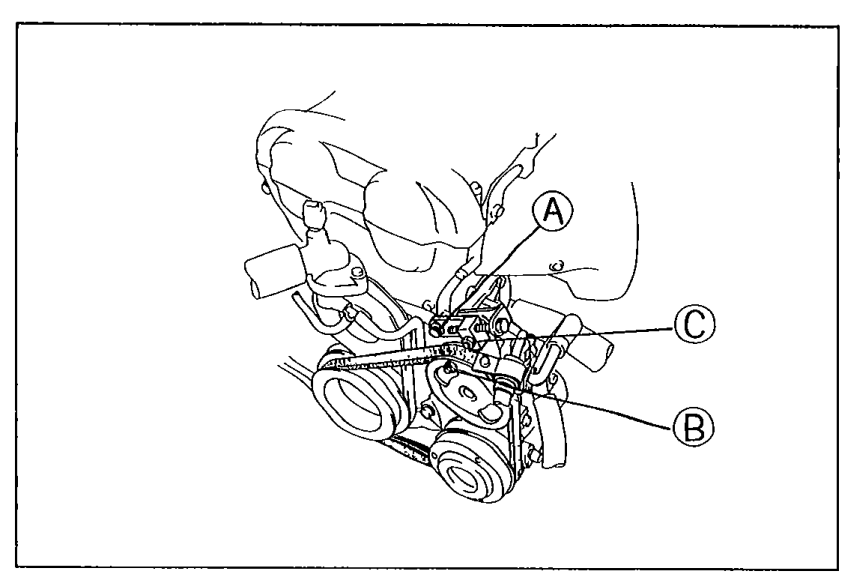

Loosen P/S oil pump bolts A and B and nut C.
05U0UX-078
2
Adjust the belt tension and deflection to specification by turning adjusting bolt D.
3
Tighten bolts A and B and nut C.

Tightening torque (With P/S)

Specification	Value
A	31 - 46N·m
B	36 - 54N·m
C	19 - 25N·m

31 - 46N·m

36 - 54N·m

19 - 25N·m

Drive Belt Specification (With P/S)

	New	Used
Tension	491—589 N (50—60 kg, 110—132 lb)	422—491 N (43—50 kg, 95—110 lb)
Deflection when applying moderate pressure 98 N (10 kg, 22 lb)	8.0—9.0mm (0.31—0.35 in)	9.0—10.0mm (0.35—0.39 in)

Tension

New491—589 N (50—60 kg, 110—132 lb)

Used422—491 N (43—50 kg, 95—110 lb)

Deflection when applying moderate pressure 98 N (10 kg, 22 lb)

New8.0—9.0mm (0.31—0.35 in)

Used9.0—10.0mm (0.35—0.39 in)

(Without P/S)

Drive Belt Adjustment (Without P/S)

1

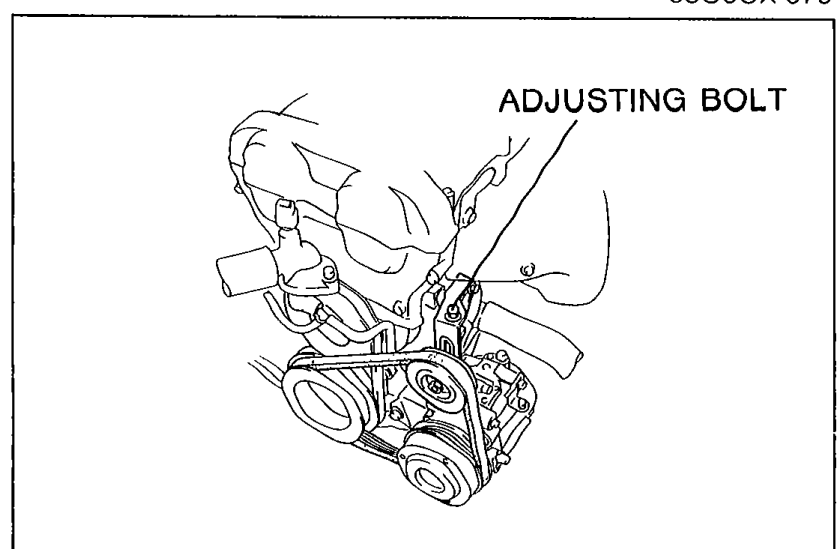

Loosen the locknut.
2
Adjust the belt tension and deflection to specification by turning the adjusting bolt.
05U0UX-080

Tightening torque (Without P/S)

Specification	Value
Adjusting bolt locknut	37 - 52N·m

Adjusting bolt locknut

37 - 52N·m

Drive Belt Specification (Without P/S)

	New	Used
Tension	491—589 N (50—60 kg, 110—132 lb)	422—491 N (43—50 kg, 95—110 lb)
Deflection when applying moderate pressure 98 N (10 kg, 22 lb)	8.0—9.0mm (0.31—0.35 in)	9.0—10.0mm (0.35—0.39 in)
