Windshield Wiper & Washer — Component Location

Z-43wiring diagram

Shows both with-ABS and without-ABS routing for the windshield washer motor D-01.

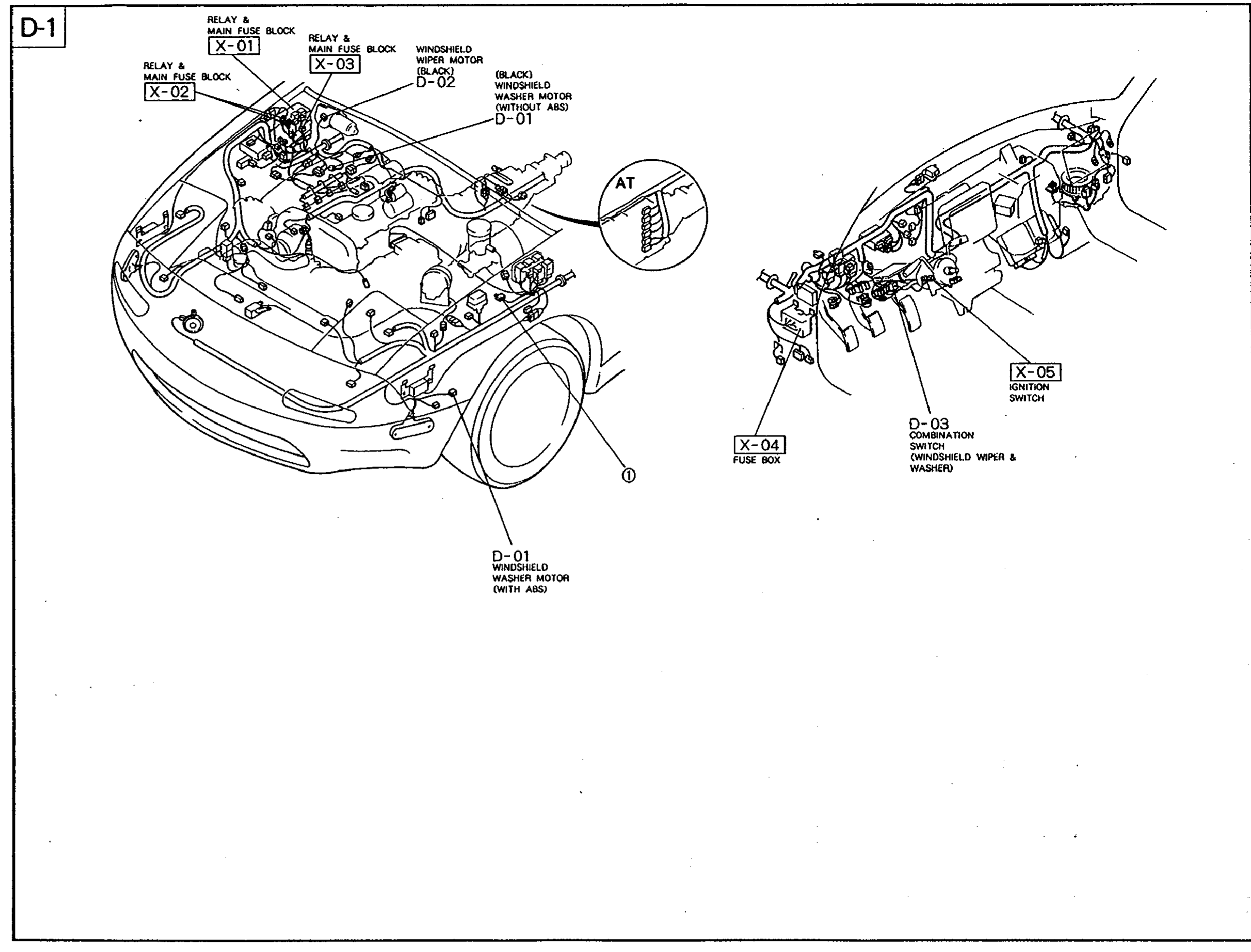

Component-location illustration (label D-1) showing where each component of the windshield wiper & washer wiring schematic on the next page (Z-44, D-2) physically lives on the vehicle. Engine bay (left) and instrument-panel/cowl harness (right) are shown.

Component LocationFig. fig1

Locations of the windshield wiper & washer system components.

Component location illustration for the windshield wiper & washer system on the MX-5. Left half shows engine bay with the relay & main fuse block (X-01, X-02, X-03), black windshield washer motor (without ABS) labeled D-01, an AT (automatic transmission) connector inset, and the windshield wiper motor area D-02. Right half shows the dashboard/instrument-panel harness with X-04 fuse box, D-03 combination switch (windshield wiper & washer), and X-05 ignition switch. A black harness-routing dot callout (1) is shown by the front wheel near the underbody route to D-01.

1X-01(engine bay, relay & main fuse block)

2X-02(engine bay, relay & main fuse block)

3X-03(engine bay, relay & main fuse block)

4D-02(engine bay, windshield wiper motor (black))

5D-01(windshield washer motor — without ABS at firewall, with ABS near front wheel)

6X-04(instrument panel, fuse box)

7D-03(instrument panel, combination switch (wiper & washer))

8X-05(instrument panel, ignition switch)
