Measuring voltage

Z-GI-14prose procedure

Checks

Measuring voltage at sample circuit points

  1. 1
    Use a voltmeter or test lamp to ascertain voltage at the measuring points.

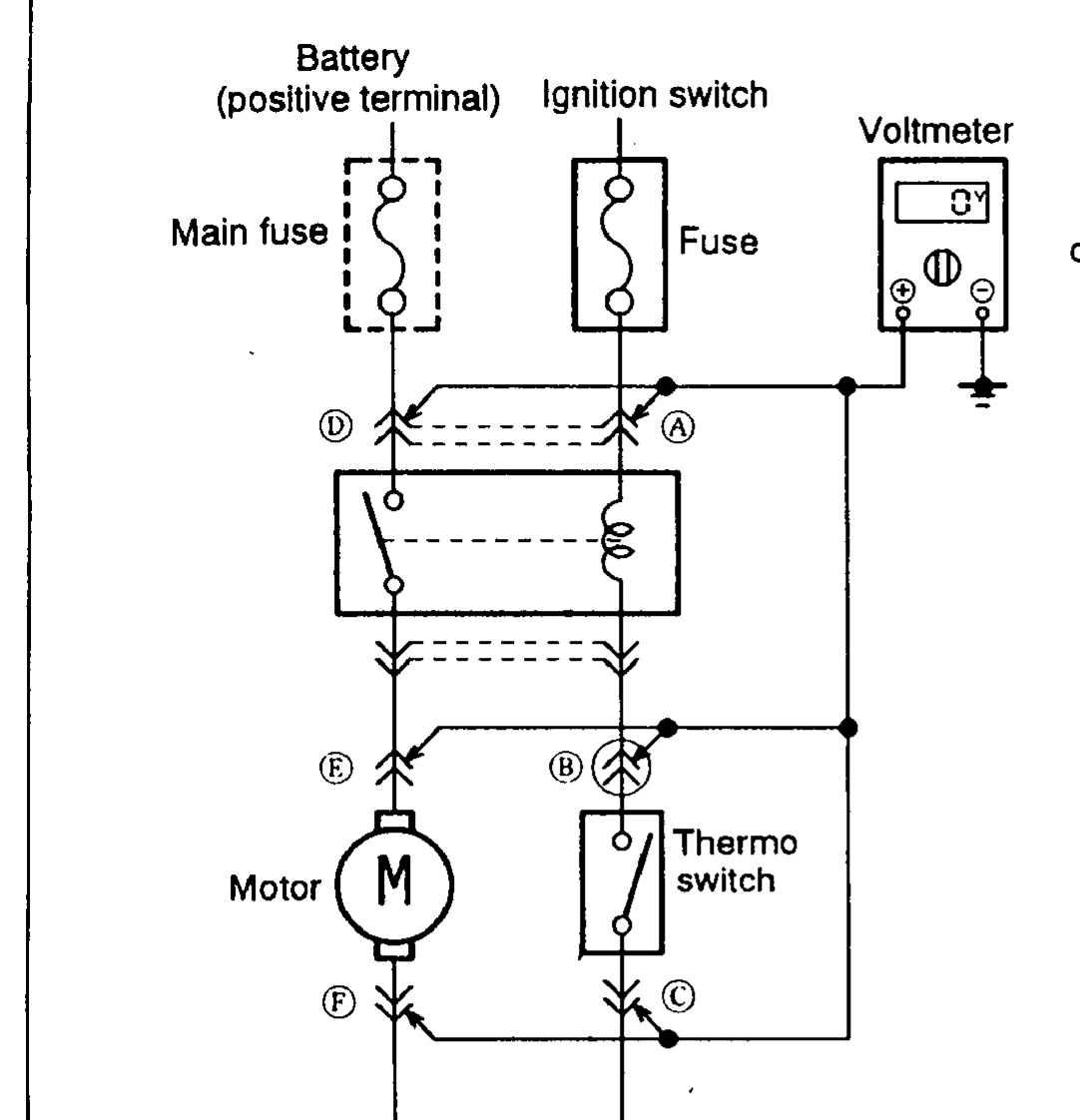

    Wiring schematic for a sample circuit used to demonstrate voltage measurement. Components shown: Battery (positive terminal), Main fuse, Ignition switch, Fuse, a switching relay/contact, Motor (M), Thermo switch, and grounds (Ground 1, Ground 2). Voltmeter and Test lamp are shown above the circuit as measurement instruments. Measuring points labeled A, B, C, D, E, F (each circled).

Voltage at measuring points by circuit operation

A
Ignition switch: OFF0V (test lamp OFF)
Ignition switch: ON / Thermo switch: OFF12V (test lamp ON)
Ignition switch: ON / Thermo switch: ON12V (test lamp ON)
B
Ignition switch: OFF0V (test lamp OFF)
Ignition switch: ON / Thermo switch: OFF12V (test lamp ON)
Ignition switch: ON / Thermo switch: ON0V (test lamp ON)
C
Ignition switch: OFF0V (test lamp OFF)
Ignition switch: ON / Thermo switch: OFF0V (test lamp OFF)
Ignition switch: ON / Thermo switch: ON0V (test lamp ON)
D
Ignition switch: OFF12V (test lamp ON)
Ignition switch: ON / Thermo switch: OFF12V (test lamp ON)
Ignition switch: ON / Thermo switch: ON12V (test lamp ON)
E
Ignition switch: OFF0V (test lamp OFF)
Ignition switch: ON / Thermo switch: OFF0V (test lamp OFF)
Ignition switch: ON / Thermo switch: ON12V (test lamp ON)
F
Ignition switch: OFF0V (test lamp OFF)
Ignition switch: ON / Thermo switch: OFF0V (test lamp OFF)
Ignition switch: ON / Thermo switch: ON0V (test lamp OFF)

Precautions during checks

Touch the voltmeter lead to the ground wire when checking the ground circuit.
