Wiring Harness Layout (E-4)
Z-53wiring diagramShows Federal & California (1), Canada (4), and Canada M/T harness branches; AT-specific branch on dash harness.
E-4 Wiring Harness Layout

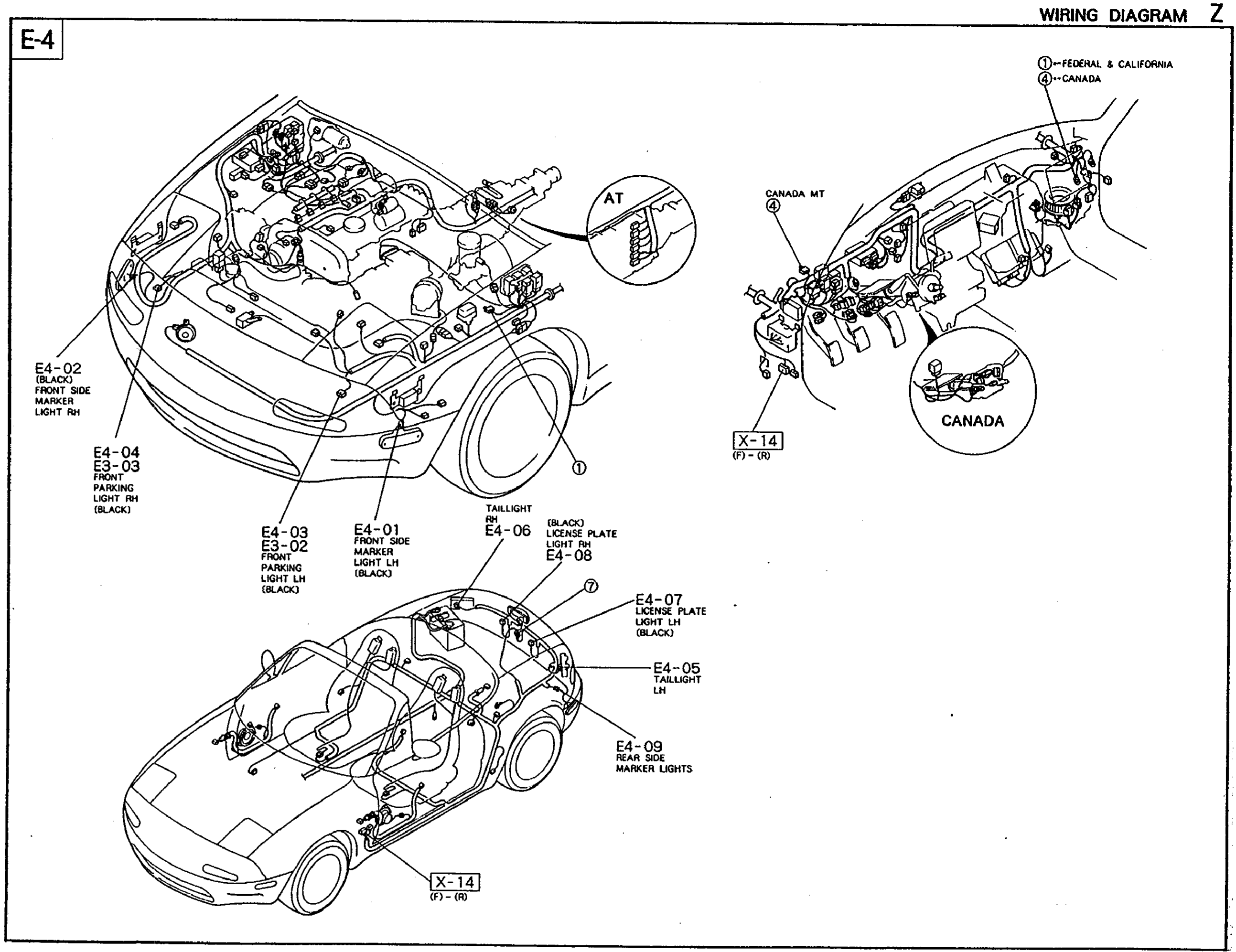

Component location diagram for the E-4 harness, showing where each E4-NN connector is mounted on the body. Three views are provided: engine bay (front-fender removed), instrument panel / dash harness, and rear cabin / trunk area. Federal & California (1) and Canada (4) branches are called out, along with an AT-specific branch and a CANADA M/T variant. Ground point X-14 (7)-(9) is shown twice.
Component LocationFig. fig1
E-4 harness component locations across front body, dash, and rear body.
1E4-01(front side marker light LH (BLACK))
2E4-02(front side marker light RH (BLACK))
3E4-03 / E3-02(parking light LH (BLACK))
4E4-04 / E3-03(parking light RH (BLACK))
5E4-05(taillight LH)
6E4-06(license plate light RH (BLACK))
7E4-07(license plate light LH (BLACK))
8E4-08(license plate light LH (BLACK))
9E4-09(rear side marker lights)
10X-14(ground point (7)-(9), dash and rear floor)
