Canada Windshield Wiper & Washer — Component Location

Z-45wiring diagram

Canada market sheet. Shows both with-ABS and without-ABS routing for D-01.

Continued from Z-44

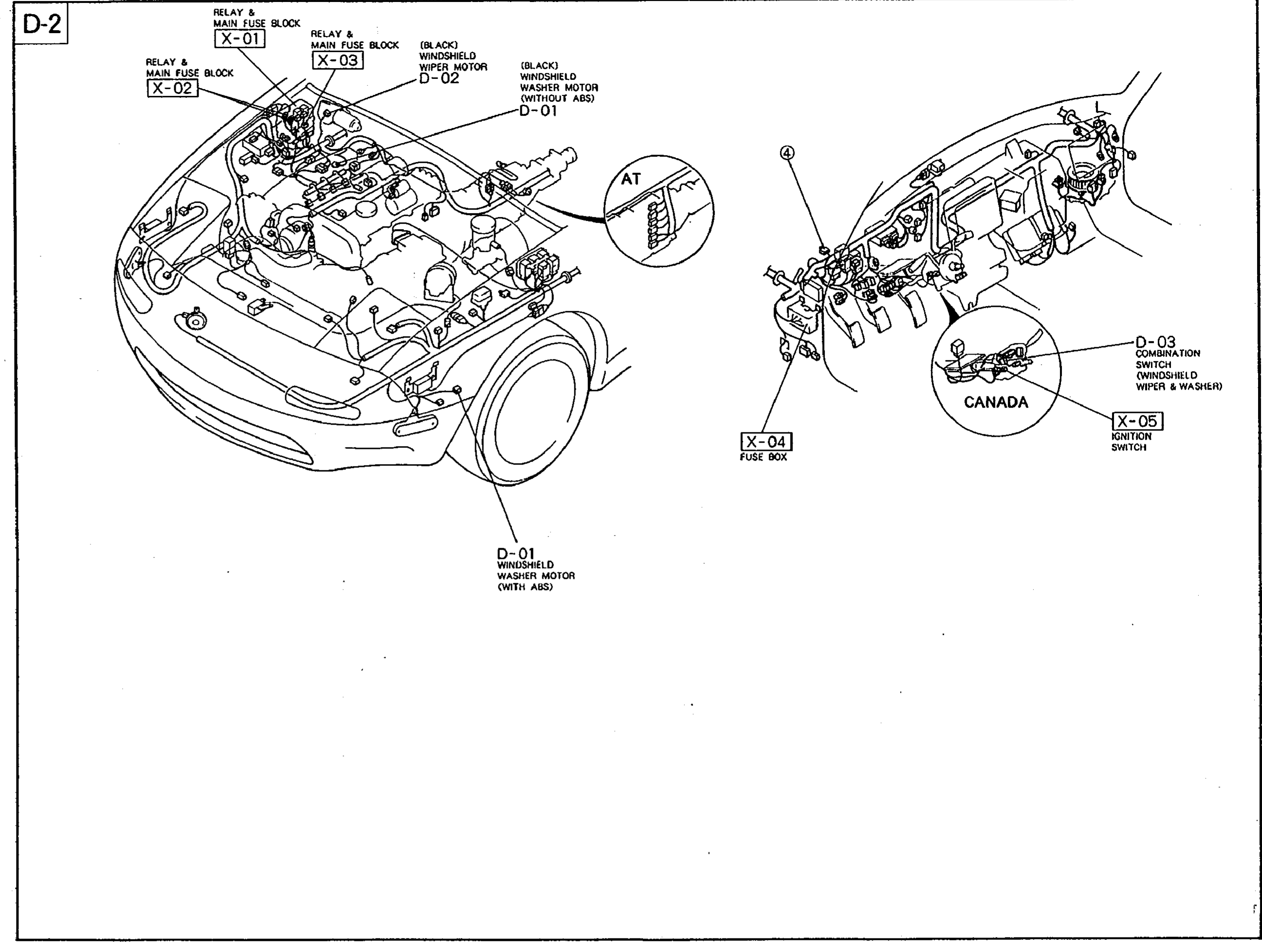

Component-location illustration (label D-2) for the Canada-spec windshield wiper & washer schematic on Z-44. The CANADA-marked highlight on the right side identifies the combination switch D-03 specific to this market.
Component LocationFig. fig1

Locations of the Canada-spec windshield wiper & washer components.

Canada-spec component-location illustration (label D-2) for the windshield wiper & washer schematic. Left half shows engine bay with the relay & main fuse block (X-01, X-02, X-03), black windshield wiper motor labeled D-02, black windshield washer motor D-01 (without ABS) at the firewall, AT inset connector, and the alternate D-01 location near the front wheel for the with-ABS variant. Right half shows the dashboard/cowl harness with X-04 fuse box, X-05 ignition switch, and a CANADA-labeled circle highlighting the D-03 combination switch (windshield wiper & washer).
1X-01(engine bay, relay & main fuse block)
2X-02(engine bay, relay & main fuse block)
3X-03(engine bay, relay & main fuse block)
4D-02(engine bay, windshield wiper motor (black))
5D-01(windshield washer motor — without ABS at firewall, with ABS near front wheel)
6X-04(instrument panel, fuse box)
7D-03(instrument panel, combination switch — Canada-spec)
8X-05(instrument panel, ignition switch)
