WIRING DIAGRAM - J-2 Component Locations (Audio System Type 3)

Z-73wiring diagram

Canada-spec Ignition Switch X-05 callout included.

Continued from Z-72

J-2 Component Locations (Audio System Type 3)

Component LocationFig. fig1

Four-view component-location diagram for the Type 3 Audio System (AM/FM Radio + CD Player + 4 speakers) on the 1990 Mazda MX-5 Miata.

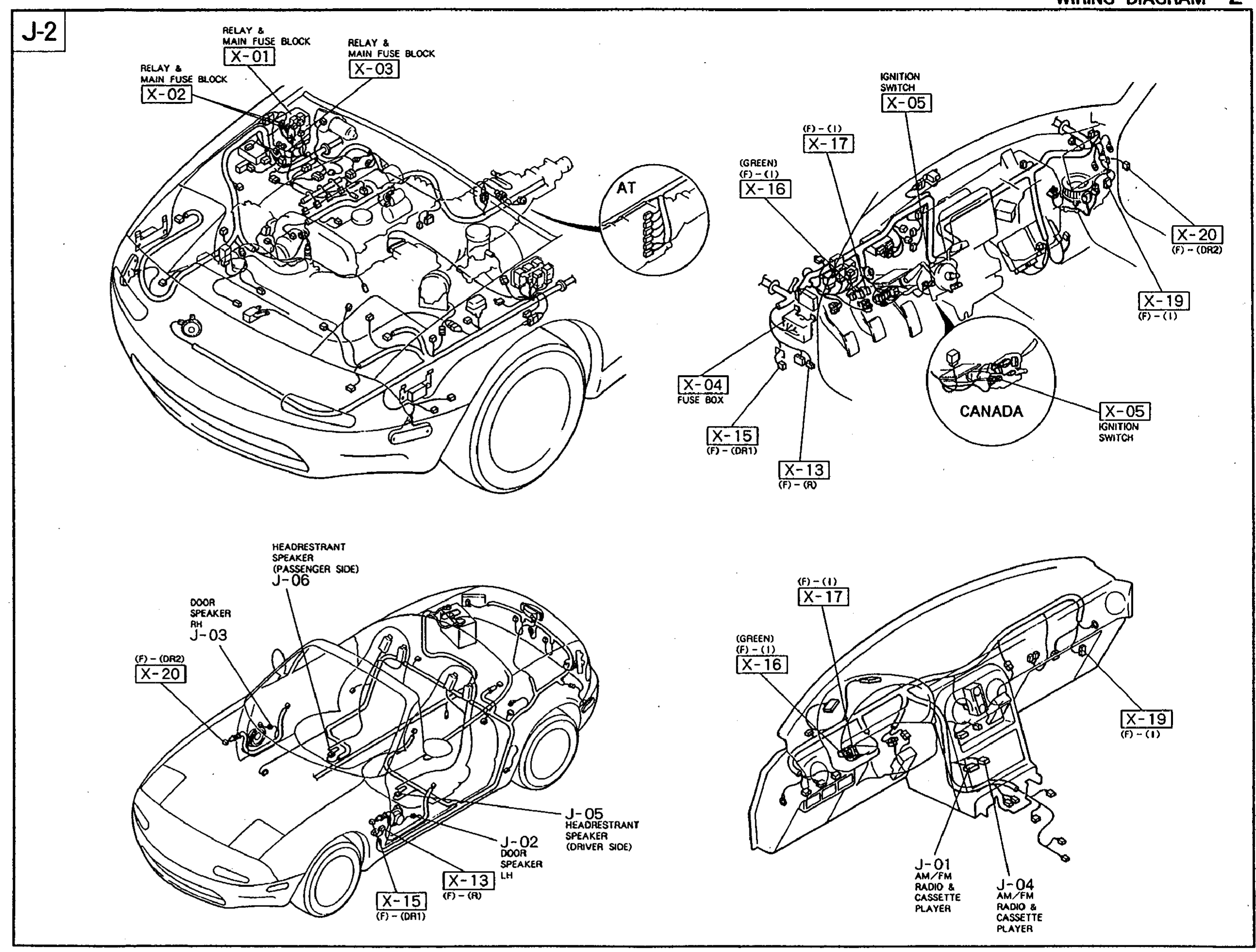

J-2 Audio System Type 3 component-location diagram with four views. Top-left: engine bay with Relay & Main Fuse Block X-01/X-02/X-03 and 'AT' label. Top-right: firewall view with Fuse Box X-04, X-13, X-15, X-16 (GREEN), X-17, Ignition Switch X-05, X-19, X-20, plus Canada-specific X-05 Ignition Switch inset. Bottom-left: cabin view with Door Speaker LH (J-02), Door Speaker RH (J-03), Headrestraint Speaker Passenger Side (J-06), Headrestraint Speaker Driver Side (J-05), and door/cabin connectors X-13, X-15 (DR1), X-20 (DR2). Bottom-right: instrument-panel view with X-16 (GREEN), X-17, X-19, AM/FM Radio & Cassette Player J-01 and J-04 (head unit + CD player link). Page banner reads 'WIRING DIAGRAM Z' top right; section indicator 'J-2' top left.
1X-01(Engine bay - Relay & Main Fuse Block)
2X-02(Engine bay - Relay & Main Fuse Block)
3X-03(Engine bay - Relay & Main Fuse Block)
4X-04(Firewall - Fuse Box)
5X-05(Steering column - Ignition Switch (incl. Canada variant))
6X-13(Cabin harness - Connector)
7X-15(Door harness DR1 - Connector)
8X-16(Dash - Connector (Green))
9X-17(Dash - Connector)
10X-19(Dash - Connector)
11X-20(Door harness DR2 - Connector)
12J-01(Instrument panel - AM/FM Radio & Cassette Player head unit)
13J-02(LH Door - Door Speaker)
14J-03(RH Door - Door Speaker)
15J-04(Instrument panel - AM/FM Radio & Cassette Player (CD player link))
16J-05(Driver-side headrest - Headrestraint Speaker)
17J-06(Passenger-side headrest - Headrestraint Speaker)
