Canada Daytime Running Light Control System — Component Location

Z-51wiring diagram

Canada market component location for the daytime running light control system.

Continued from Z-50

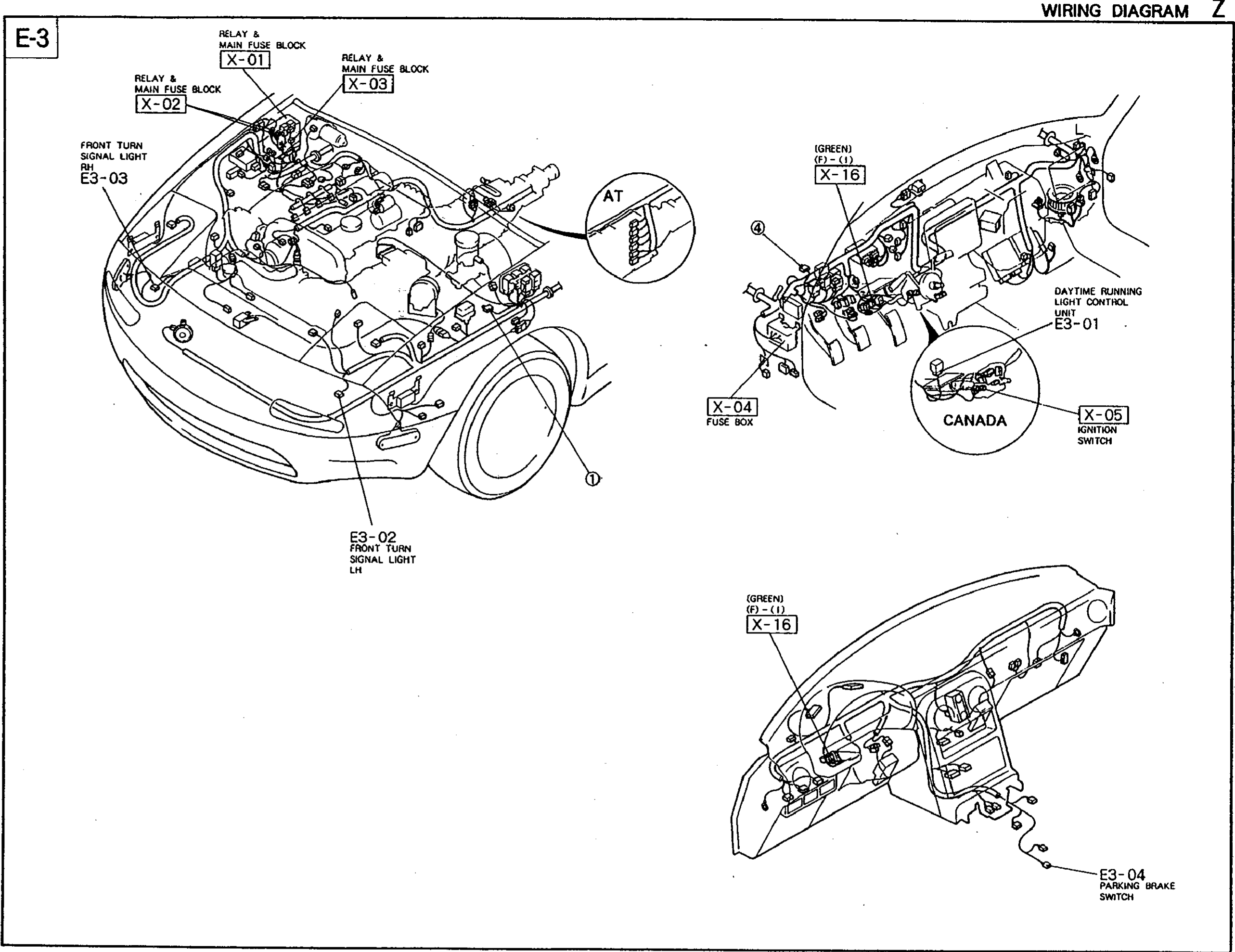

Component-location illustration (label E-3) for the Canada-spec daytime running light control system schematic on Z-50. The CANADA-marked highlight identifies the daytime running light control unit E3-01 specific to this market.
Component LocationFig. fig1

Locations of the Canada DRL system components.

Component-location illustration (label E-3) for the Canada-spec daytime running light control system schematic on Z-50. Left half shows engine bay with X-02/X-01/X-03 relay & main fuse block, AT inset connector, E3-03 FRONT TURN SIGNAL LIGHT RH callout near the right front fender, and E3-02 FRONT TURN SIGNAL LIGHT LH near the left front fender. Right half (instrument panel area) shows X-16 (GREEN) inline connector at top, X-04 FUSE BOX, and a CANADA-circled callout near E3-01 DAYTIME RUNNING LIGHT CONTROL UNIT, plus X-05 IGNITION SWITCH. Bottom-right view shows the lower dash with X-16 (GREEN) and E3-04 PARKING BRAKE SWITCH.
1X-01 / X-02 / X-03(engine bay, relay & main fuse block)
2E3-02(engine bay front LH, front turn signal light LH)
3E3-03(engine bay front RH, front turn signal light RH)
4X-04(instrument panel, fuse box)
5X-16(instrument panel, green inline connectors (two locations))
6E3-01(instrument panel, daytime running light control unit (Canada-spec))
7X-05(instrument panel, ignition switch)
8E3-04(instrument panel (lower dash), parking brake switch)
