Federal & California Headlights / Front Fog Lights / Headlight Retractor Motor — Component Location
Z-47wiring diagramFederal & California (US) market component location.

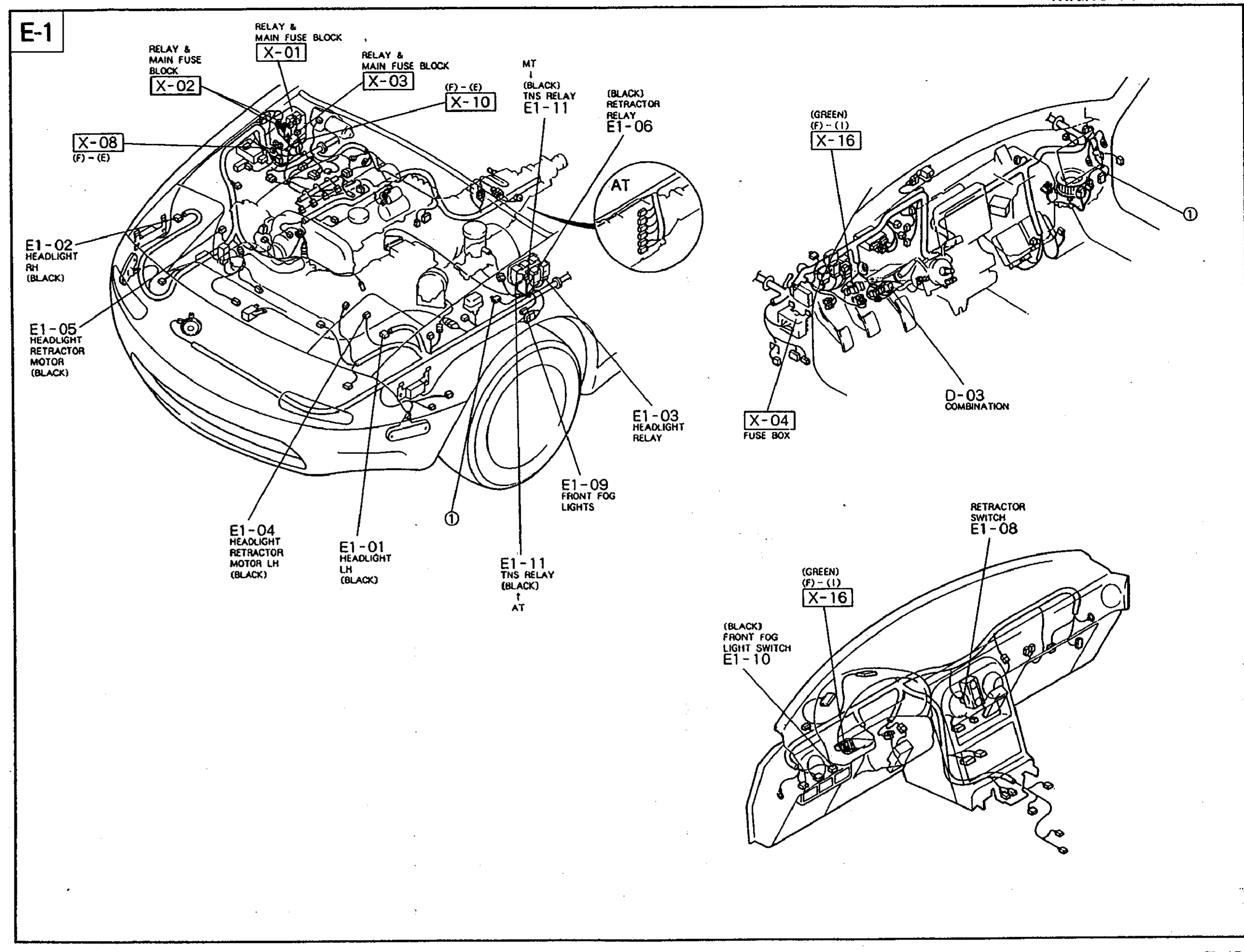

Component-location illustration (label E-1) for the Federal & California headlights / front fog lights / headlight retractor motor schematic on Z-46. Shows physical placement of connectors and switches in the engine bay (left) and instrument panel area (right).
Component LocationFig. fig1
Locations of Federal/California headlights, fog lights, and retractor system components.
1X-01 / X-02 / X-03(engine bay, relay & main fuse block)
2X-08(engine bay, M/T connector)
3X-10(engine bay, A/T connector)
4E1-11(engine bay, TNS relay (black))
5E1-06(engine bay, retractor relay (black))
6E1-01 / E1-02(engine bay, headlights LH & RH (black))
7E1-04 / E1-05(engine bay, headlight retractor motors LH & RH (black))
8E1-09(engine bay, front fog lights (option))
9E1-03(engine bay, headlight relay)
10X-16(instrument panel, green inline connector)
11X-04(instrument panel, fuse box)
12D-03(instrument panel, combination switch)
13E1-08(instrument panel, retractor switch)
14E1-10(instrument panel, front fog light switch (black))
