Mazda MX-5 NA silhouetteMX-5 NA

Illumination Lamps Harness Layout (E-5)

Z-55wiring diagram

Includes a CANADA-specific dash sub-harness branch.

Continued from Z-54

E-5 Illumination Lamps Harness Layout

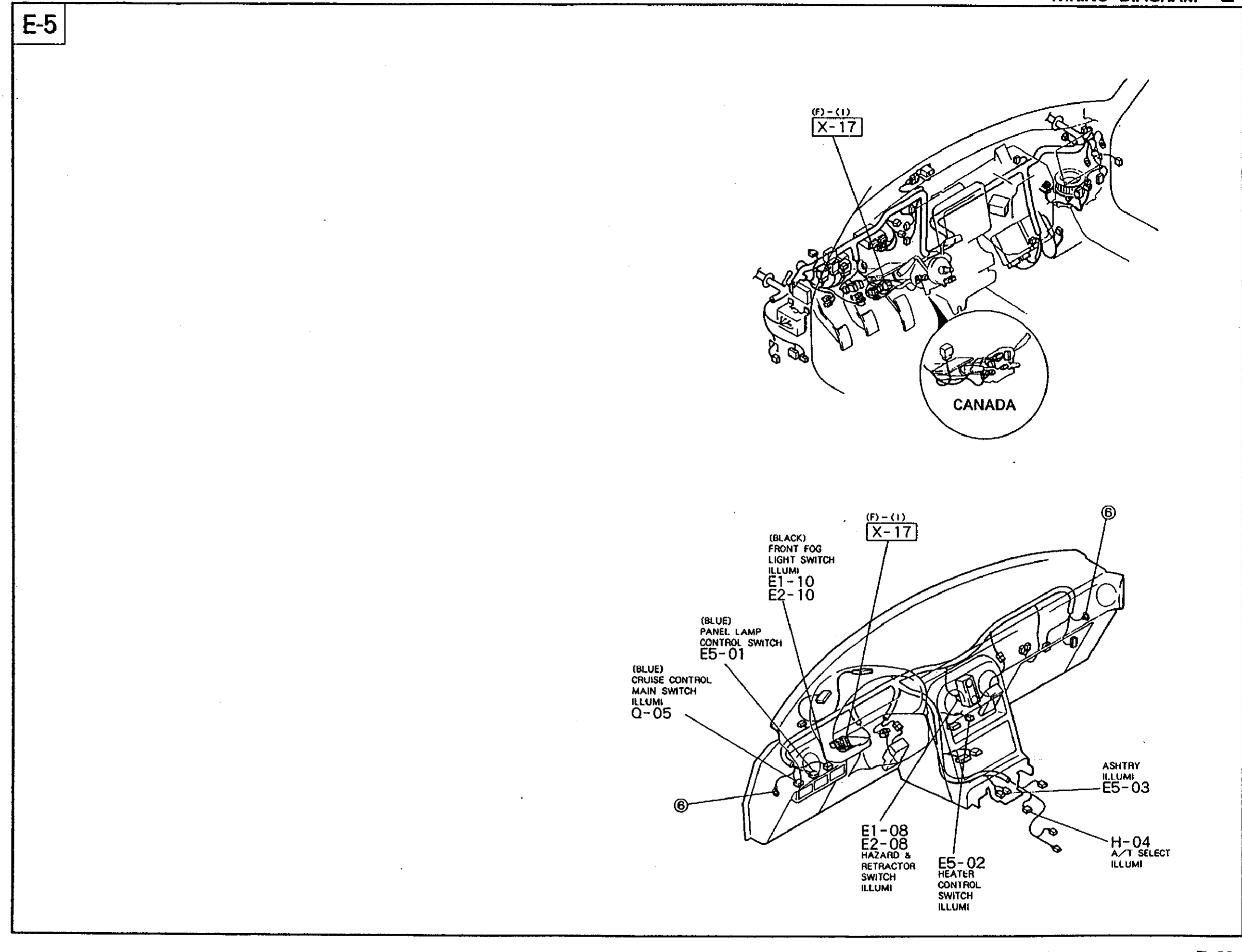

Component LocationFig. fig1

Locations of E-5 (illumination lamps) harness connectors on the dash and centre console.

Component location diagram for the E-5 (illumination lamps) harness. Top half: full dash harness laid out flat behind the instrument panel, with the X-17 in-line connector and a (7)-(1) ground annotation, plus a CANADA balloon showing the Canada-specific dash sub-harness. Bottom half: dash / centre stack view from the driver side, identifying the locations of FRONT FOG LIGHT SWITCH (E1-10/E2-10, BLACK) marked (7)-(1) X-17, PANEL LAMP CONTROL SWITCH (E5-01, BLUE), CRUISE CONTROL MAIN SWITCH ILLUMI (Q-05, BLUE), HAZARD & RETRACTOR SWITCH ILLUMI (E1-08/E2-08), HEATER CONTROL SWITCH ILLUMI (E5-02), ASHTRAY ILLUMI (E5-03), and A/T SELECT ILLUMI (H-04).
1E1-08 / E2-08(Hazard & retractor switch illumination)
2E1-10 / E2-10(Front fog light switch (BLACK))
3E5-01(Panel lamp control switch (BLUE))
4E5-02(Heater control switch illumination)
5E5-03(Ashtray illumination)
6H-04(A/T select illumination)
7Q-05(Cruise control main switch illumination (BLUE))
8X-17(In-line connector on dash harness, (7)-(1))
