WIRING DIAGRAM - Section I Component Locations (Cigar Lighter / Interior Lamps)

Z-69wiring diagram

Canada-spec Ignition Switch X-05 callout included.

Continued from Z-68

Section I Component Locations

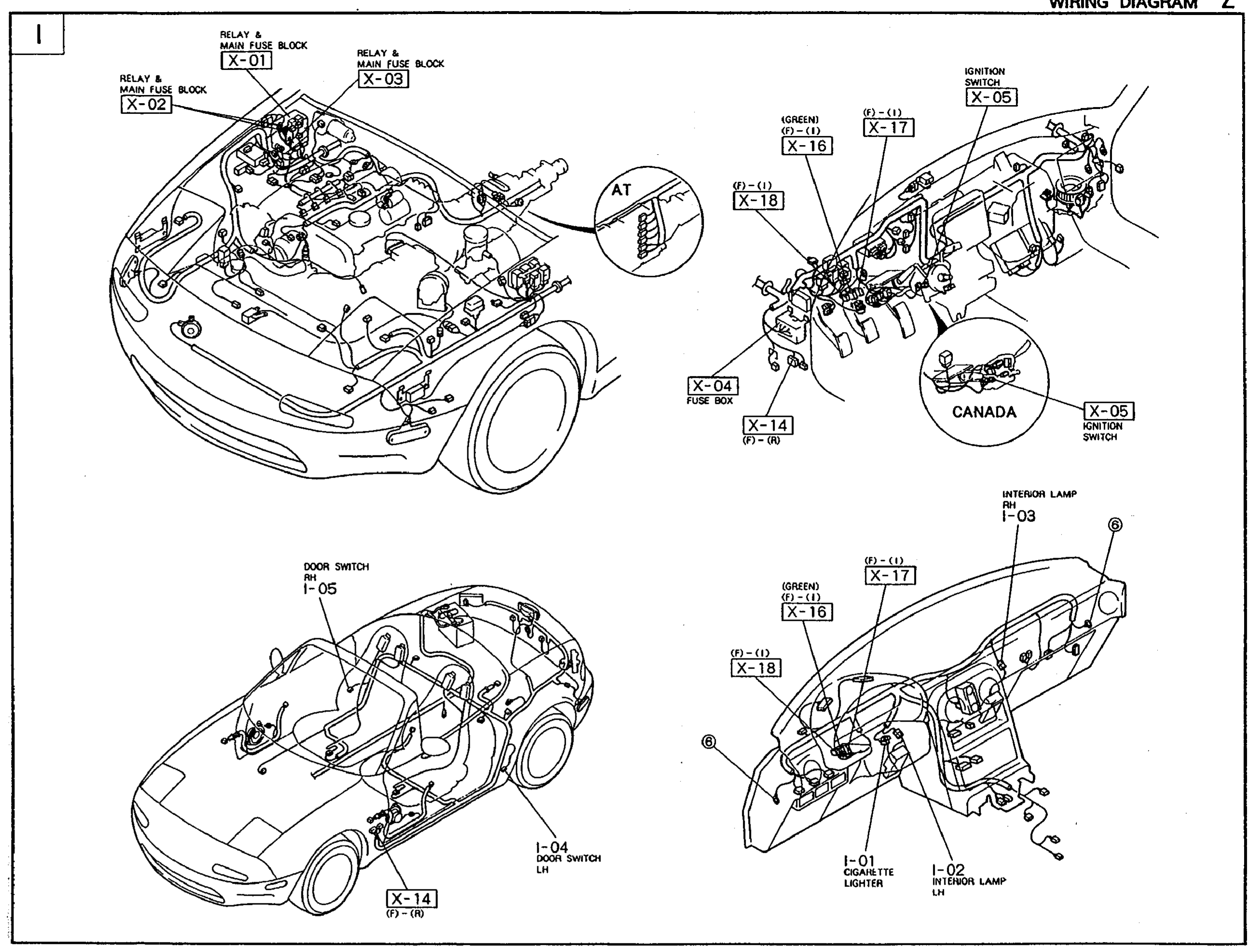

Component LocationFig. fig1

Four-view component-location diagram (engine bay, firewall, cabin/door, instrument panel) for the Cigar Lighter and Interior Lamps circuit on the 1990 Mazda MX-5 Miata.

Section I (Cigar Lighter / Interior Lamps) component-location diagram with four views. Top-left: engine bay view with Relay & Main Fuse Block X-01/X-02/X-03 and an 'AT' label. Top-right: passenger-compartment firewall area with Fuse Box X-04, X-14, X-16 (GREEN), X-17, X-18, Ignition Switch X-05, X-19, and a Canada-specific X-05 Ignition Switch inset. Bottom-left: cabin/door view with Door Switch RH (I-05), Door Switch LH (I-04), and connector X-14. Bottom-right: instrument-panel view with X-16 (GREEN), X-17, X-18, Cigarette Lighter (I-01), Interior Lamp LH (I-02), and Interior Lamp RH (I-03). Top-right banner reads 'WIRING DIAGRAM Z'; section indicator 'I' top-left.
1X-01(Engine bay - Relay & Main Fuse Block)
2X-02(Engine bay - Relay & Main Fuse Block)
3X-03(Engine bay - Relay & Main Fuse Block)
4X-04(Firewall - Fuse Box)
5X-05(Steering column - Ignition Switch (incl. Canada variant))
6X-14(Door harness - Connector)
7X-16(Dash - Connector (Green))
8X-17(Dash - Connector)
9X-18(Dash - Connector)
10I-01(Instrument panel - Cigarette Lighter)
11I-02(Cabin LH - Interior Lamp)
12I-03(Cabin RH - Interior Lamp)
13I-04(Door LH - Door Switch)
14I-05(Door RH - Door Switch)
