Wiring Harness Layout (F-2)
Z-59wiring diagramCANADA-spec layout drawing. Pairs with the F-2 schematic on Z-58.
F-2 Harness Component Locations

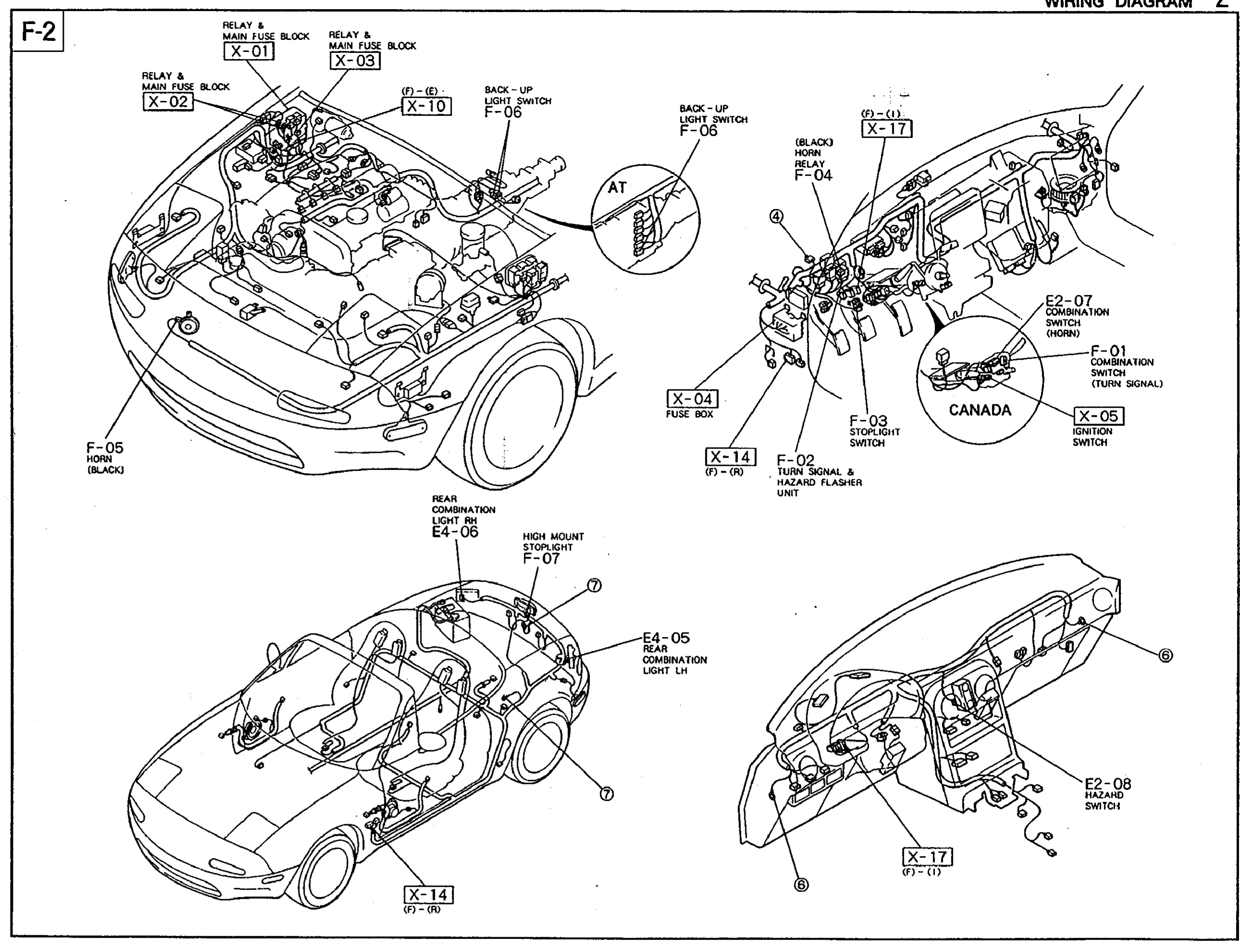

Component LocationFig. fig1
F-2 (Canada) harness component locations across engine bay, body, and dash.
1X-01 / X-02 / X-03(Relay & main fuse block (engine bay))
2X-04(Fuse box (driver kick panel))
3X-05(Ignition switch)
4X-10((7)-(2) in-line connector for back-up light switch (A/T))
5X-14(Ground point (7)-(9), dash and rear floor)
6X-17(In-line connector (7)-(1) on dash harness)
7F-01(Combination switch (turn signal), column)
8E2-07(Combination switch (horn), column)
9E2-08(Hazard switch, dash centre)
10F-02(Turn signal & hazard flasher unit (BLACK), under dash)
11F-03(Stoplight switch, brake pedal bracket)
12F-04(Horn relay (BLACK), relay & main fuse block)
13F-05 (M/T)(Back-up light switch on transmission)
14F-05 (engine bay)(Horn (BLACK))
15F-06 (A/T)(Back-up light switch on A/T)
16F-07(High-mount stoplight, decklid)
17E4-05 / E4-06(Rear combination lights LH/RH)
