Canada Headlights / Front Fog Lights / Headlight Retractor Motor — Component Location

Z-49wiring diagram

Canada market component location.

Continued from Z-48

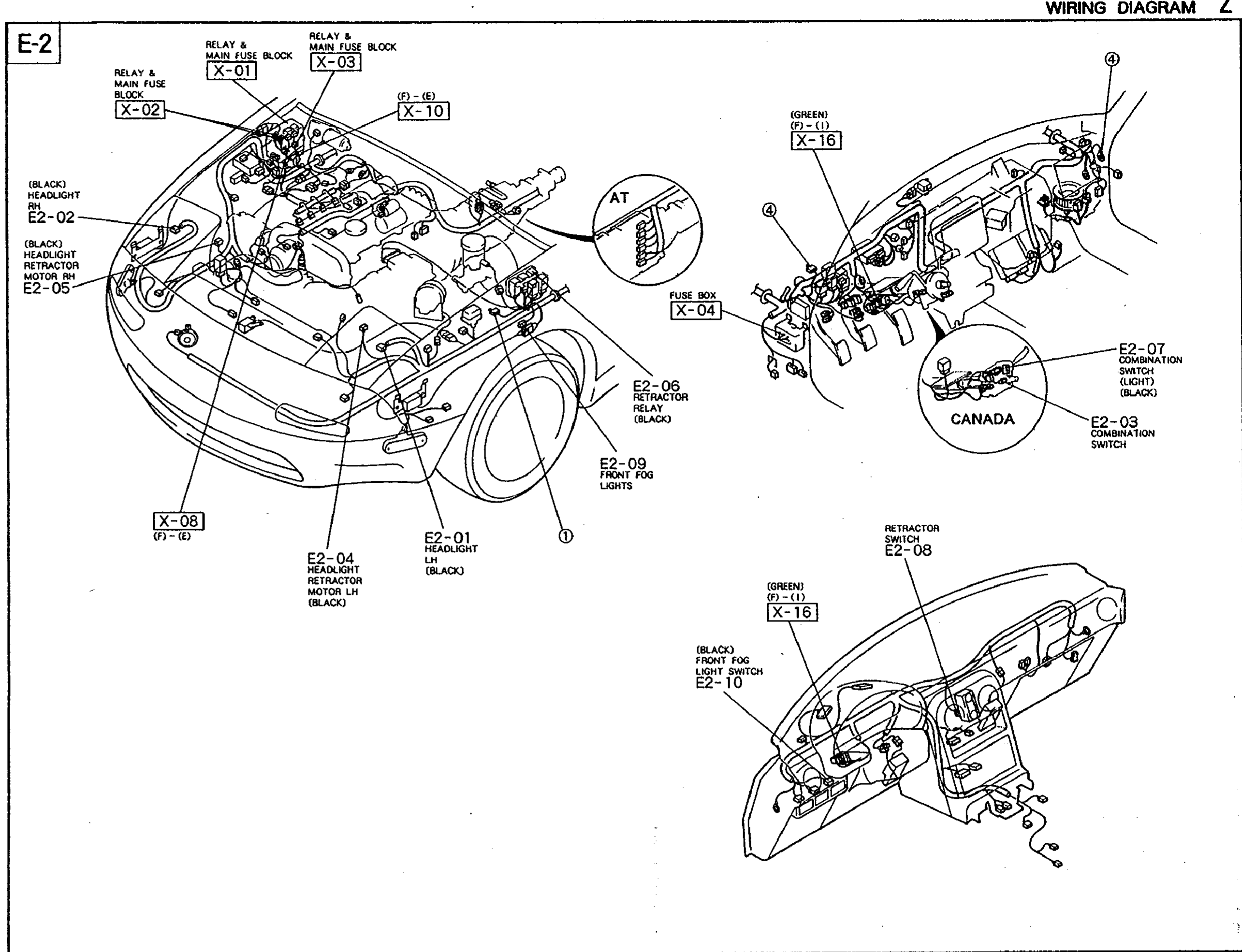

Component-location illustration (label E-2) for the Canada-spec headlights/fog lights/retractor motor schematic on Z-48. The CANADA-marked highlight identifies the combination switch E2-03 specific to this market.
Component LocationFig. fig1

Locations of the Canada headlights/fog lights/retractor motor system components.

Component-location illustration (label E-2) for the Canada-spec headlights / front fog lights / headlight retractor motor schematic on Z-48. Left half shows engine bay with X-02/X-01/X-03 relay & main fuse block, X-08 (M/T), X-10 (A/T) connectors, E2-02 (BLACK) HEADLIGHT RH, E2-05 HEADLIGHT RETRACTOR MOTOR (black), E2-04 HEADLIGHT RETRACTOR MOTOR LH (BLACK), E2-01 HEADLIGHT LH (BLACK), E2-09 FRONT FOG LIGHTS, AT inset, E2-06 RETRACTOR RELAY (BLACK). Right half (dashboard) shows X-04 FUSE BOX, X-16 (GREEN) inline connector, E2-07 COMBINATION SWITCH (LIGHT) (BLACK), and a CANADA-circled E2-03 COMBINATION SWITCH near the lower instrument panel pillar; lower-right view shows the lower dash with X-16 (GREEN), RETRACTOR SWITCH E2-08, and FRONT FOG LIGHT SWITCH E2-10 (BLACK).
1X-01 / X-02 / X-03(engine bay, relay & main fuse block)
2X-08(engine bay, M/T connector)
3X-10(engine bay, A/T connector)
4E2-01 / E2-02(engine bay, headlights LH & RH (black))
5E2-04 / E2-05(engine bay, headlight retractor motors LH & RH (black))
6E2-06(engine bay, retractor relay (black))
7E2-09(engine bay, front fog lights)
8X-04(instrument panel, fuse box)
9X-16(instrument panel, green inline connectors (two locations))
10E2-07(instrument panel, combination switch (light) (black))
11E2-03(instrument panel, combination switch — Canada-spec)
12E2-08(instrument panel, retractor switch)
13E2-10(instrument panel, front fog light switch (black))
