FUEL SYSTEM

F-105prose procedure
Continued from F-104
Parts DiagramFig. fig1
Parts diagram
#Part NameNotes
1Fuel filler hoses—
2Fuel hoses—
3Evaporative hoses—
4Fuel pump connector—
5Fuel filter boltsRemoval Note .......... page F-105
6Brake pipe jointRemoval Note .......... page F-105
7Battery cableRemoval Note .......... page F-105
8Rear crossmember assemblyRemoval Note .......... page F-105
9Fuel tank unit—
10Tow-way check valve—
11Fuel vapor valve—
12Fuel tank—

Removal note

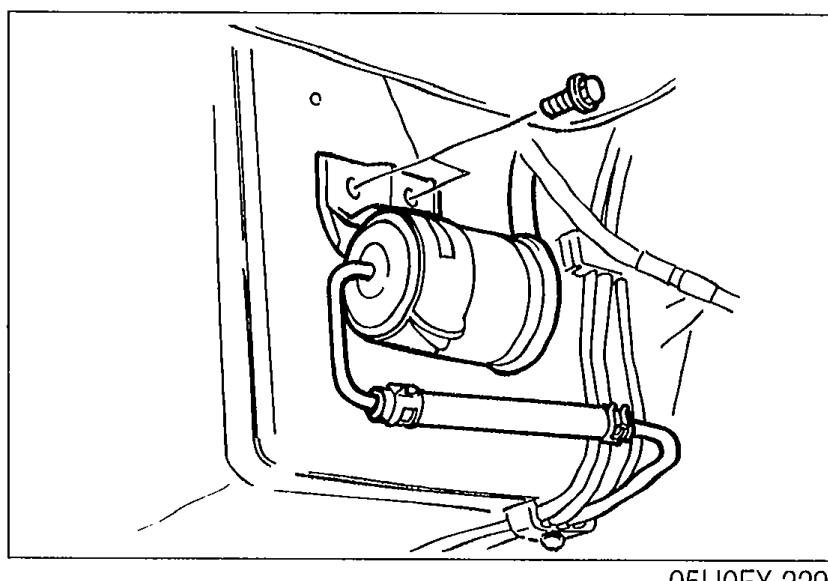

Fuel filter bolts

  1. 1
    Remove the fuel filter cover.
    Underside photograph showing the fuel filter assembly with hoses still connected — removed from its bracket.
    05U0FX-229
  2. 2
    Remove the fuel filter bolts.
  3. 3
    Remove the fuel filter with the fuel hoses still connected.

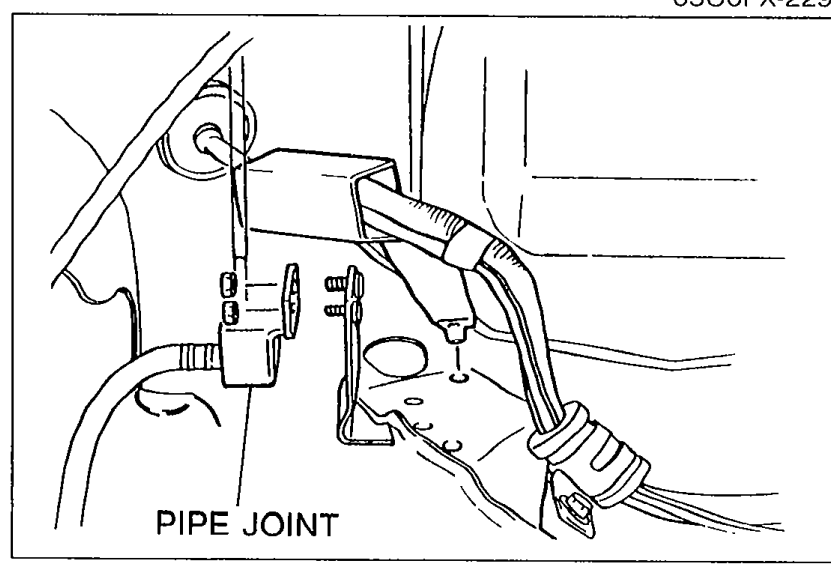

Brake pipe joint

  1. 1
    Remove the brake pipe joint nuts.
    Underside photograph showing the brake pipe joint with a callout 'PIPE JOINT' identifying the joint to be removed with the brake pipe and hose still connected.
    05U0FX-230
  2. 2
    Remove the brake pipe joint with the brake pipe and brake hose still connected.

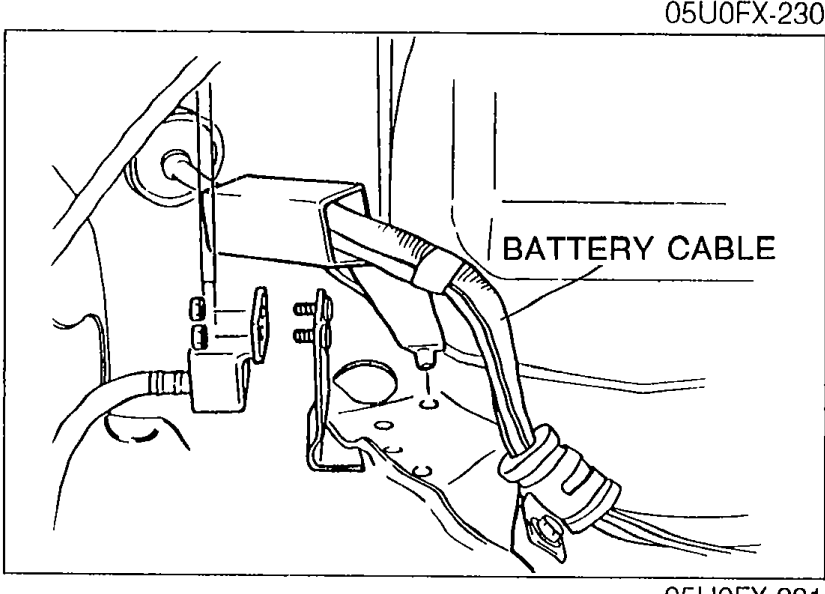

Battery cable

  1. 1
    Remove the battery cable clamp as shown in the figure.
    Underside photograph showing the battery cable clamp with the 'BATTERY CABLE' callout identifying the clamp to remove.
    05U0FX-231

Rear crossmember assembly

  1. 1
    Support the rear crossmember assembly with a transmission jack.
    Underside photograph showing a transmission jack supporting the rear crossmember assembly during removal.
    05U0FX-232
  2. 2
    Remove the rear crossmember mounting bolts and nuts.
    Do not damage the brake hose, brake pipe, or fuel hoses.
  3. 3
    Lower the rear crossmember assembly.
