SELF-DIAGNOSIS FUNCTION
F-89spec tableSWITCH MONITOR FUNCTION
Inspection Procedure
Switch Monitor Function — Self-Diagnosis Checker (Monitor lamp)
Clutch switch
Light ONPedal released
Light OFFPedal depressed
RemarkIn gear
Neutral switch
Light ONIn gear
Light OFFNeutral
RemarkClutch pedal released
Idle terminal
Light ONPedal depressed (not fully)
Light OFFPedal released
Remark—
Pow. terminal
Light ONPedal depressed (not fully)
Light OFFPedal fully depressed
Remark—
Stoplight switch
Light ONPedal depressed
Light OFFPedal released
Remark—
Headlight switch
Light ONON
Light OFFOFF
Remark—
Blower switch
Light ONON
Light OFFOFF
RemarkBlower motor position: "medium" "high" or "super high" position
A/C switch
Light ONON
Light OFFOFF
Remark—
Water thermoswitch
Light ONFan operating
Light OFFFan not operating
RemarkFan speed control: Low position
Switch Monitor Inspection

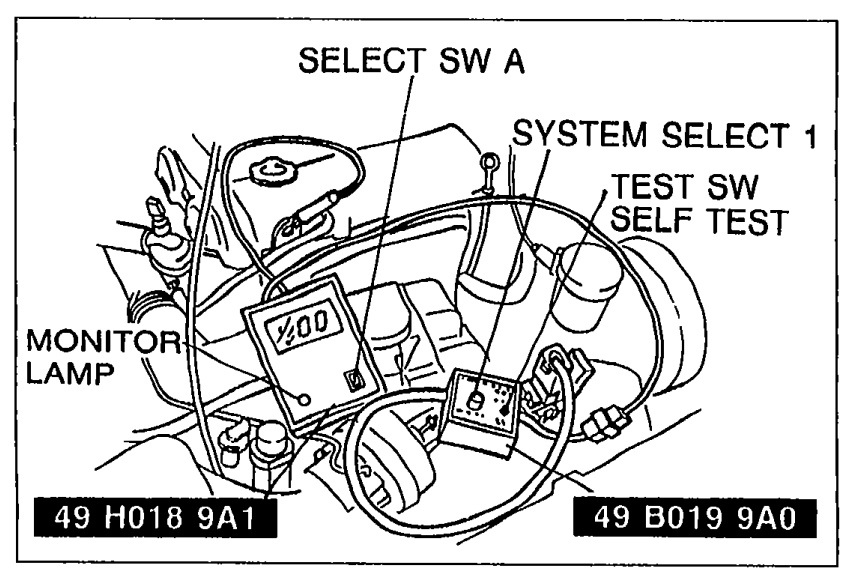

- 1Connect the SSTs to the diagnosis connector as shown.
05U0FX-096 - 2Turn the ignition switch ON. Check if the monitor lamp illuminates when each switch is made to function as described below.If either of the switches remain activated, the monitor lamp will be illuminated.Do not start the engine.
