FUEL SYSTEM

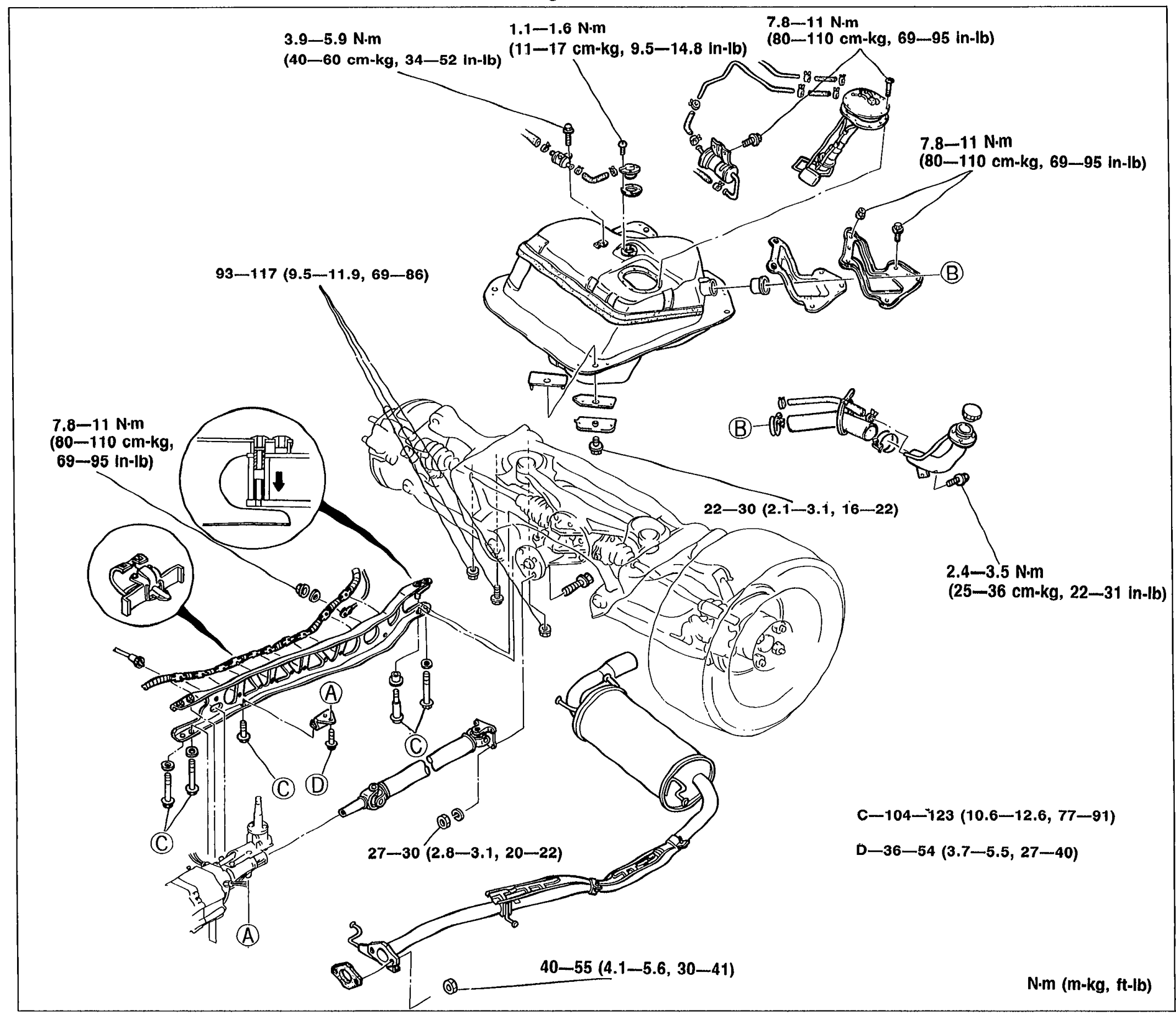

F-104parts diagramFUEL TANK
CAUTION
Obtain the code number and deactivate the audio anti-theft system before disconnecting the battery. (Refer to page T-113.)
Removal / Inspection / Installation
WARNING
Before performing the following operation, release the fuel pressure from the fuel system to reduce the possibility of injury or fire. (Refer to page F-101.)
When removing the fuel tank, keep sparks, cigarettes, and open flames away from the tank.
Before repairing the fuel tank, clean it thoroughly with steam to remove all explosive gas.
NOTE
Drain the fuel from the fuel tank before removing the tank.
Fuel Tank Removal / Inspection / Installation
- 1Disconnect the negative battery terminal.
- 2Remove the main silenser. (Refer to page F-115.)
- 3Remove the power plant frame. (Refer to page J-11.)
- 4Remove in the order shown in the figure, referring to Removal Note.
05U0FX-139 - 5Install in the reverse order of removal, referring to Installation Note.
