FUEL SYSTEM

F-114prose procedure
Continued from F-113

Installation

Install in the reverse order of removal, referring to Installation Note.
Tightening torque (Delivery pipe)
186 - 245N·m

Installation note

Injector installation note

  1. 1
    Use new injector O-rings.

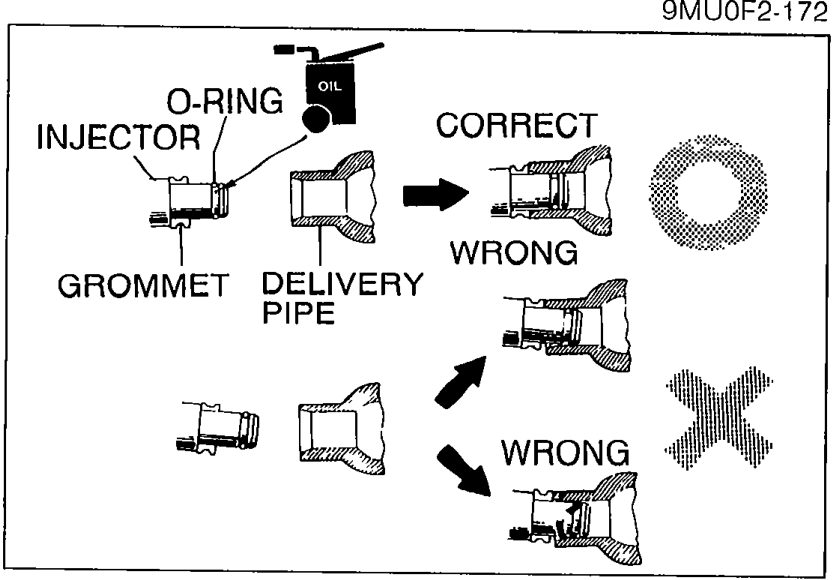

    Diagram showing correct vs. wrong assembly of injector with O-ring, grommet and delivery pipe. Top row: O-RING and INJECTOR fit into the delivery pipe correctly (marked CORRECT with a check). Middle and bottom rows show GROMMET / DELIVERY PIPE assemblies marked WRONG with X. A circular O-ring detail is shown.
    05U0FX-177
  2. 2
    Apply a small amount of clean engine oil to the O-rings before installing.
  3. 3
    Use new injector insulators.

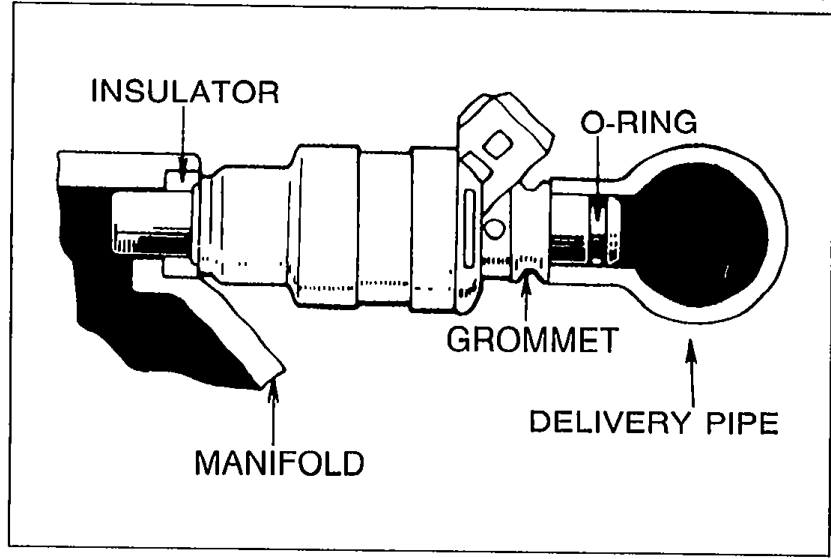

    Cross-section diagram of an installed injector showing INSULATOR seated in MANIFOLD, GROMMET around the injector, and O-RING sealing to the DELIVERY PIPE.
    05U0FX-238
  4. 4
    Install the injectors and new injector insulators.
