CONTROL SYSTEM - Crank Angle Sensor

F-134prose procedure
Continued from F-133

CRANK ANGLE SENSOR

Removal

Crank Angle Sensor Removal

  1. 1
    Disconnect the crank angle sensor connector.

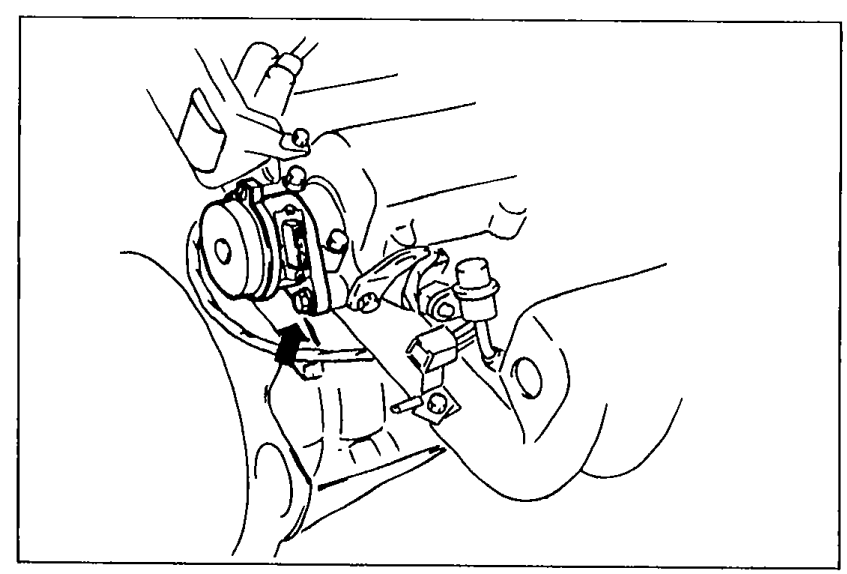

    Engine bay view showing crank angle sensor mounted on the engine with its connector visible. Used to illustrate Removal step.
    05U0FX-203
  2. 2
    Remove the crank angle sensor.

Inspection

Crank Angle Sensor Inspection

  1. 1
    Visually check the crank angle sensor for damage.

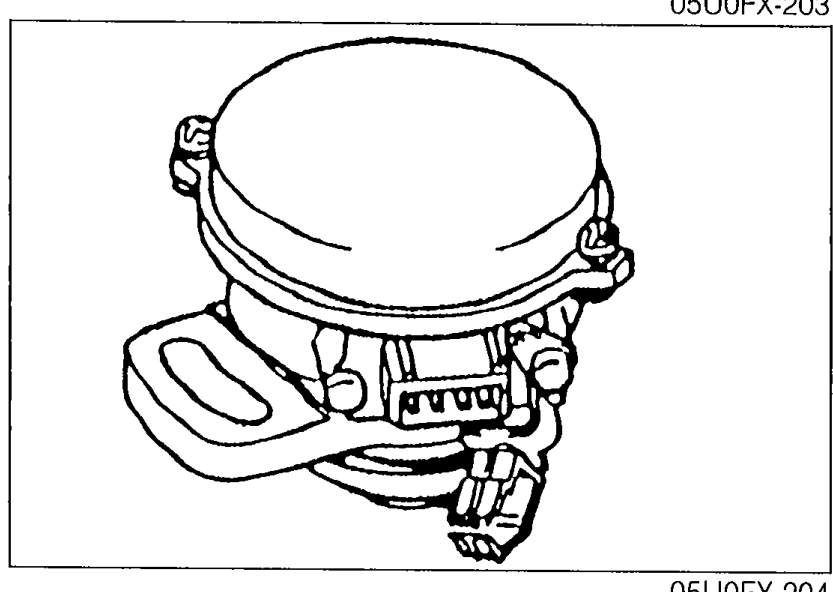

    Crank angle sensor removed from engine, top-down view showing the round body and mounting bracket. Used to illustrate Inspection step.
    05U0FX-204
  2. 2
    Replace if necessary.

Installation

Crank Angle Sensor Installation

  1. 1
    Apply grease to the new O-ring and the blade.

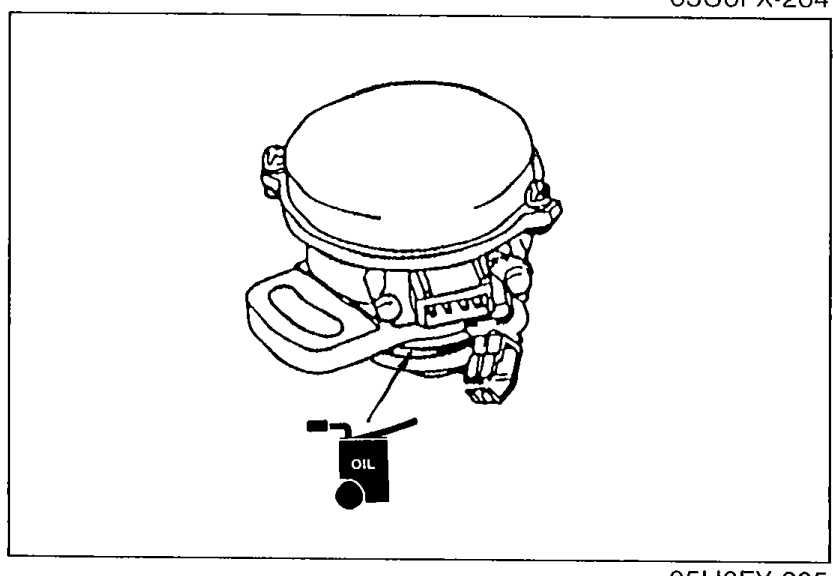

    Crank angle sensor close-up with O-ring and blade visible at bottom — apply grease here. Illustrates Installation step 1.
    05U0FX-205
  2. 2
    Install the crank angle sensor.
    Tightening torque: 19—27 N·m (1.9—2.6 m-kg, 14—20 ft-lb)

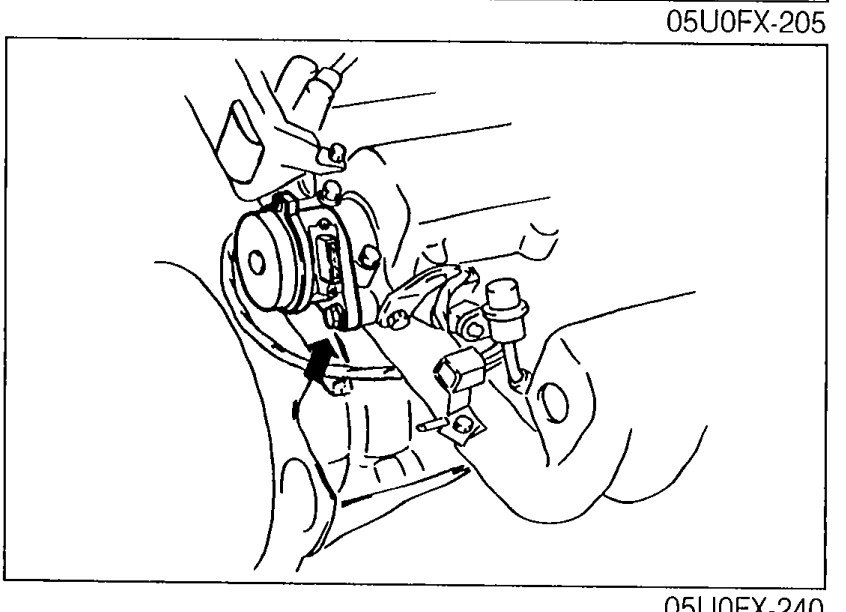

    Crank angle sensor reinstalled on the engine, showing final mounting position. Illustrates Installation step 2.
    05U0FX-240
  3. 3
    Connect the crank angle sensor connector.
  4. 4
    Adjust the ignition timing. (Refer to page F-75.)
Crank angle sensor mounting
19-27N·m
