INTAKE AIR SYSTEM

F-94prose procedure

THROTTLE BODY

CAUTION

Obtain the code number and deactivate the audio anti-theft system before disconnecting the battery. (Refer to page T-113.)

1
Remove the negative battery terminal.
2

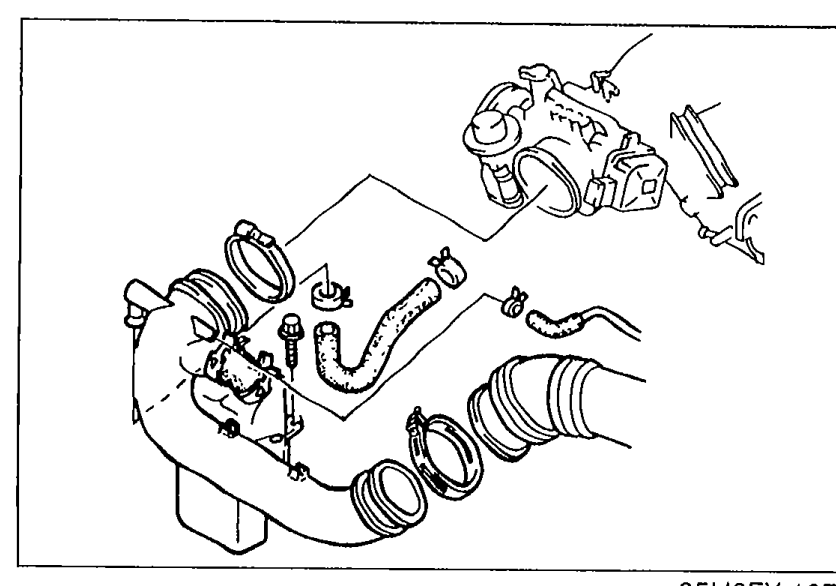

Remove the air pipe.
05U0FX-107
3
Remove the accelerator cable from the throttle lever.
Before disconnecting the water hoses, drain the engine coolant.
4

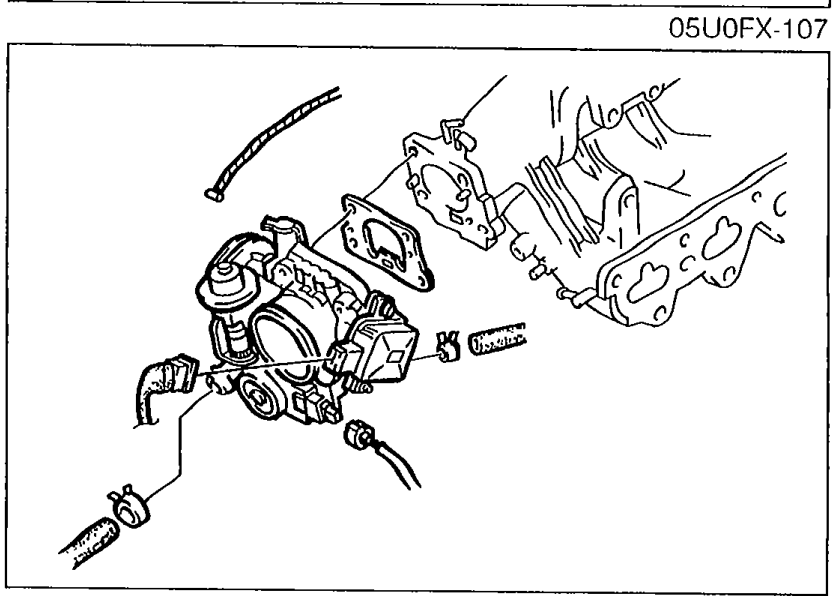

Disconnect the water hoses.
5
Disconnect the connectors for the ISC valve and the throttle sensor.
05U0FX-108
6
Remove the throttle body.

1

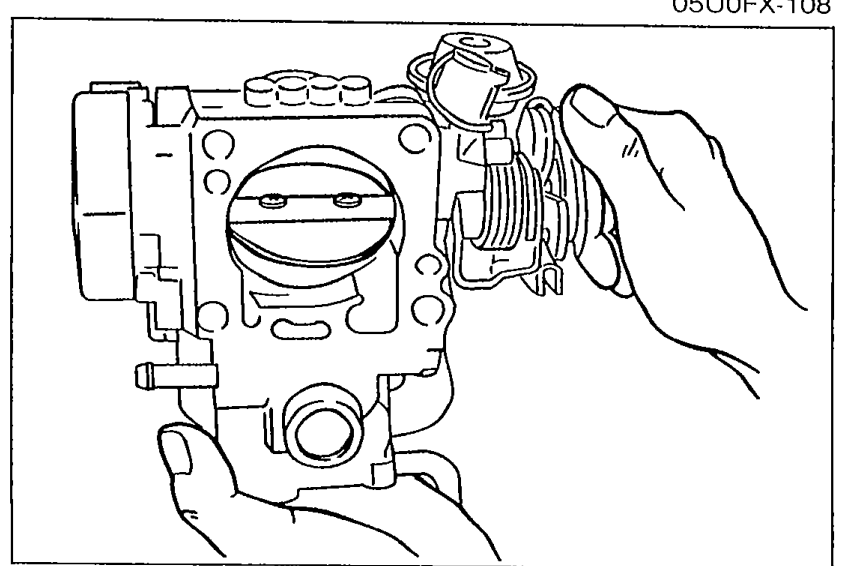

Verify that the throttle valve is fully closed.
05U0FX-109
2
Verify that the throttle valve moves smoothly when the throttle lever is moved from fully closed to fully open.
3
Replace the throttle body if necessary.

CAUTION

Do not remove the thin seal coating from the throttle valve or bore.

Install in the reverse order of removal.

NOTE

Use a new mounting gasket.

Specification	Value
	≈186 - 245N·m

186 - 245N·m
