FUEL PUMP
F-107prose procedureCAUTION
Obtain the code number and deactivate the audio anti-theft system before disconnecting the battery. (Refer to page T-113.)
Inspection
Fuel pump operation

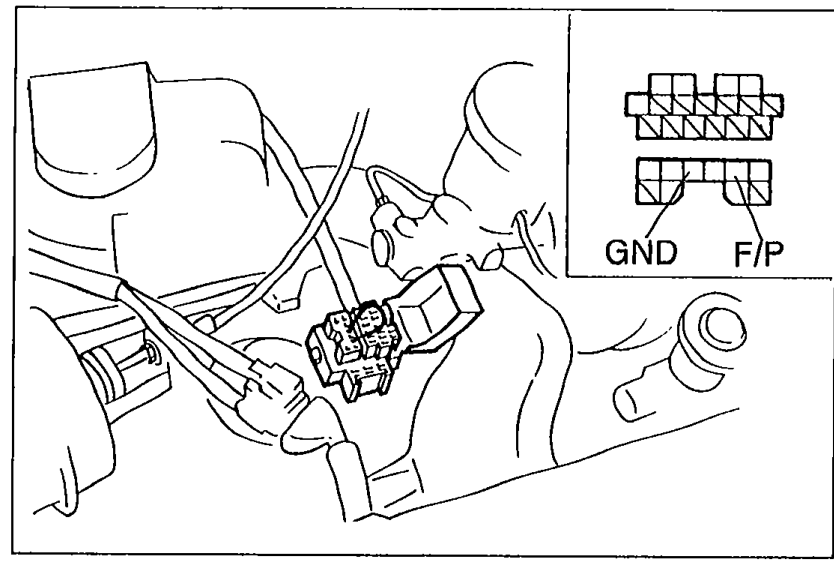

- 1Connect the diagnosis connector terminals F/P and GND with a jumper wire.
05U0FX-144 - 2Remove the fuel filler cap.
- 3Turn the ignition switch ON.
- 4Listen for operational sound of the fuel pump at the filler inlet.
05U0FX-145 - 5Install the fuel filler cap.

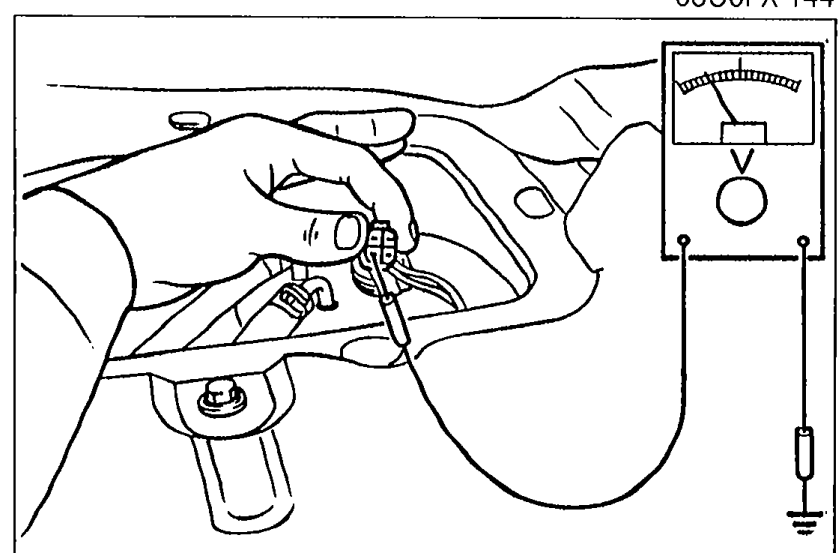

- 6If no sound was heard, measure the voltage between the fuel pump connector wire to ground.Voltage: 12V
05U0FX-146 - 7If not correct, check the circuit opening relay and its circuits. (Refer to page F-109.)

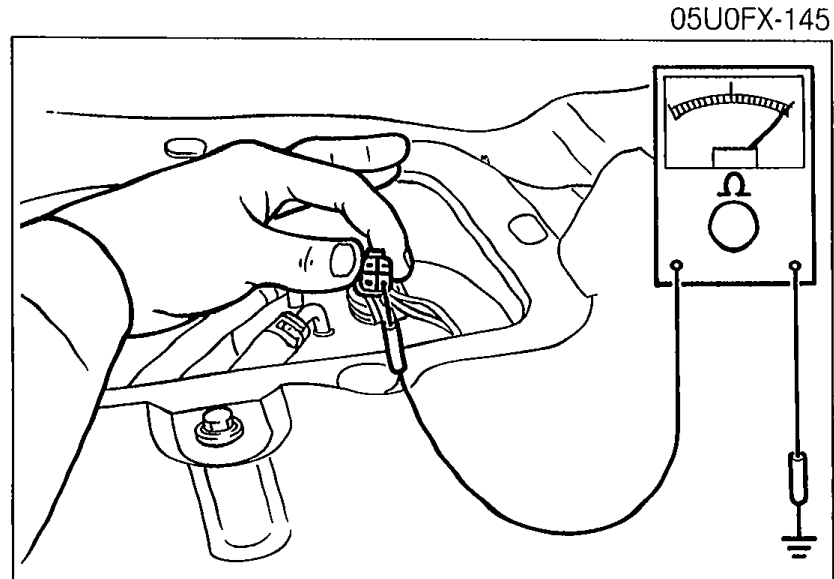

- 8If the voltage is normal, check for continuity between fuel pump connector (B) and a ground.
- 9If there is continuity, replace the fuel pump.
- 10If no continuity, repair the ground circuit.
| Specification | Value |
|---|---|
| Voltagefuel pump connector wire to ground | 12V |
Voltagefuel pump connector wire to ground
12V
Hold pressure
Perform this inspection if the fuel pressure hold inspection is not as specified. (Refer to page F-102.)
WARNING
Before performing the following operation, release the fuel pressure from the fuel system to reduce the possibility of injury or fire. (Refer to page F-101.)
Hold pressure

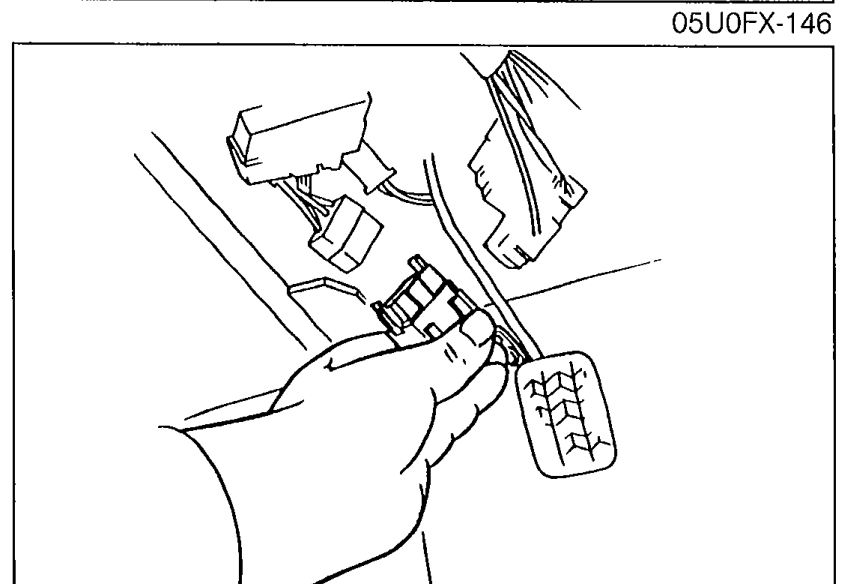

- 1Disconnect the negative battery terminal.

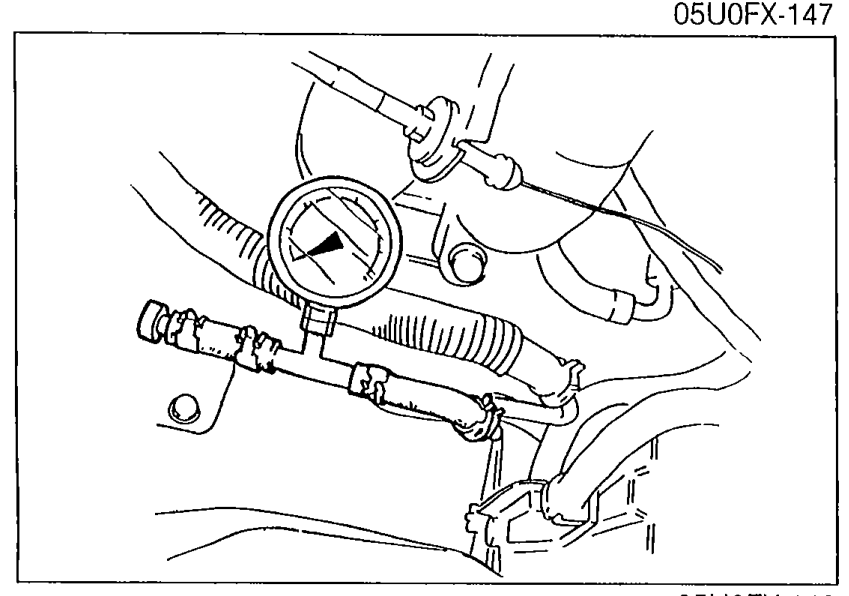

05U0FX-147 - 2Connect a fuel pressure gauge to the fuel main pipe and plug the outlet of the fuel pressure gauge as shown. (Install clamps as shown.)
05U0FX-148 - 3Connect the negative battery terminal.
