EVAPORATIVE EMISSION CONTROL SYSTEM

F-120prose procedure
Continued from F-119

Fuel Vapor Valve Inspection (continued)

  1. 3

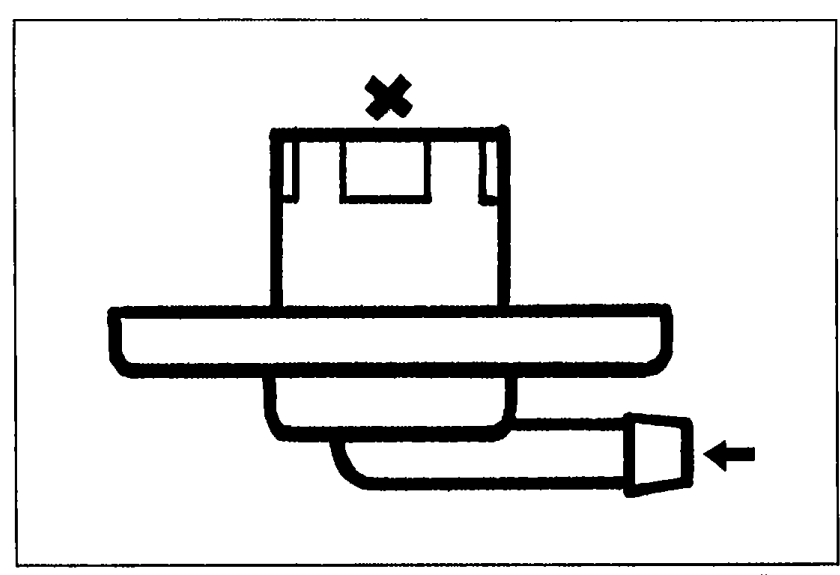

    Turn the valve over and blow through the valve. Verify that no air flows.
    Line drawing of the fuel vapor valve turned over with an X mark on the top opening and an arrow showing the blow-through direction at the side port — illustrates step 3 (no air should flow when the valve is inverted).
    05U0FX-188
  2. 4
    Replace the valve if necessary.

CHARCOAL CANISTER

Inspection

Visually check for damage and replace the charcoal canister if necessary.
