CONTROL SYSTEM

F-139prose procedure
Continued from F-138

Replacement

  1. 1
    Disconnect the oxygen sensor connector.

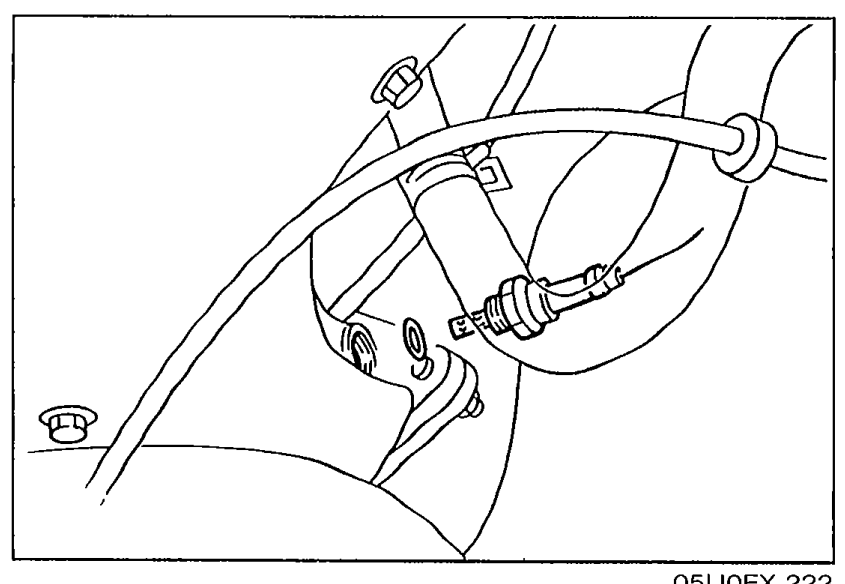

    Photo of the oxygen sensor installed in the exhaust manifold area with its electrical connector visible.
    05U0FX-222
  2. 2
    Remove the oxygen sensor.
  3. 3
    Install in the reverse order of removal.
29 - 49N·m

MAIN RELAY (FUEL INJECTOR RELAY)

Inspection

  1. 1
    Verify that the main relay clicks when turning the ignition switch OFF → ON.
  2. 2
    Apply 12V to terminal A and ground terminal B of the main relay.

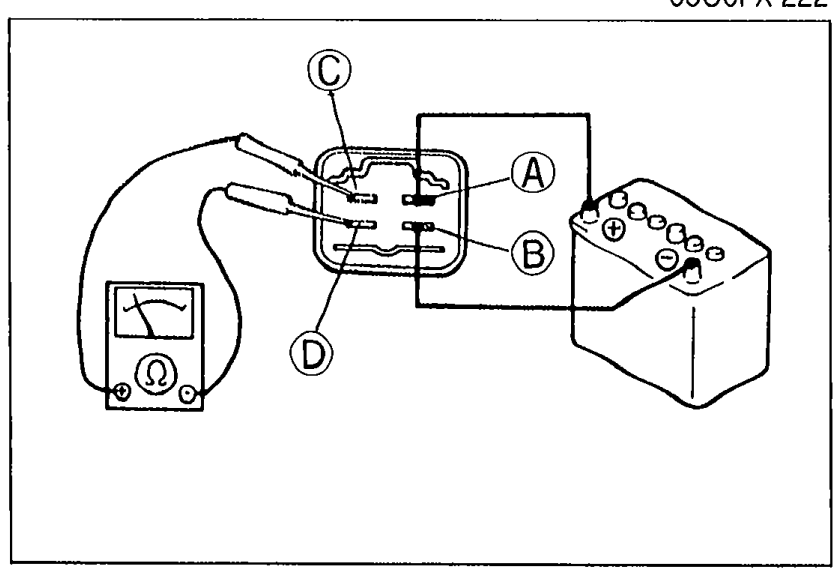

    Illustration of the main relay (fuel injector relay) with four terminals labeled A, B, C, D being tested with a battery (12V) and ohmmeter. Shows terminals A and B receiving 12V while C-D is checked for continuity.
    05U0FX-223
  3. 3
    Use an ohmmeter to check continuity of the terminals as shown.
  4. 4
    If not as specified, replace the main relay.

Main relay continuity

C—D
12V not appliedNo continuity
12V appliedContinuity

CLUTCH SWITCH

Inspection

  1. 1
    Disconnect the clutch switch connector.
  2. 2
    Connect an ohmmeter to the switch.

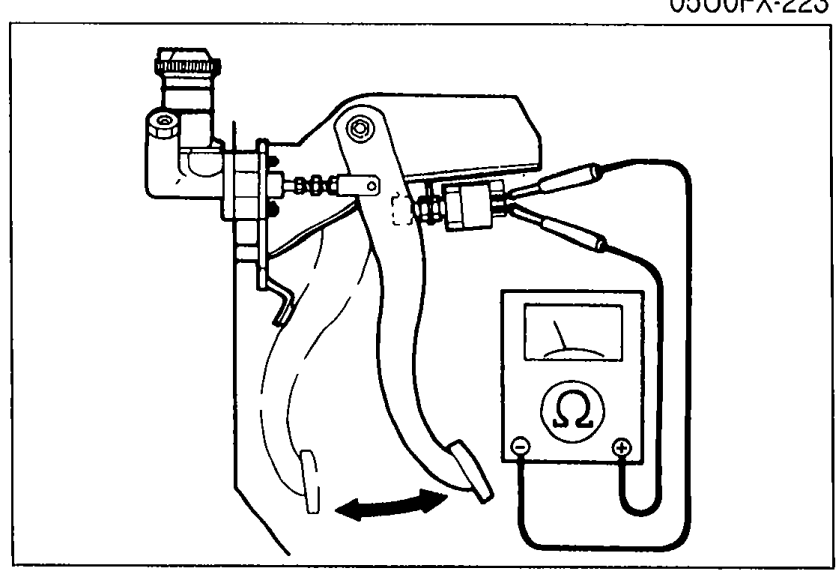

    Illustration of clutch pedal area with an ohmmeter connected to the clutch switch to check continuity when pedal is depressed/released.
    05U0FX-224
  3. 3
    Check continuity of the switch.
  4. 4
    If not as specified, replace the switch.

Clutch switch continuity

Depressed
ContinuityYes
Released
ContinuityNo

Replacement

  1. 1
    Disconnect the clutch switch connector.
  2. 2
    Loosen the locknut.
    Photo of the clutch switch installation showing the LOCKNUT for pedal-height adjustment.
    05U0FX-225
  3. 3
    Remove the clutch switch.
  4. 4
    Install in the reverse order of removal.
  5. 5
    Adjust the pedal height. (Refer to page H-5.)
