OUTLINE

F-5parts diagram
Continued from F-4

SYSTEM DIAGRAM

Component LocationFig. fig1

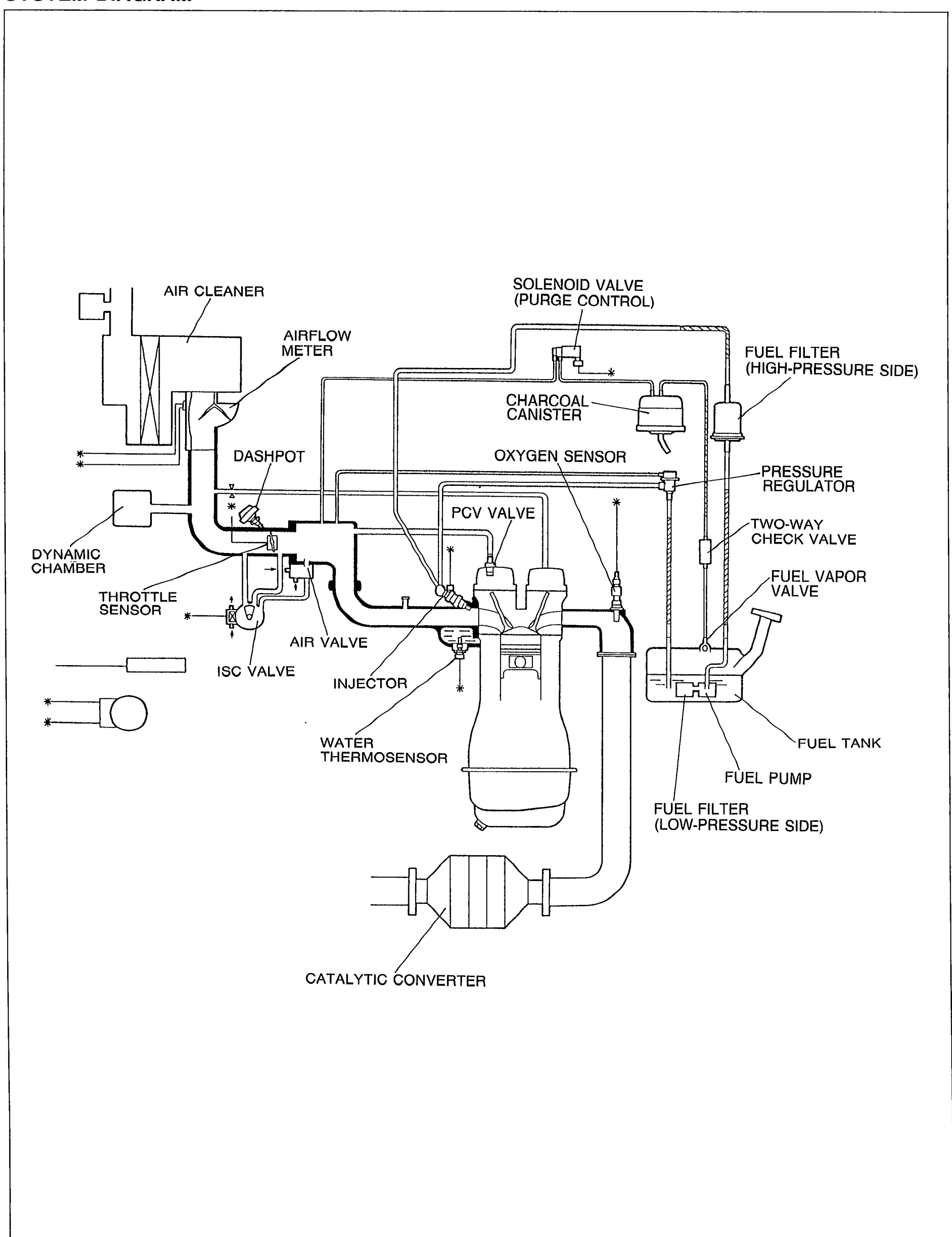

Schematic layout of all fuel and emission control system components and their interconnecting hoses and pipes.

System diagram of the fuel and emission control system. Labelled components: air cleaner, airflow meter, dynamic chamber, throttle sensor, ISC valve, dashpot, air valve, injector, water thermosensor, PCV valve, oxygen sensor, catalytic converter, solenoid valve (purge control), charcoal canister, two-way check valve, fuel vapor valve, pressure regulator, fuel filter (high-pressure side), fuel filter (low-pressure side), fuel pump, fuel tank.
05U0FX-005
1Air cleaner(upper-left)
2Airflow meter(upper-left)
3Dynamic chamber(left)
4Throttle sensor(left)
5ISC valve(left)
6Dashpot(center-upper)
7Air valve(center)
8Injector(center)
9Water thermosensor(center)
10PCV valve(center-upper)
11Oxygen sensor(center)
12Catalytic converter(bottom-center)
13Solenoid valve (Purge control)(top-center)
14Charcoal canister(top-right)
15Two-way check valve(right)
16Fuel vapor valve(right)
17Pressure regulator(right)
18Fuel filter (high-pressure side)(upper-right)
19Fuel filter (low-pressure side)(right-bottom)
20Fuel pump(right-bottom)
21Fuel tank(right)
