ENGINE TUNE-UP

F-74prose procedure

PREPARATION

1
Be sure the vehicle is on level ground.
2
Warm up the engine to normal operating temperature and stop it.
3
Wait for five minutes.
4

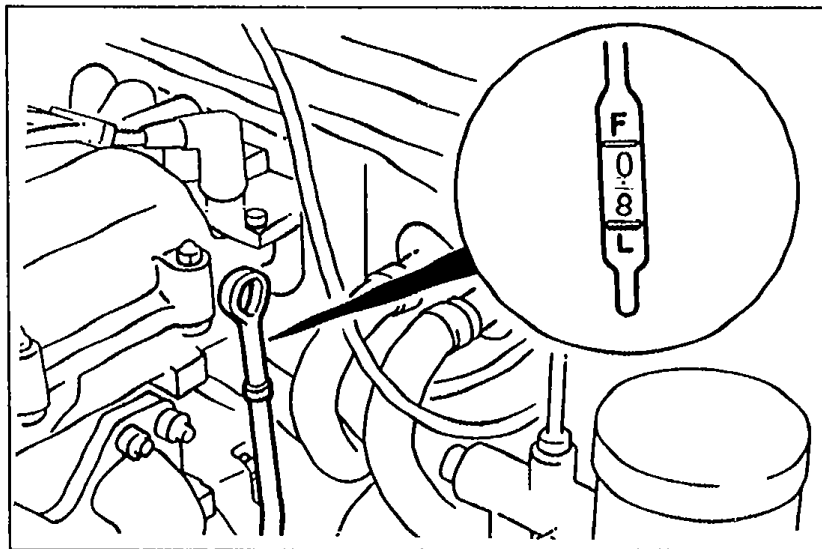

Remove the oil level gauge and check the oil level and condition.
05U0FX-053
5
Add or replace oil if necessary.
The distance between the L and F marks on the level gauge represents 0.8 liter (0.85 US qt, 0.70 Imp qt).

NOTE

The distance between the L and F marks on the level gauge represents 0.8 liter (0.85 US qt, 0.70 Imp qt).

WARNING

• Never remove the radiator cap while the radiator and engine are hot. • Wrap a thick cloth around the cap while carefully removing it.

1
Verify that the coolant level is at the bottom of the radiator filler neck.
Never remove the radiator cap while the radiator and engine are hot.
Wrap a thick cloth around the cap while carefully removing it.
2

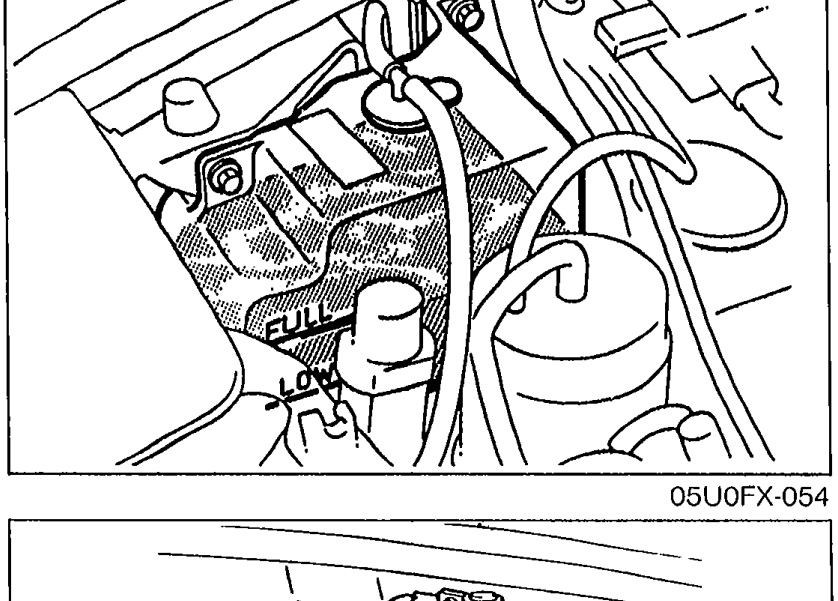

Verify that the level in the coolant reservoir is between the FULL and LOW marks. Add coolant if necessary.
05U0FX-054

1

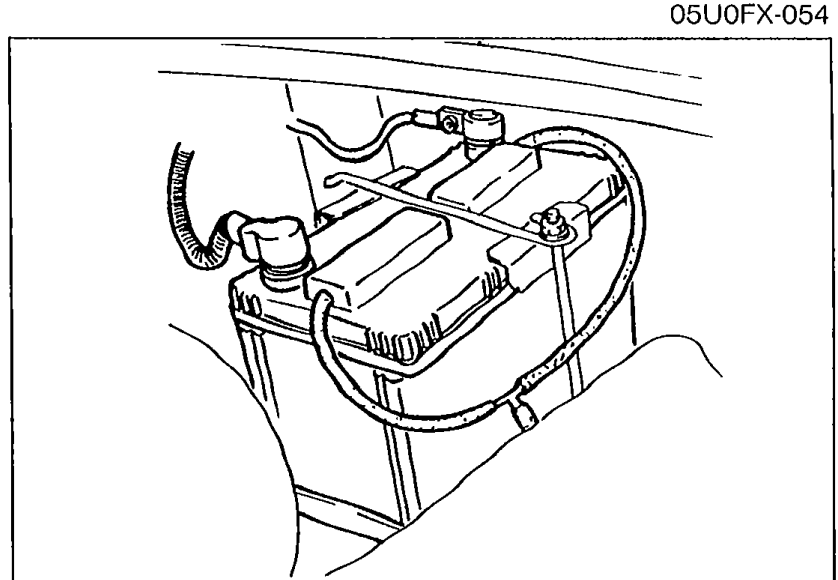

Check for loose or corroded terminals and connections.
05U0FX-055
2
Clean and tighten the connections as necessary.
3
Measure the battery voltage. If the voltage is 12.6V or less, recharge the battery. (Refer to Section G.)
05U0FX-056
