INTAKE AIR SYSTEM

F-93component photo
Continued from F-92

SYSTEM OPERATION

Inspection of Air Leakage

  1. 1
    Check for possible air leakage at the points shown and repair or replace as necessary.

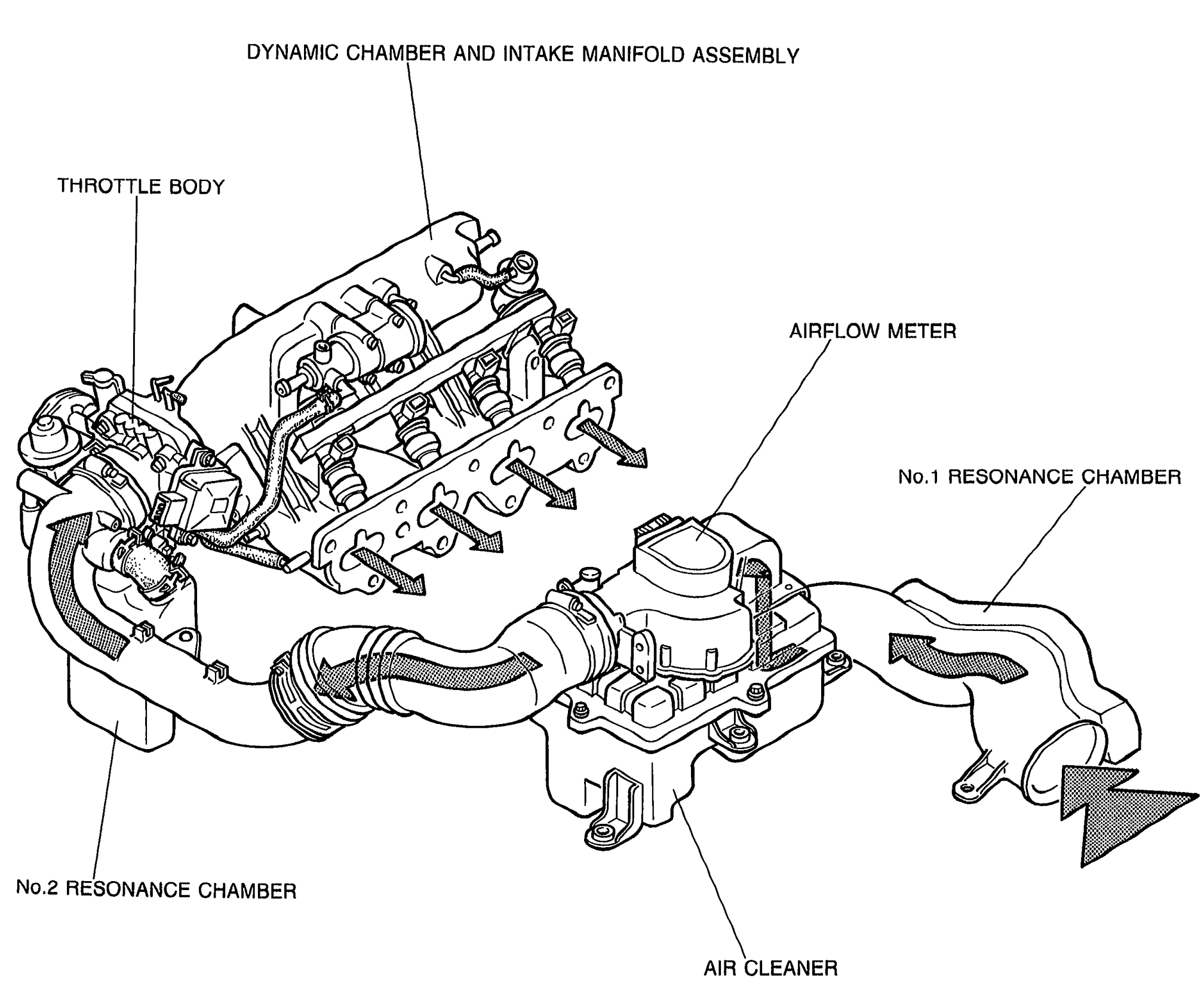

    Illustration of the assembled intake air system showing airflow path with arrows. Labeled components: Dynamic Chamber and Intake Manifold Assembly, Throttle Body, Airflow Meter, No.1 Resonance Chamber, No.2 Resonance Chamber, Air Cleaner. Air leakage inspection points are indicated by arrows along the system.
    05U0FX-106
