CONTROL SYSTEM
F-137prose procedureInspection (continued)
- 3Insert a feeler gauge between the throttle stop screw and the stop lever.
- 4Note the operation of the buzzer or the continuity between terminals.
Feeler gauge / Buzzer / Continuity
0.4mm (0.016 in)
BuzzerYes
Continuity IDL↔TLYes
Continuity POW↔TLNo
0.7mm (0.027 in)
BuzzerNo
Continuity IDL↔TLNo
Continuity POW↔TLNo
Wide-open throttle
BuzzerYes
Continuity IDL↔TLNo
Continuity POW↔TLYes
Adjustment

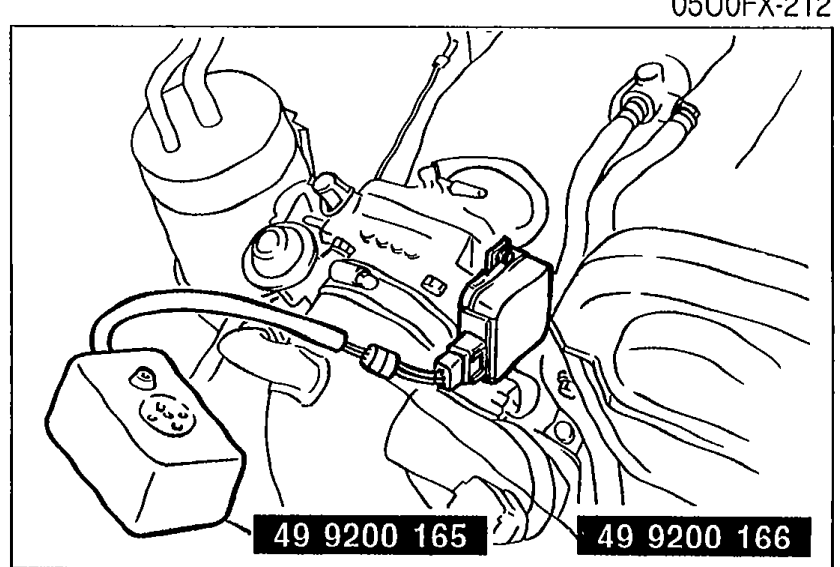

- 1Disconnect the connector from the throttle sensor and connect the SSTs.

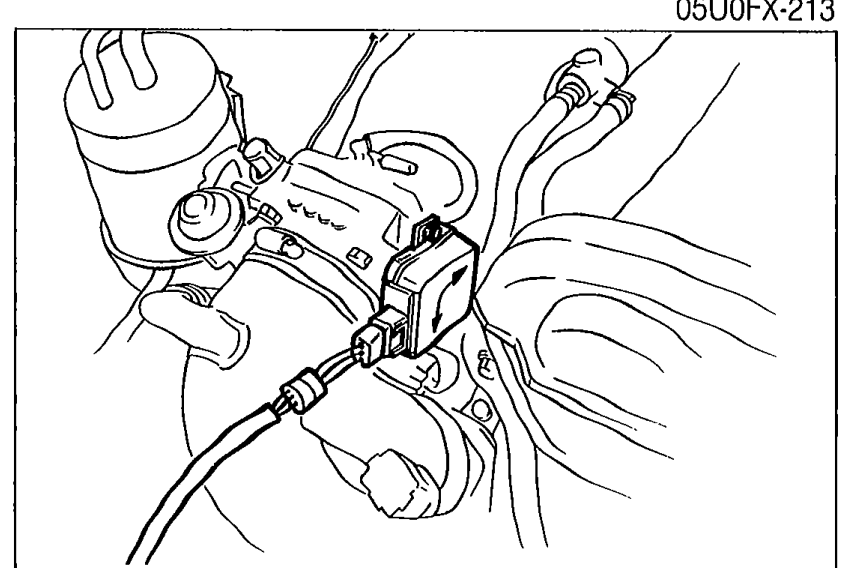

05U0FX-213 - 2Insert a 0.4mm (0.016 in) feeler gauge between the throttle stop screw and the stop lever.
- 3Loosen the two attaching screws.

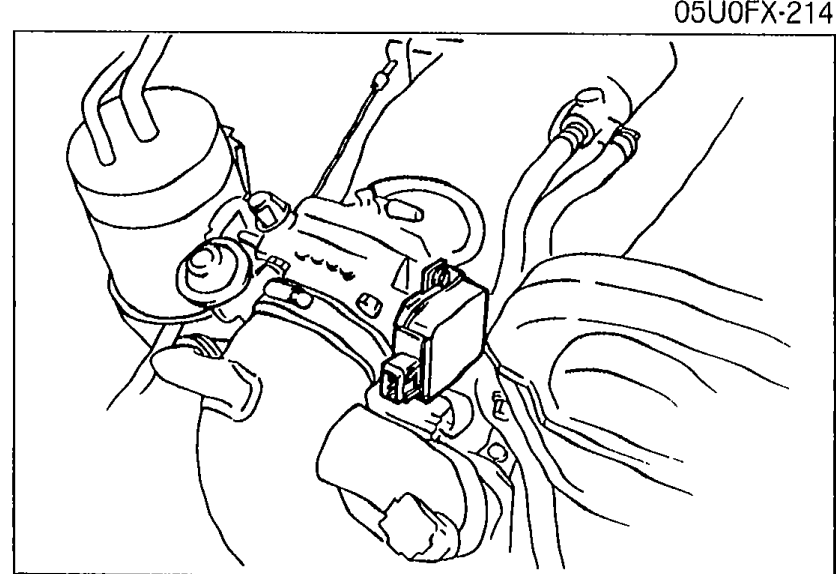

05U0FX-214 - 4Rotate the throttle sensor clockwise approx. 30 degrees, then rotate it back counterclockwise until the buzzer sounds.
- 5Replace the feeler gauge with a 0.7mm (0.027 in) gauge.
- 6Verify that the buzzer does not sound.
- 7If it sounds, repeat Steps 3 through 6.
- 8Tighten the two attaching screws.Do not move the throttle sensor from the set position when tightening the screws.
05U0FX-215 - 9Open the throttle valve fully a few times.
- 10Recheck the adjustment of the throttle sensor.
Replacement
- 1Disconnect the throttle sensor connector.

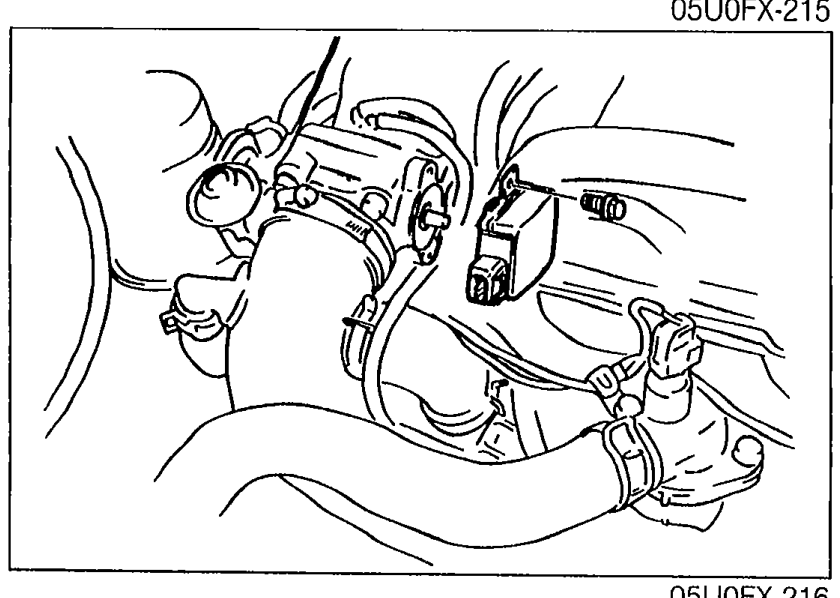

05U0FX-216 - 2Remove the throttle sensor mounting screws.
- 3Remove the throttle sensor.
- 4Install in the reverse order of removal.
| Specification | Value |
|---|---|
| 1.6 - 2.4N·m |
1.6 - 2.4N·m
