Cylinder head bolt
Cylinder head bolt — Installation
- 1Apply clean engine oil to the bolt threads and seat faces.
05U0BX-043 - 2Install the cylinder head bolts.

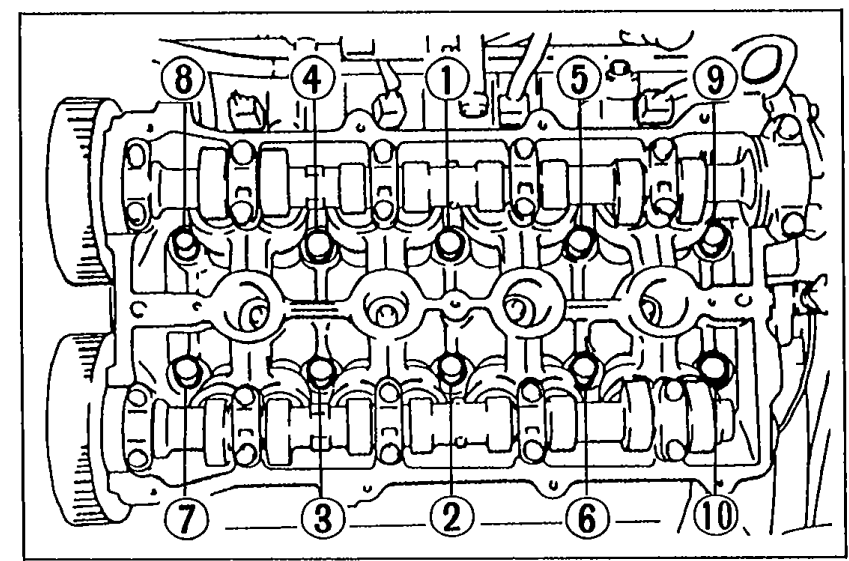

- 3Tighten the cylinder head bolts in two or three steps in the order shown in the figure.
| Specification | Value |
|---|---|
| Tightening torque (cylinder head bolt) | 76 - 81N·m |
Tightening torque (cylinder head bolt)
76 - 81N·m
Accelerator cable
- 1Install the accelerator cable.

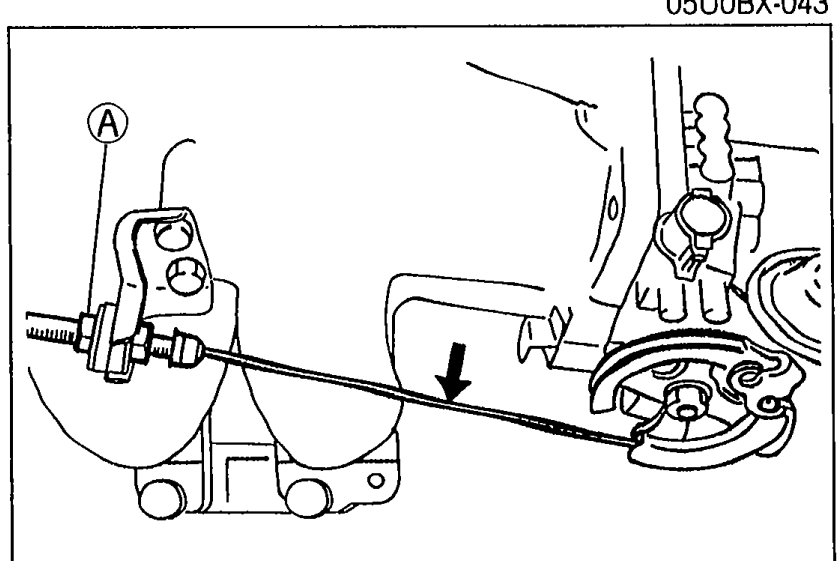

05U0BX-045 - 2Check the accelerator cable deflection. If the deflection is not correct, adjust by turning nut A.
| Specification | Value |
|---|---|
| Deflection (accelerator cable) | 1—3 mm (0.04—0.12 in) |
Deflection (accelerator cable)
1—3 mm (0.04—0.12 in)
Steps After Installation
- 1Fill the radiator with the specified amount and type of engine coolant. (Refer to page E-5.)
- 2Connect the negative battery cable.
- 3Start the engine and check as follows: (1) Engine oil and engine coolant leakage. (2) Ignition timing, idle speed. (Refer to page B-8.) (3) Operation of emission control system.
- 4Recheck the engine coolant levels.
