DISASSEMBLY

B-39prose procedure
Continued from B-38

Disassembly Note

Crankshaft pulley

  1. 1

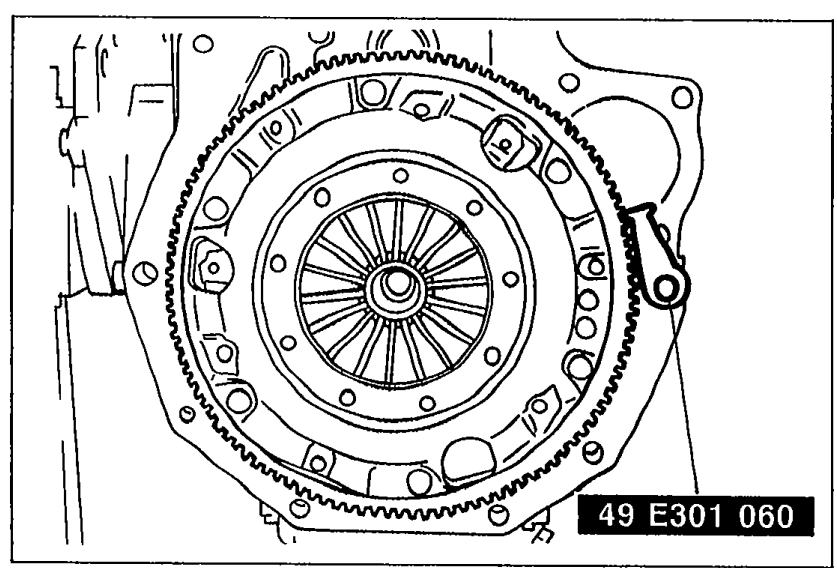

    Hold the flywheel with the SST.
    Flywheel/ring gear with SST 49 E301 060 ring gear brake installed to hold the flywheel during crankshaft pulley removal.
    05U0BX-094
  2. 2
    Loosen the crankshaft pulley lock bolts.
  3. 3
    Remove the plate, crankshaft pulley, timing belt outer guide plate, and timing belt inner guide plate.

Timing belt

  1. 1

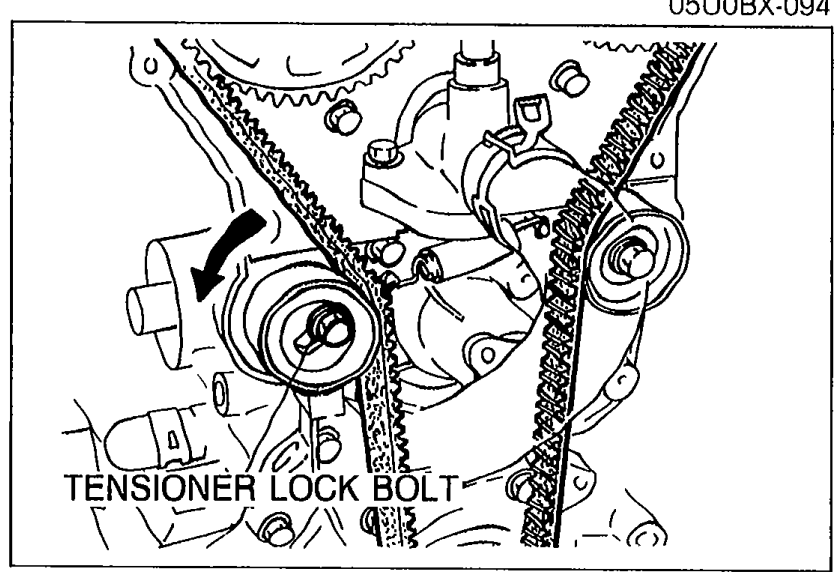

    Loosen the tensioner lock bolt.
    To prevent damage to the tensioner, secure it with a rag.
    Timing belt tensioner area with arrow indicating the TENSIONER LOCK BOLT to be loosened.
    05U0BX-095
  2. 2
    Temporarily secure the tensioner with the spring fully extended.
  3. 3
    Remove the timing belt.

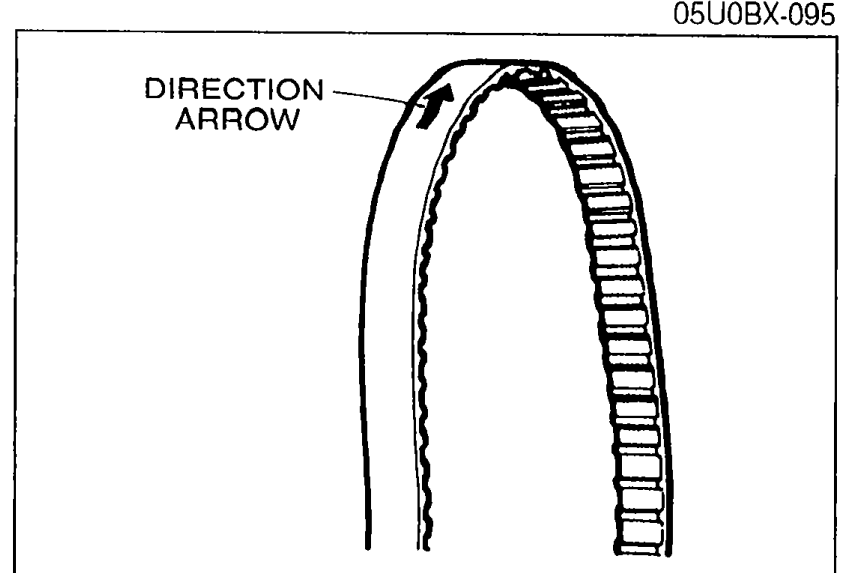

    Mark the timing belt rotation for proper reinstallation.
    Timing belt removed with DIRECTION ARROW marker indicating the rotation mark to be made before removal.
    05U0BX-096

Timing belt pulley

  1. 1

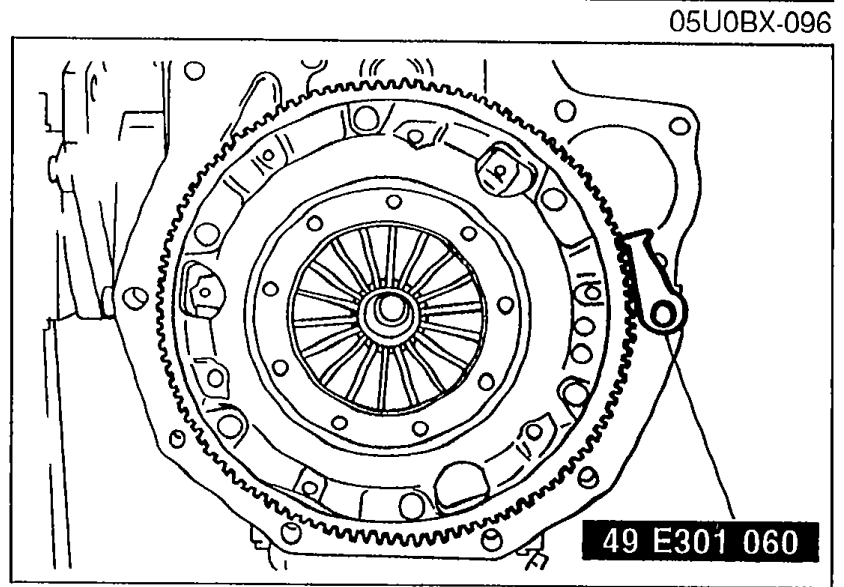

    Hold the flywheel with the SST.
    Flywheel held by SST 49 E301 060 ring gear brake while loosening the timing belt pulley lock bolt.
    05U0BX-097
  2. 2
    Loosen the pulley lock bolt.
  3. 3
    Remove the pulley lock bolt.
  4. 4
    Remove the timing belt pulley.

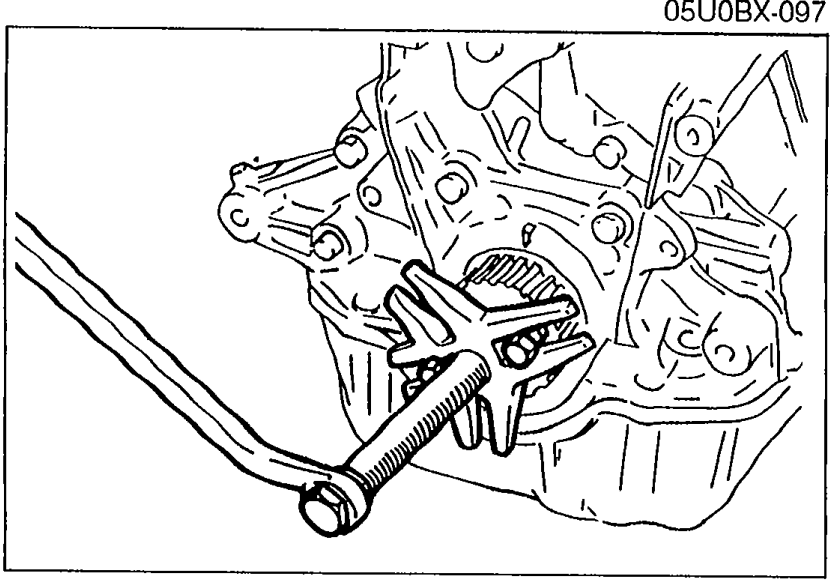

    If necessary, remove the pulley with a steering wheel puller (commercially available).
    Steering wheel puller (commercially available) being used to remove the timing belt pulley from the crankshaft.
    05U0BX-098
  5. 5
    Remove the pulley Woodruff key.
