ASSEMBLY

B-81prose procedure
Continued from B-80

Crank Angle Sensor

  1. 1
    Apply grease to a new O-ring and the blade.

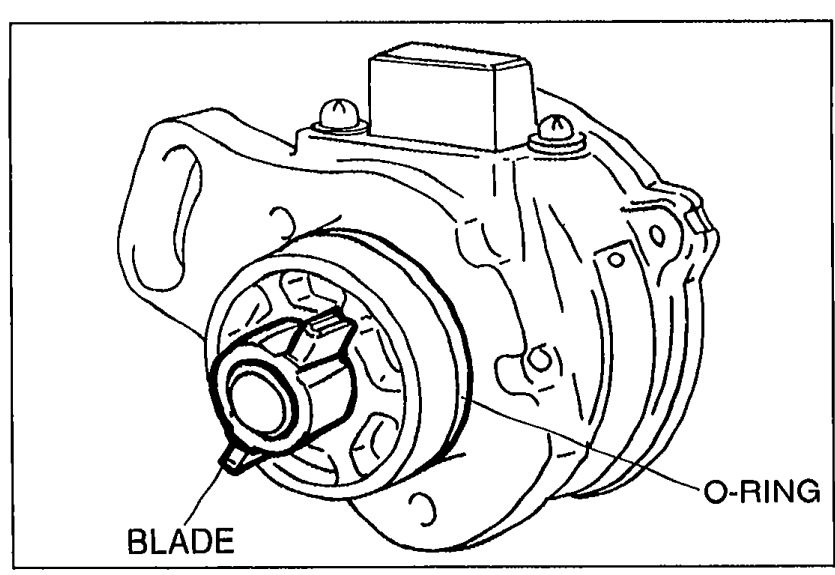

    Crank angle sensor end view with labels 'BLADE' pointing to the sensor blade and 'O-RING' pointing to the sealing O-ring.
    05U0BX-249
  2. 2
    Install the crank angle sensor and loosely tighten the installation bolt.

Ignition Coil and High-tension Lead

  1. 1
    Install the ignition coil.

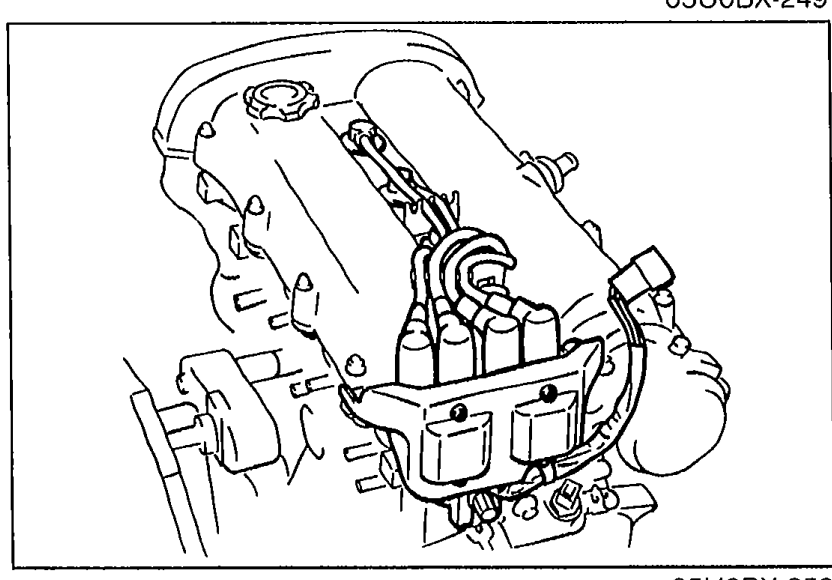

    Ignition coil installed on the engine with the high-tension leads connected to the spark plug terminals.
    05U0BX-250
  2. 2
    Connect the high-tension leads.
Tightening torque (ignition coil)
19 - 25N·m
