ASSEMBLY
B-78parts diagramAUXILIARY PARTS
Torque Specifications
| Specification | Value |
|---|---|
| Intake manifold / distributor area bolts | 19 - 25N·m |
| Bracket / manifold bolts | 36 - 54N·m |
| Spark plug | 15 - 23N·m |
| Small bracket bolts | 12 - 18N·m |
| Alternator / mount bolts | 37 - 52N·m |
| Smaller manifold/cover bolts | 7.8 - 11N·m |
Intake manifold / distributor area bolts
19 - 25N·m
Bracket / manifold bolts
36 - 54N·m
Spark plug
15 - 23N·m
Small bracket bolts
12 - 18N·m
Alternator / mount bolts
37 - 52N·m
Smaller manifold/cover bolts
7.8 - 11N·m
NOTE
Replace gaskets, O-rings, and rubber seals where indicated in the figure.

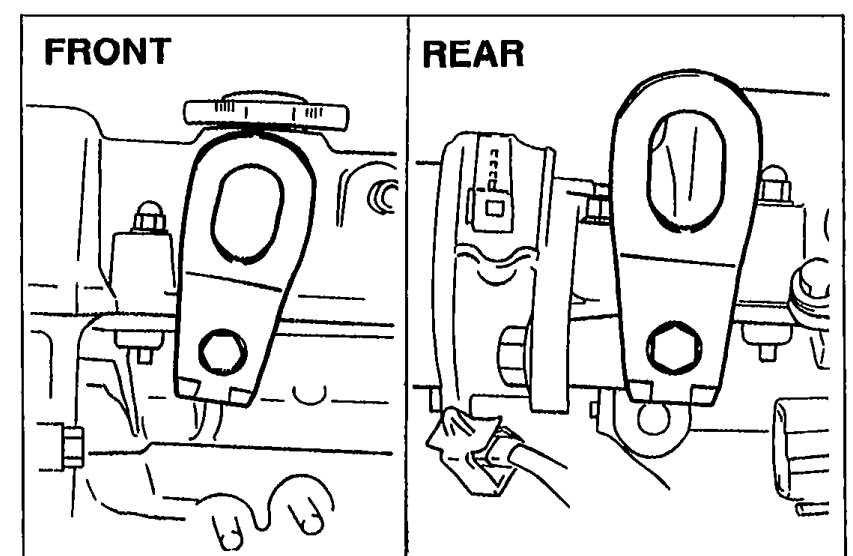

Engine Hanger
- 1Install the front and rear engine hangers.
05U0BX-238
| Specification | Value |
|---|---|
| Tightening torque (engine hanger) | 37 - 52N·m |
Tightening torque (engine hanger)
37 - 52N·m
