REMOVAL — Step 4 / Engine and transmission assembly
B-31prose procedureStep 4
Step 4 components (from figure)
1
ComponentExhaust pipe
Service / Removal NoteService page F-115
2
ComponentClutch release cylinder
Service / Removal Note
3
ComponentTransmission harness
Service / Removal Note
4
ComponentShift knob, speedometer cable, propeller shaft, and power plant frame
Service / Removal NoteService page J-10
5
ComponentEngine mount nut
Service / Removal Note
6
ComponentEngine and transmission assembly
Service / Removal NoteRemoval Note page B-31
Removal note
Engine and transmission assembly
CAUTION
• Do not damage any components in the engine compartment.

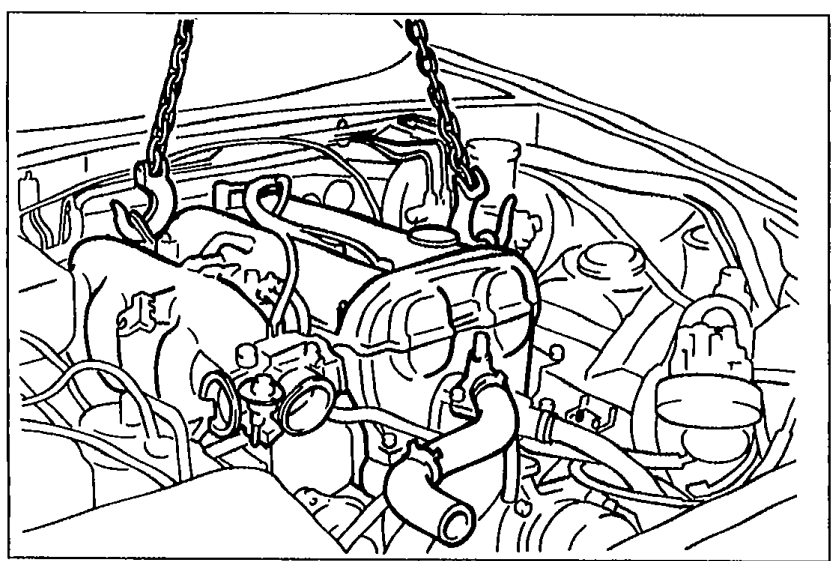

Engine and transmission assembly removal
- 1Lift the engine and transmission assembly out as a unit.
05U0BX-080
