ASSEMBLY

B-64prose procedure

7

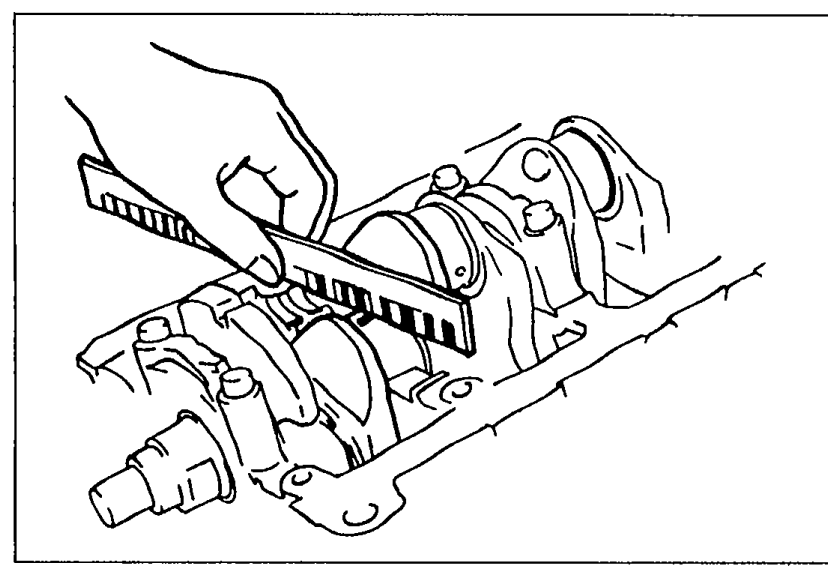

Remove the main bearing caps, and measure the Plastigage at each journal at the widest point for the smallest clearance, and at the narrowest point for the largest clearance.
05U0BX-187
8
If the oil clearance exceeds specification, grind the crankshaft and use undersize main bearings. (Refer to page B-58.)

Specification	Value
Oil clearance	0.018—0.036mm (0.0007—0.0014 in)
Maximum	0.10mm (0.004 in)

Oil clearance

0.018—0.036mm (0.0007—0.0014 in)

Maximum

0.10mm (0.004 in)

2
Apply a liberal amount of clean engine oil to the main bearings, thrust bearings and main journals.
05U0BX-188
3

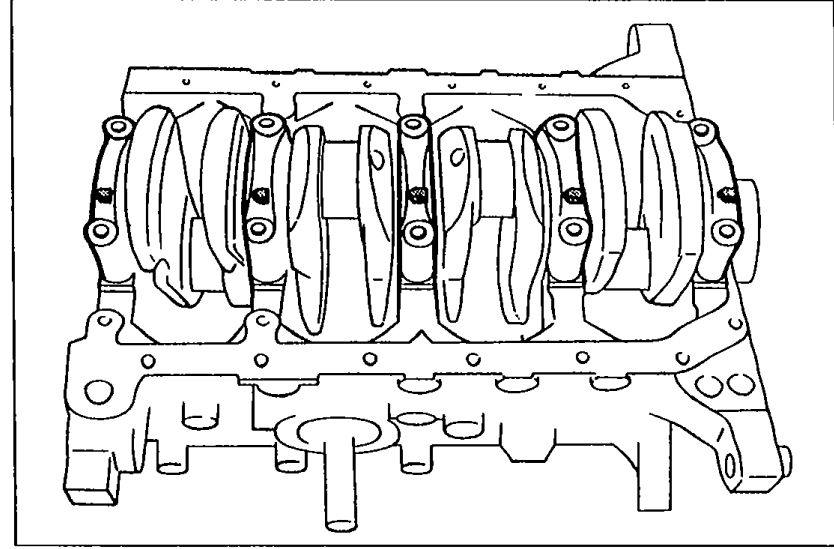

Install the crankshaft and the main bearing caps according to the cap number and ⇦ mark.
4

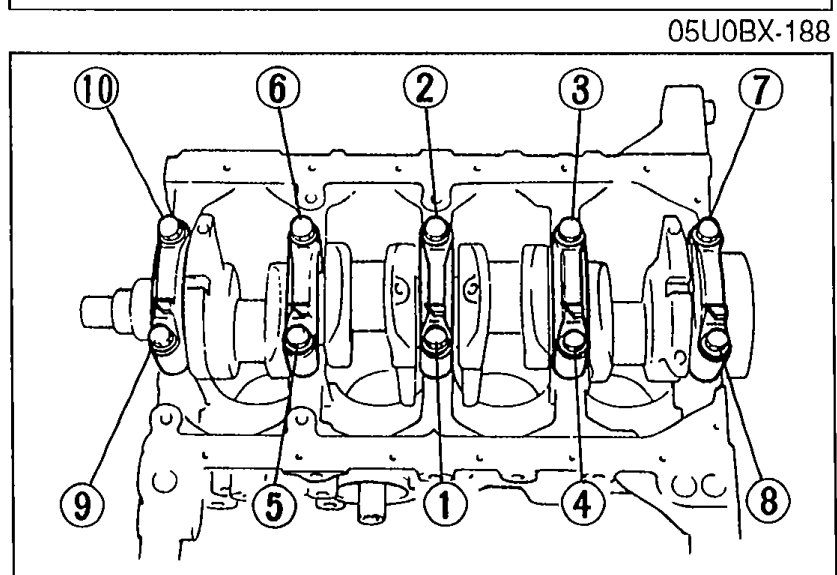

Tighten the main bearing cap bolts in two or three steps in the order shown in the figure.
05U0BX-189

Specification	Value
main bearing cap bolts	≈530 - 579N·m

main bearing cap bolts

530 - 579N·m

5

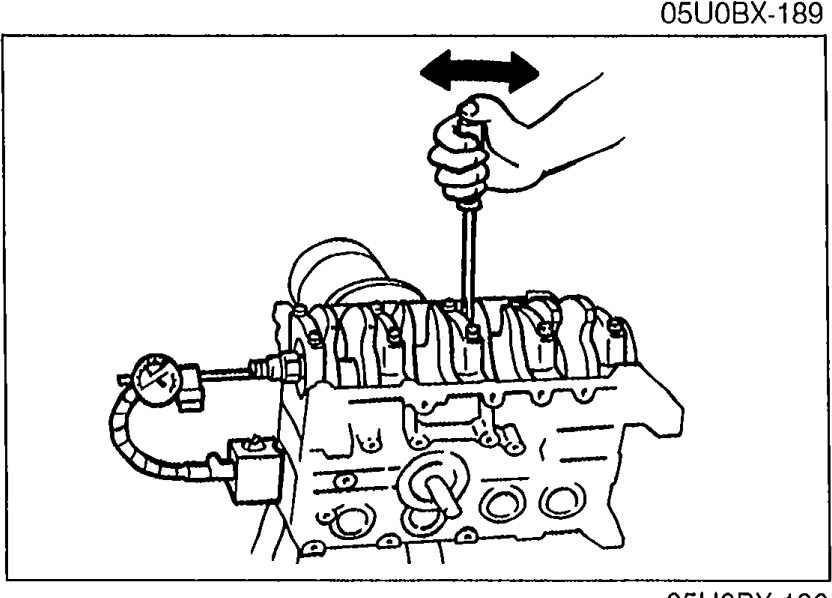

Measure the crankshaft end play.
05U0BX-190
6
If the end play exceeds the maximum, grind the crankshaft and install an oversize thrust bearing or replace the crankshaft and thrust bearing.
05U0BX-191

Specification	Value
End play	0.080—0.282mm (0.0031—0.0111 in)
Maximum	0.30mm (0.012 in)

End play

0.080—0.282mm (0.0031—0.0111 in)

Maximum

0.30mm (0.012 in)

Specification	Value
Thrust bearing width — Standard	2.500—2.550mm (0.0984—0.1004 in)
Thrust bearing width — 0.25 mm (0.010 in) oversize	2.625—2.675mm (0.1033—0.1053 in)
Thrust bearing width — 0.50 mm (0.020 in) oversize	2.750—2.800mm (0.1083—0.1102 in)

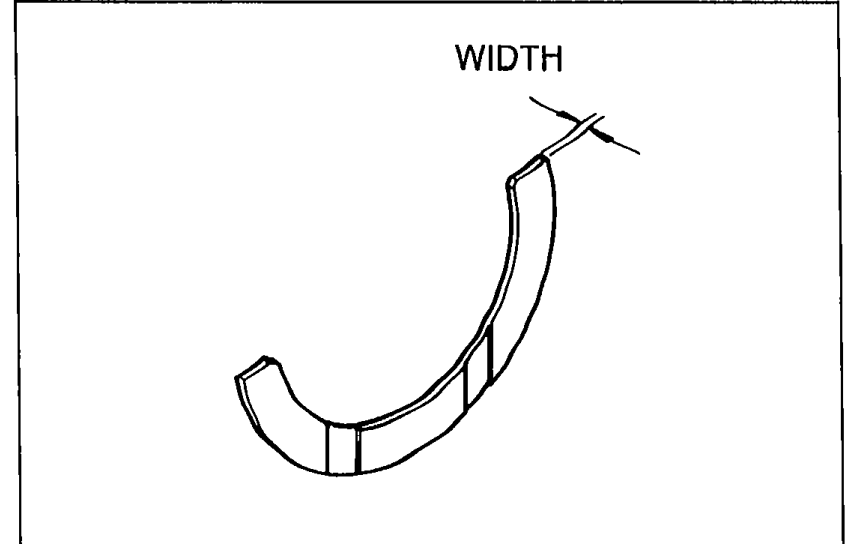

Thrust bearing width — 0.75 mm (0.030 in) oversize	2.875—2.925mm (0.1132—0.1152 in)

Thrust bearing width — Standard

2.500—2.550mm (0.0984—0.1004 in)

Thrust bearing width — 0.25 mm (0.010 in) oversize

2.625—2.675mm (0.1033—0.1053 in)

Thrust bearing width — 0.50 mm (0.020 in) oversize

2.750—2.800mm (0.1083—0.1102 in)

Thrust bearing width — 0.75 mm (0.030 in) oversize

2.875—2.925mm (0.1132—0.1152 in)
