ASSEMBLY

B-80prose procedure
Continued from B-79

Right Engine Mount

  1. 1
    Install the right engine mount.

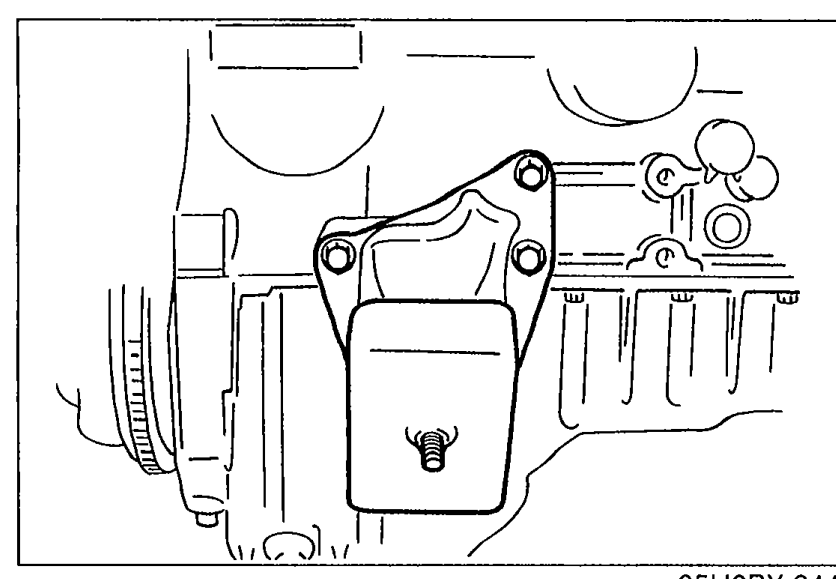

    Right engine mount installed on the engine. View from the side showing the mount bracket.
    05U0BX-244
Tightening torque (right engine mount)
36 - 54N·m

Alternator Bracket

  1. 1
    Install the alternator bracket.

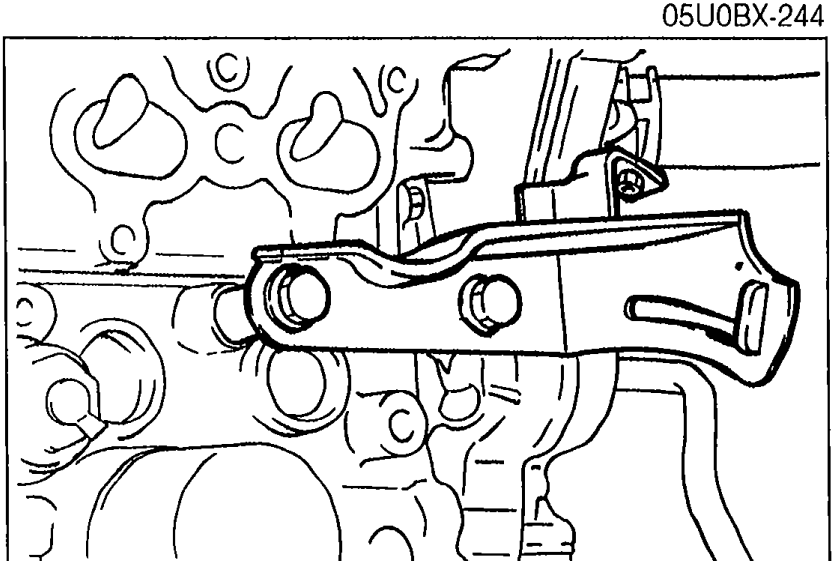

    Alternator bracket installed on the engine block.
    05U0BX-245
Tightening torque (alternator bracket)
36 - 54N·m

Alternator

  1. 1
    Install the alternator and loosely tighten the mounting bolts.

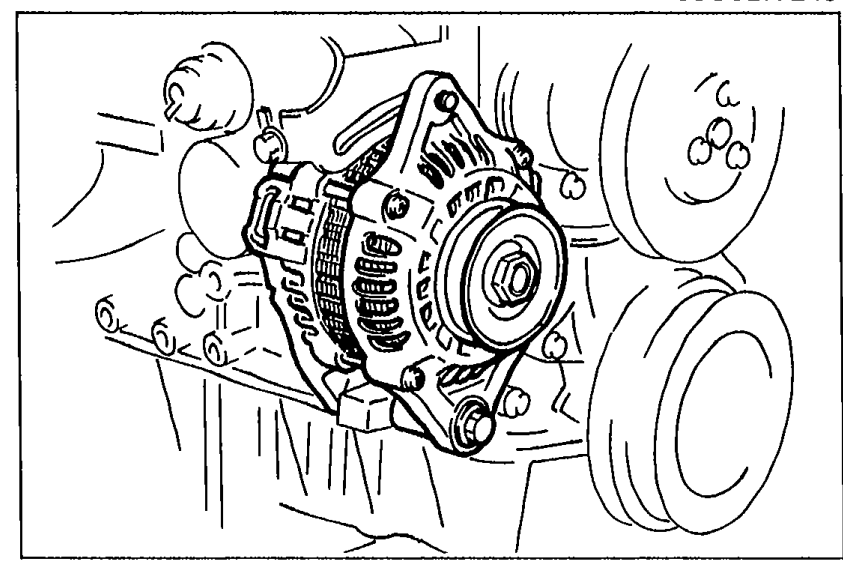

    Alternator installed on its bracket with the drive pulley visible.
    05U0BX-246

Intake Manifold Assembly

  1. 1
    Remove all foreign material from the intake manifold contact surface.

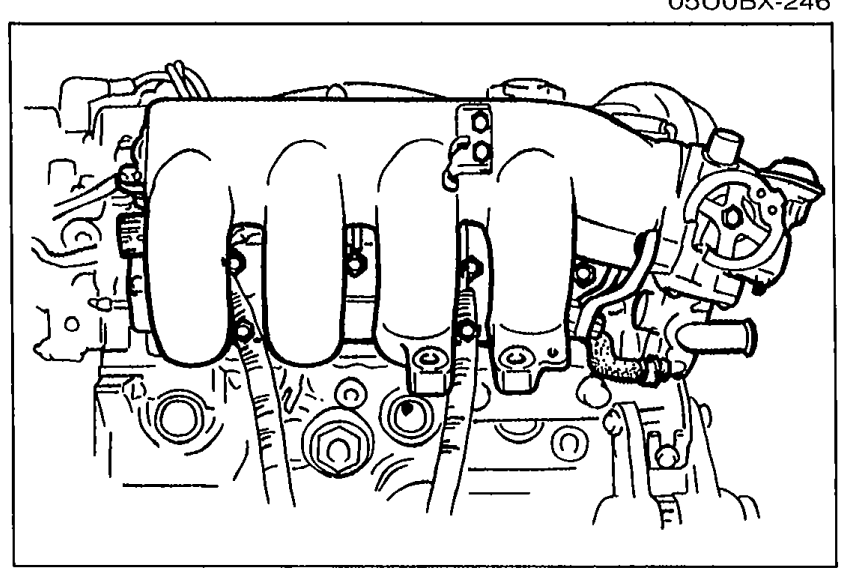

    Intake manifold assembly installed on the cylinder head showing the four intake runners.
    05U0BX-247
  2. 2
    Install a new gasket and the intake manifold assembly.
Tightening torque (intake manifold)
19 - 25N·m

Manifold Bracket

  1. 1
    Install the manifold bracket.

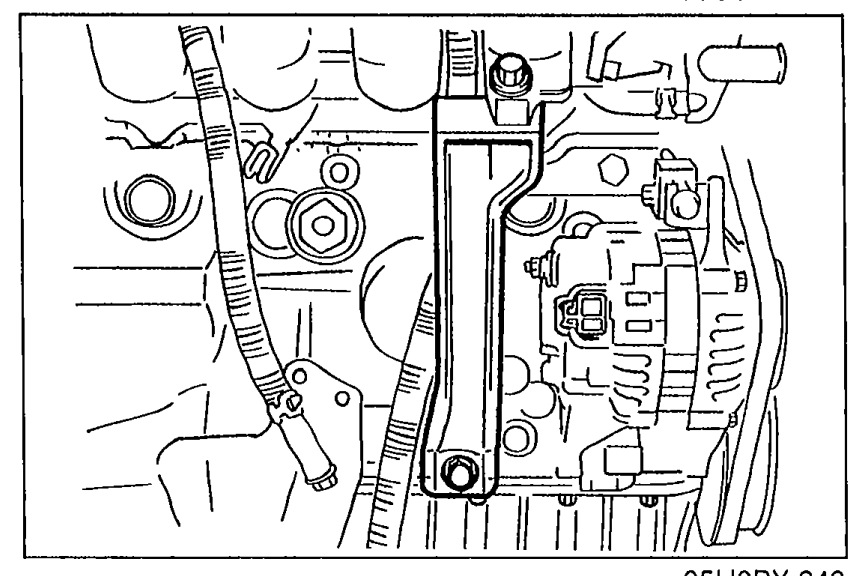

    Manifold bracket installed on the engine block, side view.
    05U0BX-248
Tightening torque (manifold bracket)
36 - 54N·m
