INSPECTION / REPAIR
B-59prose procedureTIMING BELT
CAUTION

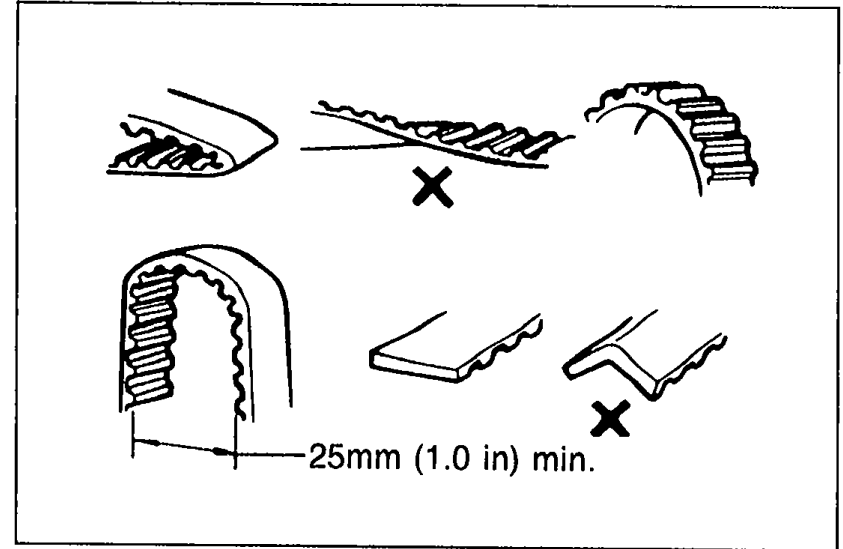

Never forcefully twist, turn inside out, or bend the timing belt. Do not allow oil or grease on the belt.
Timing belt inspection
- 1Replace the timing belt if there is any oil or grease on it.

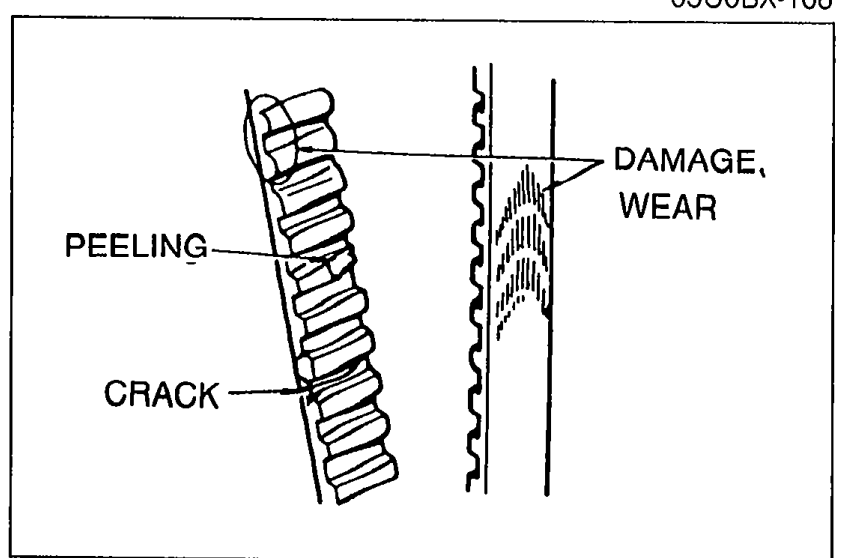

05U0BX-168 - 2Check the timing belt for damage, wear, peeling, cracks, and hardening. Replace the timing belt if necessary.
05U0BX-169
TENSIONER, IDLER
CAUTION
Do not clean the tensioner or idler with cleaning fluids. If necessary, use a soft rag to wipe them clean, and avoid scratching them.
Tensioner and idler inspection

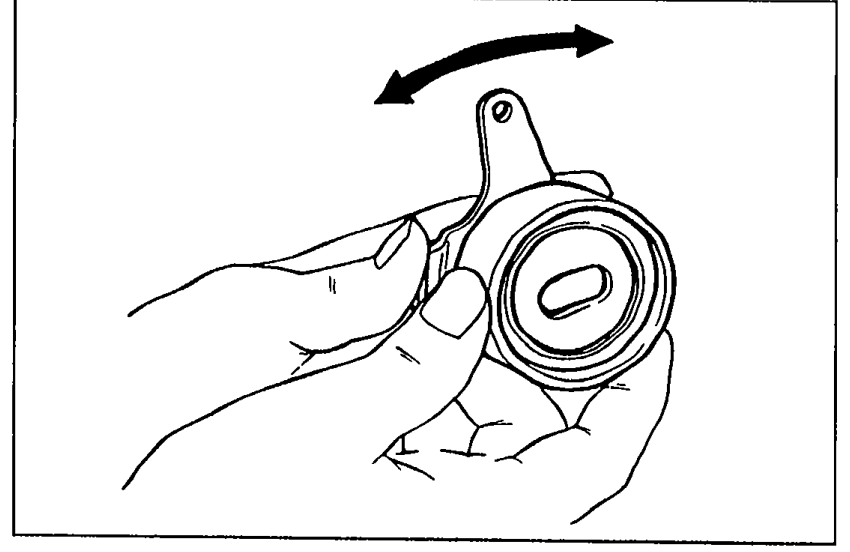

- 1Check the tensioner and idler for smooth rotation and abnormal noise. Replace the tensioner or idler if necessary.
05U0BX-170
TENSIONER SPRING
Tensioner spring inspection

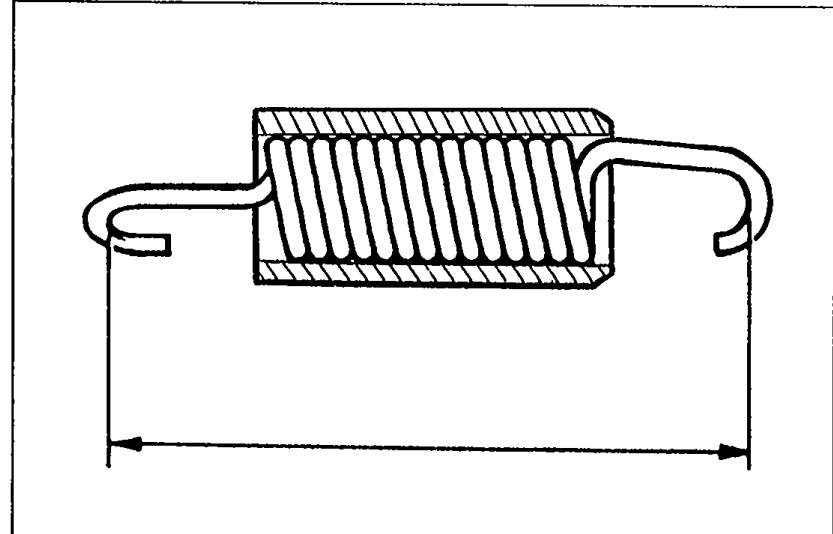

- 1Measure the free length of the tensioner spring. Replace the tensioner spring if necessary.
05U0BX-171
| Specification | Value |
|---|---|
| Free lengthstandard | 58.8 mm (2.315 in)mm |
Free lengthstandard
58.8 mm (2.315 in)mm
PULLEY
Timing Belt Pulley, Camshaft Pulley
CAUTION
Do not clean the pulleys with cleaning fluids. If necessary, use a soft rag to wipe them clean, and avoid scratching them.
Pulley inspection

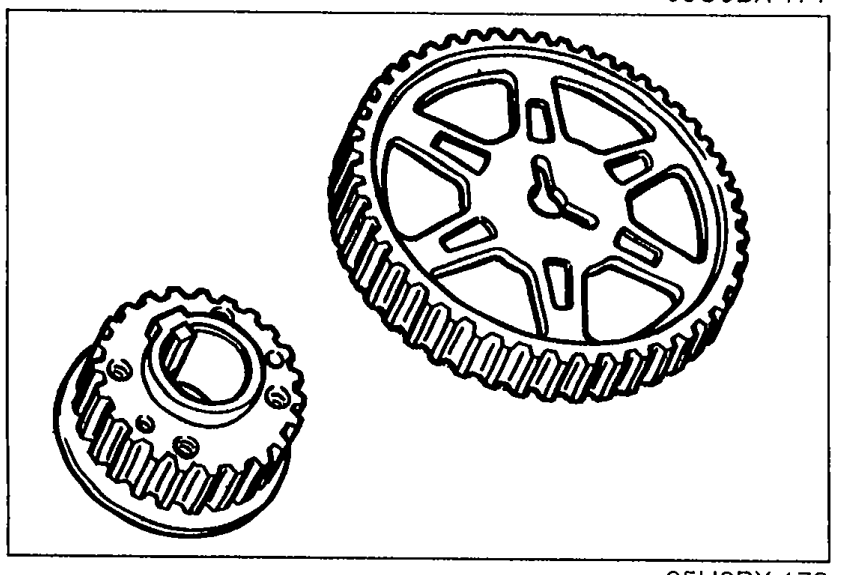

- 1Inspect the pulley teeth for wear, deformation, and other damage. Replace the pulley if necessary.
05U0BX-172
