ASSEMBLY
B-74spec tableCamshaft pulley lock bolt installation (continued)
- 3Install the camshaft pulley lock bolts.

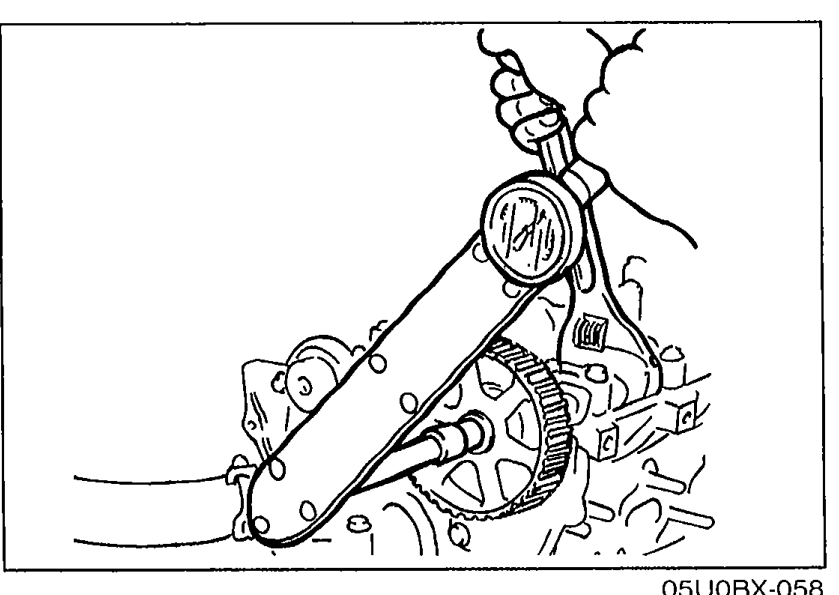

- 4Hold the camshaft with a wrench.
05U0BX-058 - 5Tighten the camshaft pulley lock bolt.
| Specification | Value |
|---|---|
| Tightening torque (camshaft pulley lock bolt) | 49 - 61N·m |
Tightening torque (camshaft pulley lock bolt)
49 - 61N·m
TIMING BELT
Torque Specifications
| Specification | Value |
|---|---|
| Cylinder head cover bolts | 4.9 - 8.8N·m |
| Upper timing belt cover bolts | 7.8 - 11N·m |
| Middle timing belt cover bolts | 7.8 - 11N·m |
| Lower timing belt cover bolts | 7.8 - 11N·m |
| Tensioner pulley lock bolt | 37 - 52N·m |
| Crankshaft pulley bolt (SST)SST | 12 - 17N·m |
| Crankshaft pulley center bolt (SST)SST | 108 - 118N·m |
Cylinder head cover bolts
4.9 - 8.8N·m
Upper timing belt cover bolts
7.8 - 11N·m
Middle timing belt cover bolts
7.8 - 11N·m
Lower timing belt cover bolts
7.8 - 11N·m
Tensioner pulley lock bolt
37 - 52N·m
Crankshaft pulley bolt (SST)SST
12 - 17N·m
Crankshaft pulley center bolt (SST)SST
108 - 118N·m
