REMOVAL — Step 3 / Fuel hose removal note
B-30prose procedureVacuum hose (4) only on Cruise-control-equipped vehicles.
Step 3
Step 3 — Hoses

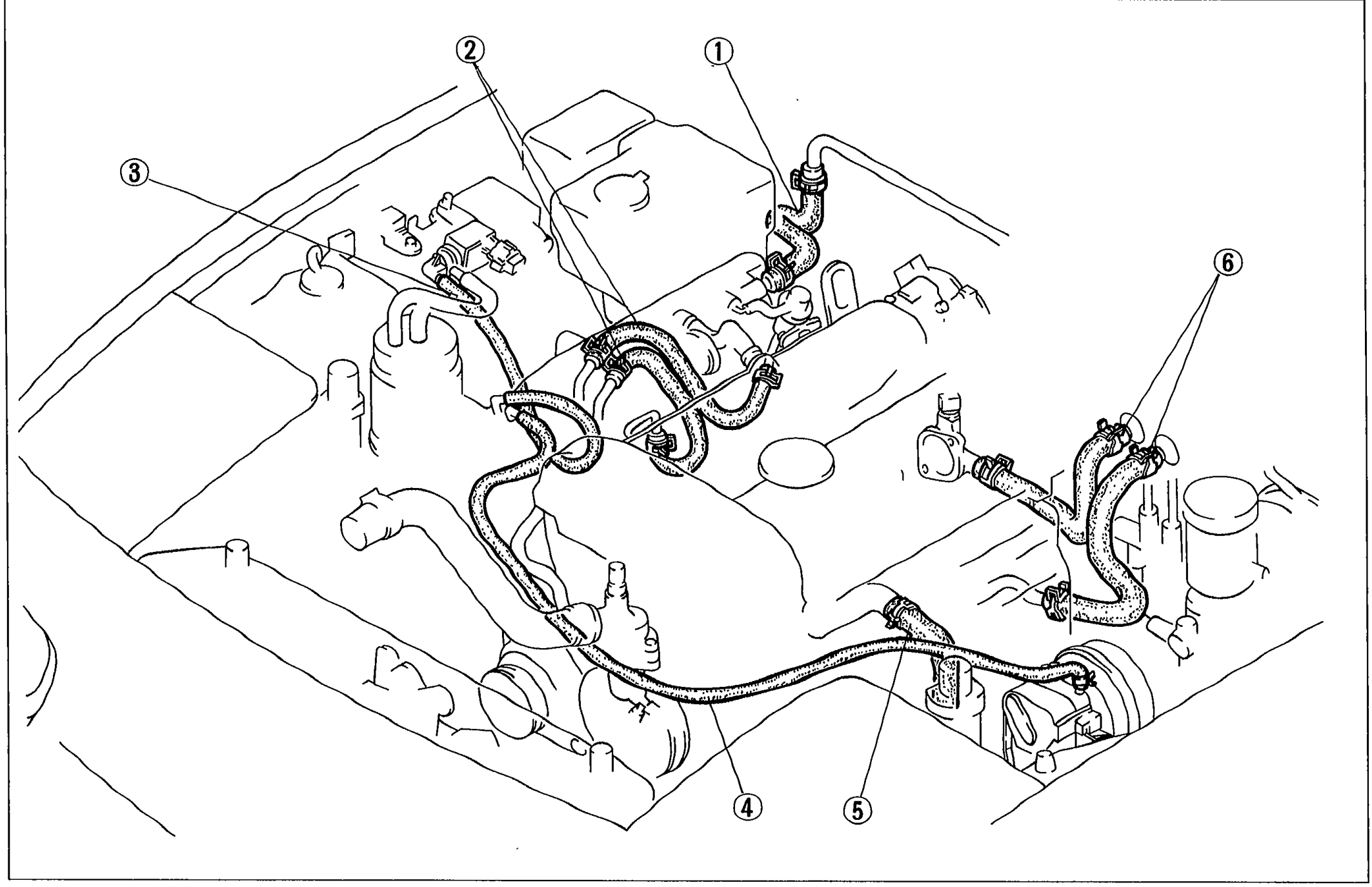

- 1Disconnect the hoses shown in the figure.
05U0BX-077
Step 3 hoses (from figure)
1
ComponentBrake vacuum hose
Removal Note
2
ComponentFuel hose
Removal Notepage B-30
3
ComponentVacuum hose (Purge control)
Removal Note
4
ComponentVacuum hose (Cruise control)
Removal Note
5
ComponentWater inlet hose
Removal Note
6
ComponentHeater hose
Removal Note
Removal note
Fuel hose
WARNING
• Keep sparks and open flame away from the fuel area.
CAUTION
• Cover the hose with a rag because fuel will spray out when disconnecting.
• Plug the disconnected hoses to avoid fuel leakage.

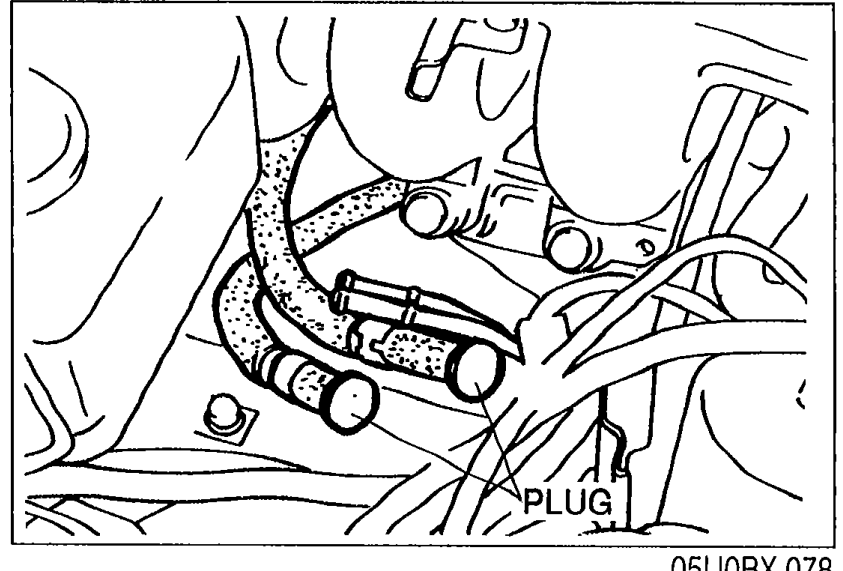

Fuel hose removal
- 1Disconnect the fuel hoses.
05U0BX-078
