DISASSEMBLY

B-47prose procedure
Continued from B-46

Main bearing cap

  1. 1
    Before removing the main bearing caps, measure the crankshaft end play. (Refer to page B-64.)

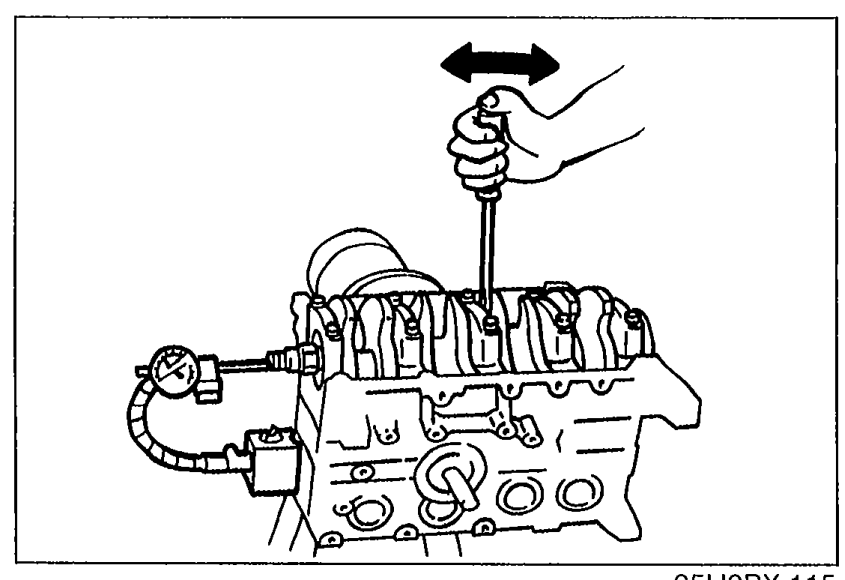

    Measuring crankshaft end play with a screwdriver prying the crankshaft fore/aft (double-headed arrow above the screwdriver) and a dial indicator on the bottom of the block.
    05U0BX-115
  2. 2
    Loosen the main bearing cap bolts in two or three steps in the order shown in the figure.

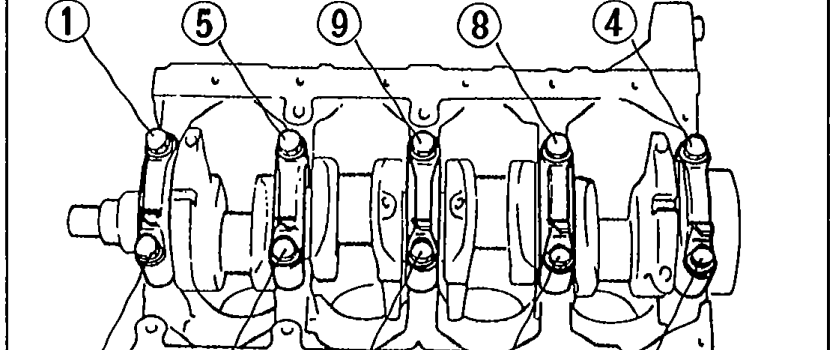

    Main bearing cap bolt loosening sequence — top view of inverted cylinder block with 10 main bearing cap bolts numbered 1 through 10 in the loosening order (1, 5, 7, 8, 4 across the top row; 2, 6, 10, 9, 3 across the bottom row).
    05U0BX-116
  3. 3
    Remove the main bearing caps.

Crankshaft

  1. 1
    Before removing the crankshaft, measure the main bearing oil clearances. (Refer to page B-63.)

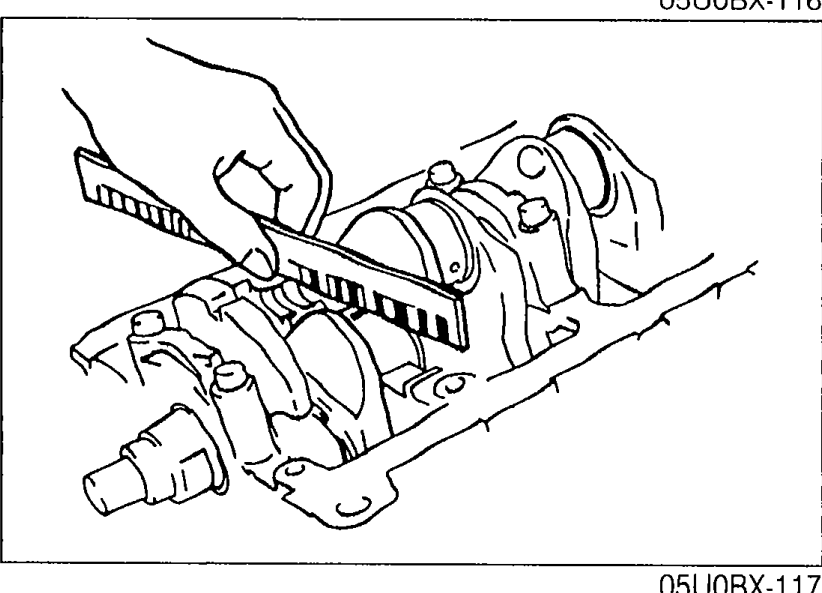

    Measuring main bearing oil clearance with Plastigage strips placed on the main journals of the crankshaft inside the inverted cylinder block.
    05U0BX-117
