INSTALLATION

B-84prose procedure

PROCEDURE

Installation procedure

  1. 1
    Tighten all bolts and nuts to the specified torques.

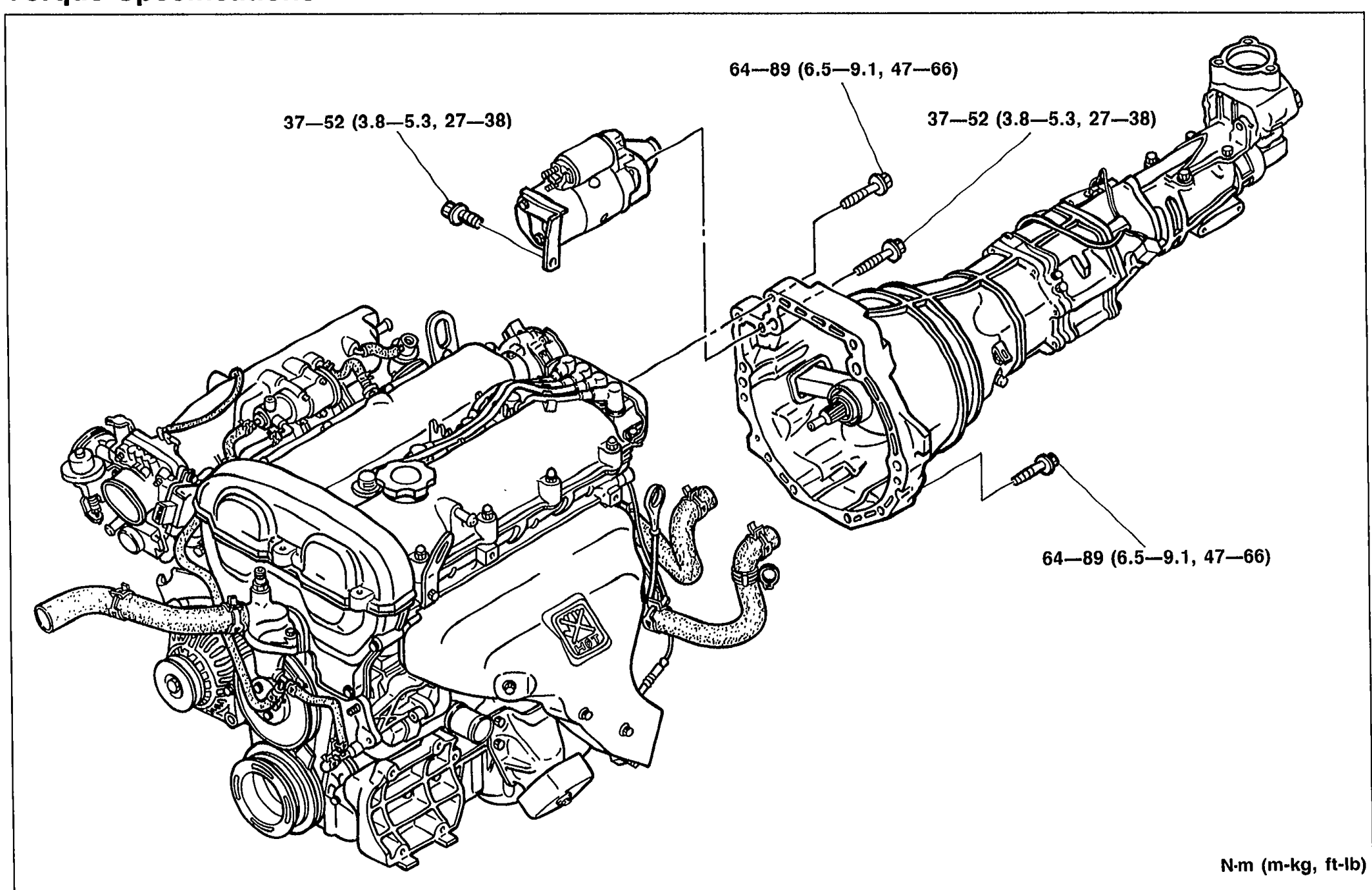

    Engine and transmission assembly viewed from the front-left, showing four torque callouts: starter mounting (37-52 N·m), starter bracket bolt (64-89 N·m at top-center), transmission-to-engine bell-housing bolts (37-52 N·m at top-right), and exhaust pipe bracket bolt (64-89 N·m at lower-right). Units legend at lower-right: 'N·m (m-kg, ft-lb)'.
    05U0BX-258

Step 1

Torque Specifications

Starter mounting bolts
37 - 52N·m
Transmission-to-engine bolts (top right)
37 - 52N·m
Bolt (top center)
64 - 89N·m
Exhaust pipe bracket bolt
64 - 89N·m

Transmission

  1. 1
    Join the engine and transmission.
  2. 2
    Install the transmission mounting bolts.
    Caution: Install the exhaust pipe bracket as shown.

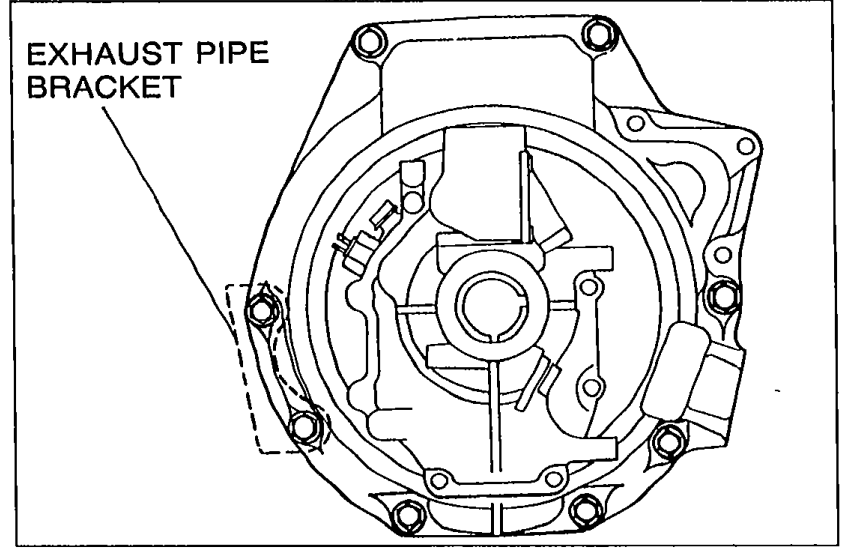

    Close-up of the transmission bell-housing area showing the exhaust pipe bracket bolted to the transmission. A leader line labelled 'EXHAUST PIPE BRACKET' points to the bracket.
    05U0BX-259
  3. 3
    Tighten the bolts.
    Tightening torque: 64—89 N·m (6.5—9.1 m-kg, 47—66 ft-lb)

Starter

  1. 1
    Install the starter to the transmission housing.
    Tightening torque: 37—52 N·m (3.8—5.3 m-kg, 27—38 ft-lb)

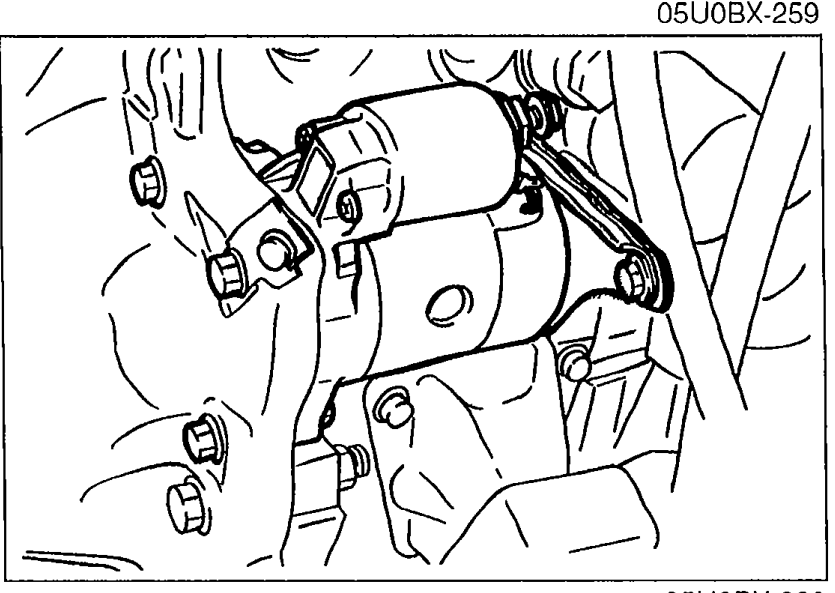

    Close-up of the starter motor installed at the transmission housing, showing the mounting bolts.
    05U0BX-260
  2. 2
    Install the starter bracket bolt.
    Tightening torque: 37—52 N·m (3.8—5.3 m-kg, 27—38 ft-lb)
