ASSEMBLY

B-70parts diagram

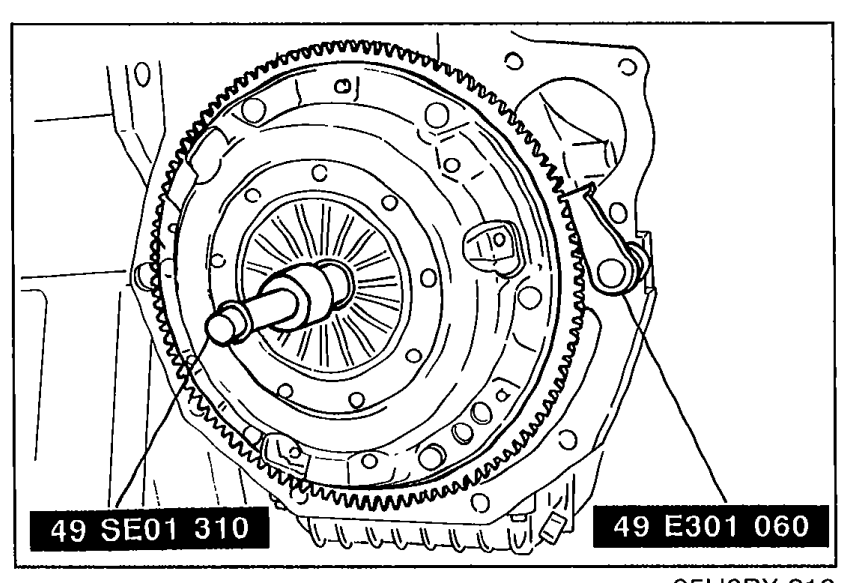

Clutch Disc and Clutch Cover

1
Install the clutch disc and clutch cover using the SST. (Refer to page H-14.)
05U0BX-212

Specification	Value
clutch cover bolts	≈177 - 255N·m

clutch cover bolts

177 - 255N·m

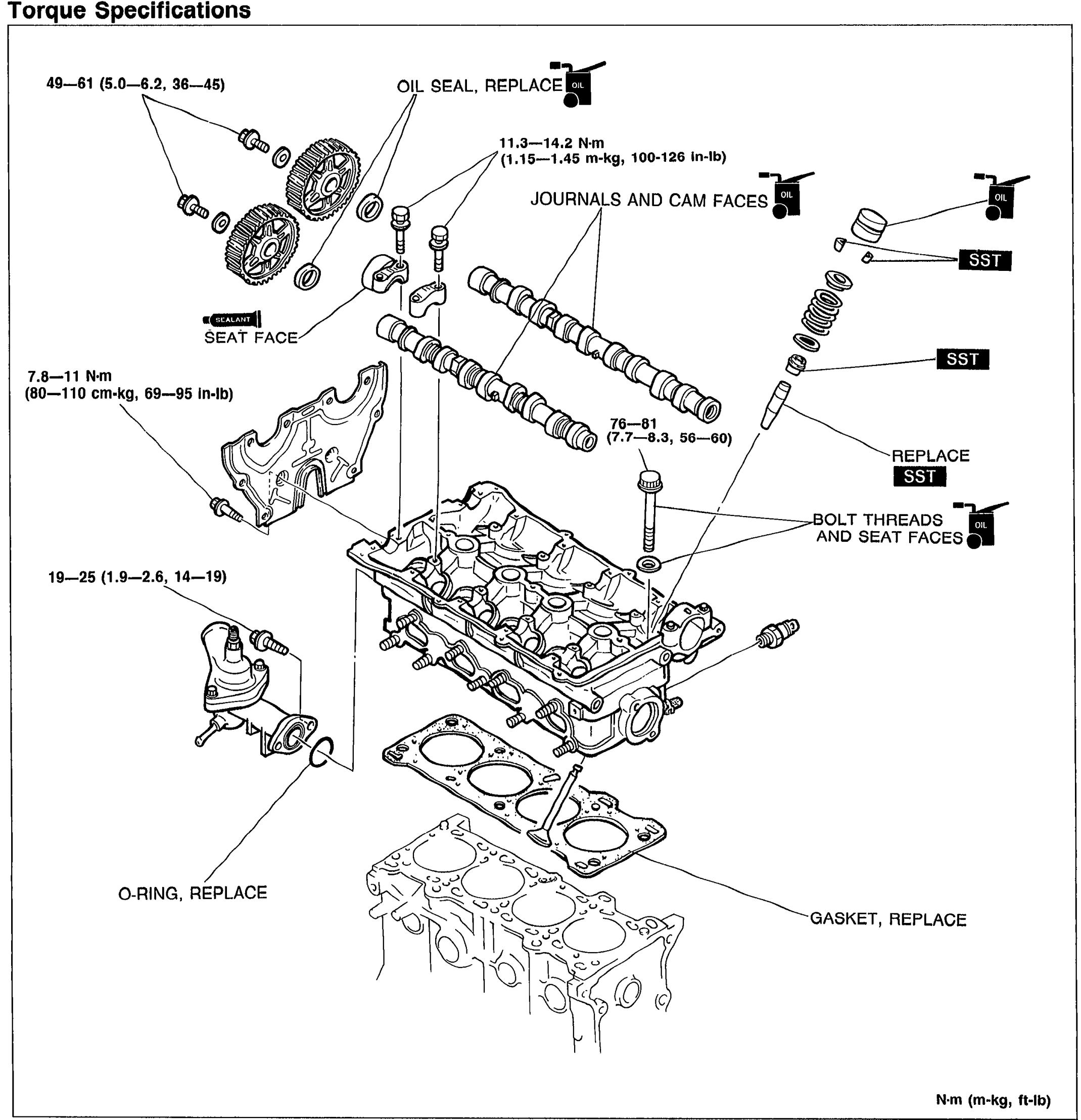

Parts DiagramFig. fig2

Part Name	Notes

Location / Fastener	Tightening Torque	Note
Camshaft pulley bolts	49—61 N·m (5.0—6.2 m-kg, 36—45 ft-lb)	Oil seal replace
Camshaft cap bolts	11.3—14.2 N·m (1.15—1.45 m-kg, 100—126 in-lb)	Apply oil to journals and cam faces; seat face sealant
Cylinder head bolts	76—81 N·m (7.7—8.3 m-kg, 56—60 ft-lb)	Replace; apply oil to bolt threads and seat faces; SST
Accessory / cover bolts	7.8—11 N·m (80—110 cm-kg, 69—95 in-lb)	—
Water outlet / coolant fitting	19—25 N·m (1.9—2.6 m-kg, 14—19 ft-lb)	O-ring replace; gasket replace

Camshaft pulley bolts

Tightening Torque49—61 N·m (5.0—6.2 m-kg, 36—45 ft-lb)

NoteOil seal replace

Camshaft cap bolts

Tightening Torque11.3—14.2 N·m (1.15—1.45 m-kg, 100—126 in-lb)

NoteApply oil to journals and cam faces; seat face sealant

Cylinder head bolts

Tightening Torque76—81 N·m (7.7—8.3 m-kg, 56—60 ft-lb)

NoteReplace; apply oil to bolt threads and seat faces; SST

Accessory / cover bolts

Tightening Torque7.8—11 N·m (80—110 cm-kg, 69—95 in-lb)

Note—

Water outlet / coolant fitting

Tightening Torque19—25 N·m (1.9—2.6 m-kg, 14—19 ft-lb)

NoteO-ring replace; gasket replace
