INSTALLATION
B-88prose procedureStep 5
Torque Specifications
| Specification | Value |
|---|---|
| Upper bolts (top-center / top-right) | 7.8 - 11N·m |
| Radiator/hose bolts (B callouts, top) | 19 - 25N·m |
| Lower-left torque (A callout) | 31 - 46N·m |
| Bottom-center torque (B callout) | 36 - 54N·m |
| Lower-right | 15 - 22N·m |
Upper bolts (top-center / top-right)
7.8 - 11N·m
Radiator/hose bolts (B callouts, top)
19 - 25N·m
Lower-left torque (A callout)
31 - 46N·m
Bottom-center torque (B callout)
36 - 54N·m
Lower-right
15 - 22N·m

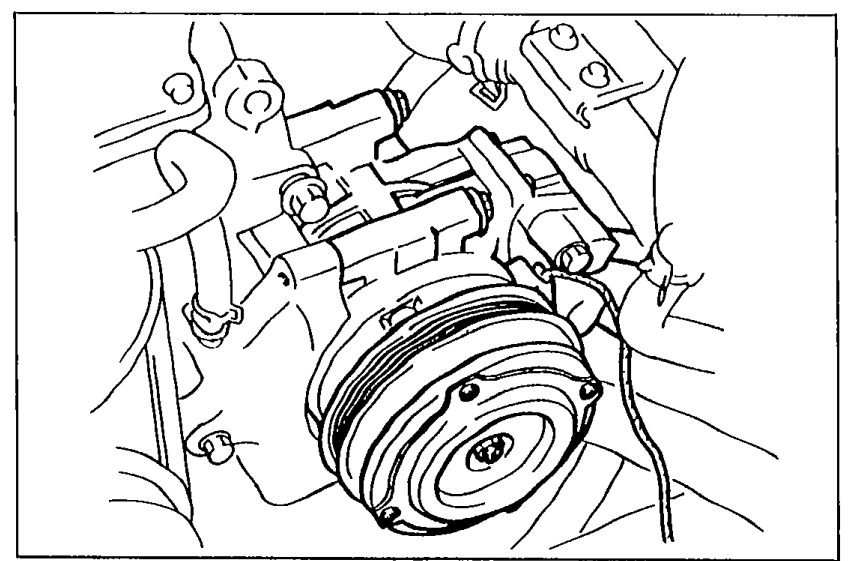

A/C compressor
- 1Install the A/C compressor.Tightening torque: 15—22 N·m (1.5—2.2 m-kg, 11—16 ft-lb)
05U0BX-270

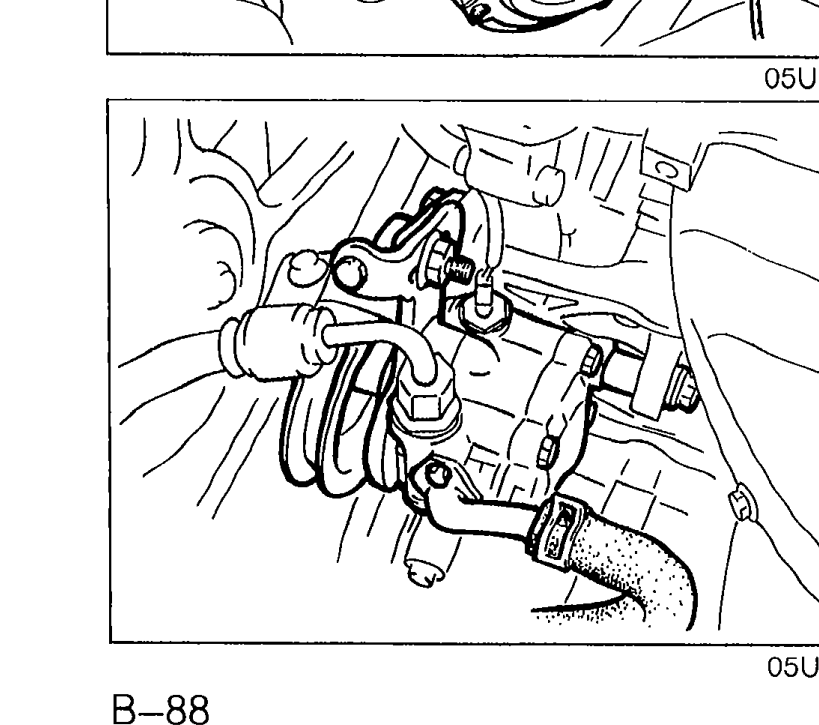

P/S oil pump
- 1Install the P/S oil pump and loosely tighten the mounting bolts.
05U0BX-271
