ASSEMBLY
B-67prose procedureRear Cover
Rear Cover Installation
- 1Apply a small amount of clean engine oil to the lip of a new oil seal.
05U0BX-199 - 2Push the oil seal slightly in by hand.
CAUTION
The oil seal must be pressed in until it is flush with the edge of the rear cover.
Rear Cover Installation (continued)

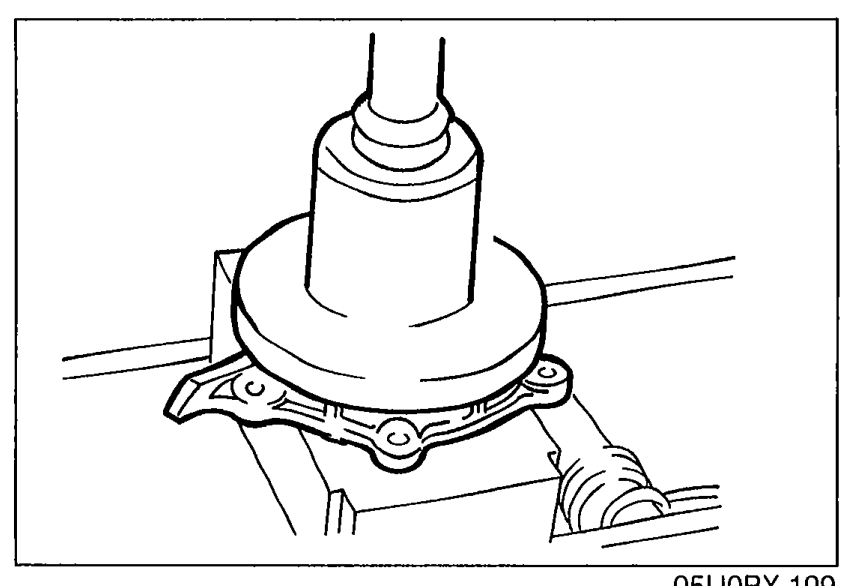

- 3Press the oil seal in evenly with a suitable pipe.
| Specification | Value |
|---|---|
| Oil seal outer diameterrear cover | 100mm (3.94 in) |
Oil seal outer diameterrear cover
100mm (3.94 in)
Rear Cover Installation (continued)

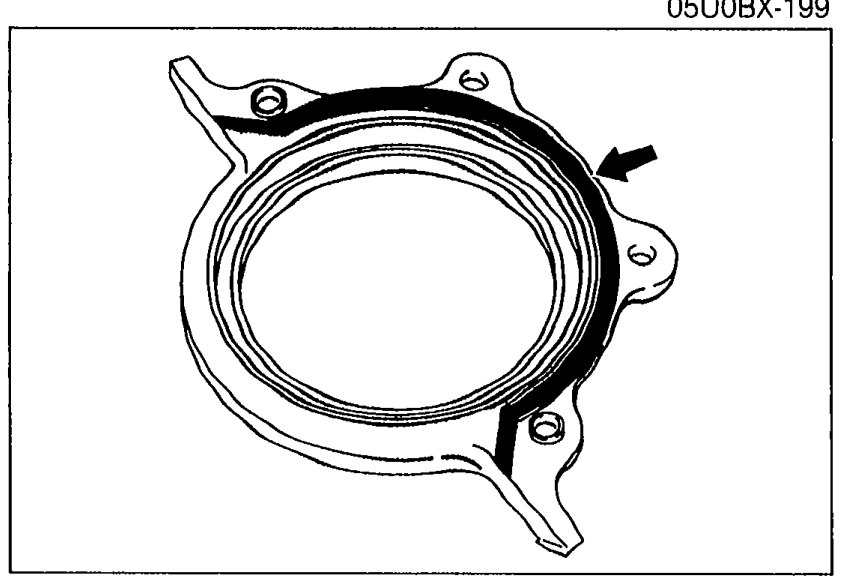

- 4Apply silicone sealant to the shaded area shown in the figure.

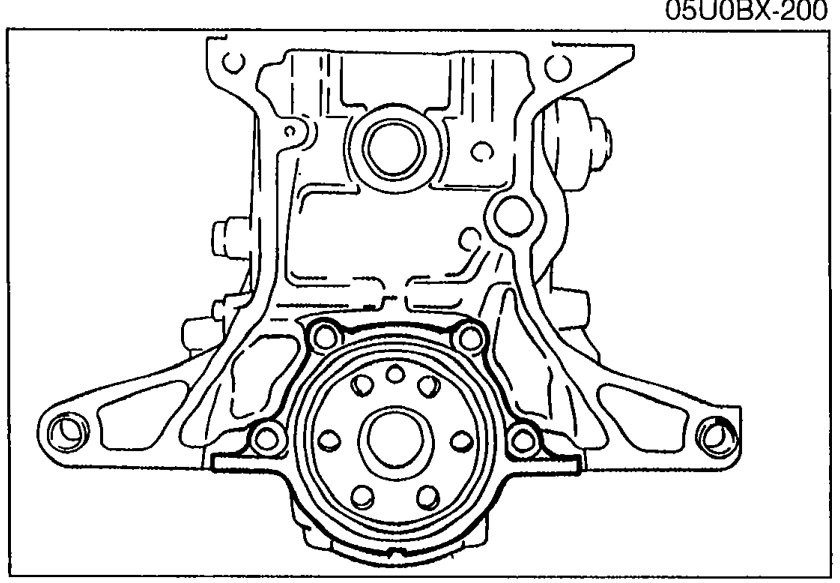

05U0BX-200 - 5Install the rear cover.
05U0BX-201
| Specification | Value |
|---|---|
| rear cover | ≈76 - 108N·m |
rear cover
76 - 108N·m
Oil Pump
Oil Pump Installation
- 1Apply a small amount of clean engine oil to the lip of a new oil seal.
05U0BX-202 - 2Push the oil seal slightly in by hand.
CAUTION
The oil seal must be pressed in until it is flush with the edge of the oil pump body.
Oil Pump Installation (continued)

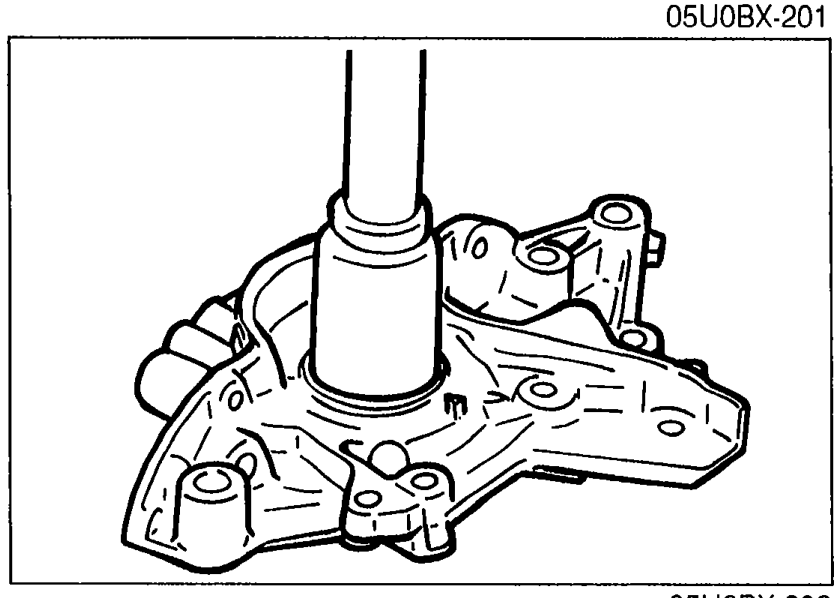

- 3Press the oil seal in evenly with a suitable pipe.
| Specification | Value |
|---|---|
| Oil seal outer diameteroil pump | 44mm (1.73 in) |
Oil seal outer diameteroil pump
44mm (1.73 in)
Oil Pump Installation (continued)

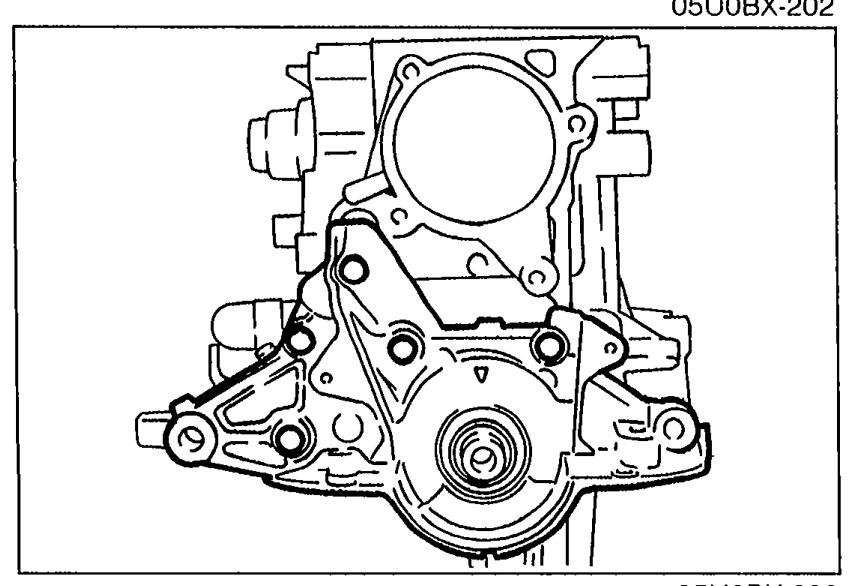

- 4Install the oil pump and a new gasket.
05U0BX-203
| Specification | Value |
|---|---|
| oil pump | ≈186 - 245N·m |
oil pump
186 - 245N·m
