REMOVAL — Engine Removal Step 1

B-28prose procedure

P/S = Power Steering; A/C = Air Conditioning. Items 7, 9, 10 only present on vehicles equipped with P/S and/or A/C.

WARNING

• Release the fuel pressure. (Refer to page F-101.)

CAUTION

• Obtain the code number and deactivate the audio anti-theft system before disconnecting the battery. (Refer to page T-113.)

PROCEDURE

1
Disconnect the negative battery cable.
2
Drain the engine coolant.
3
Remove the under cover.
4

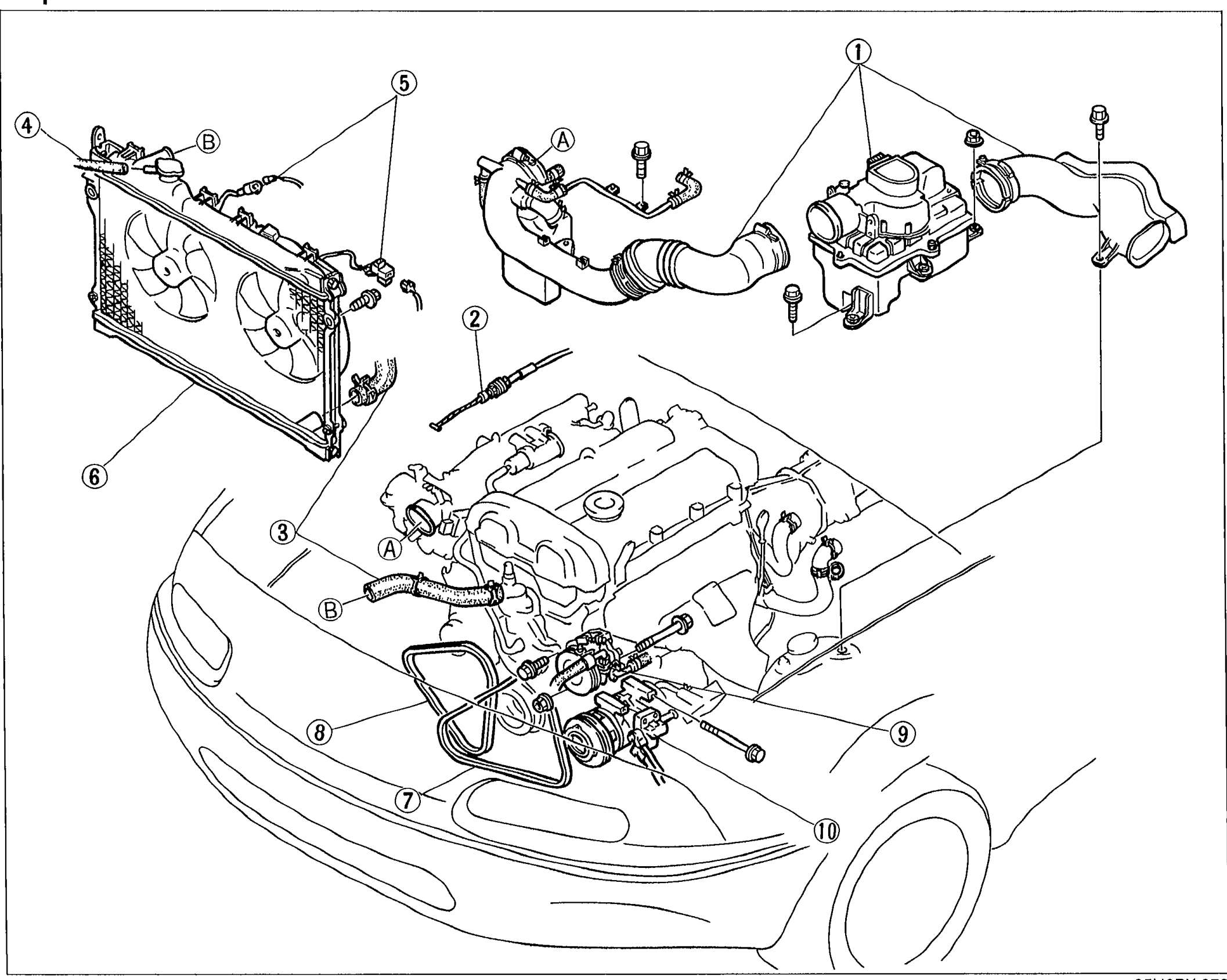

Remove in the order shown in the figure, referring to Removal Note.
05U0BX-073

No.	Component	Removal/Note
1	Air cleaner assembly
2	Accelerator cable
3	Radiator hose
4	Coolant reservoir hose
5	Cooling fan connector
6	Radiator and cooling fan assembly
7	P/S and/or A/C drive belt	Removal page B-6
8	Alternator drive belt	Removal page B-6
9	P/S oil pump	Removal Note page B-29
10	A/C compressor	Removal Note page B-29
