ASSEMBLY

B-72prose procedure
Continued from B-71

Cylinder Head Gasket

Cylinder Head Gasket Installation

  1. 1
    Remove all foreign material from the top of the cylinder block.

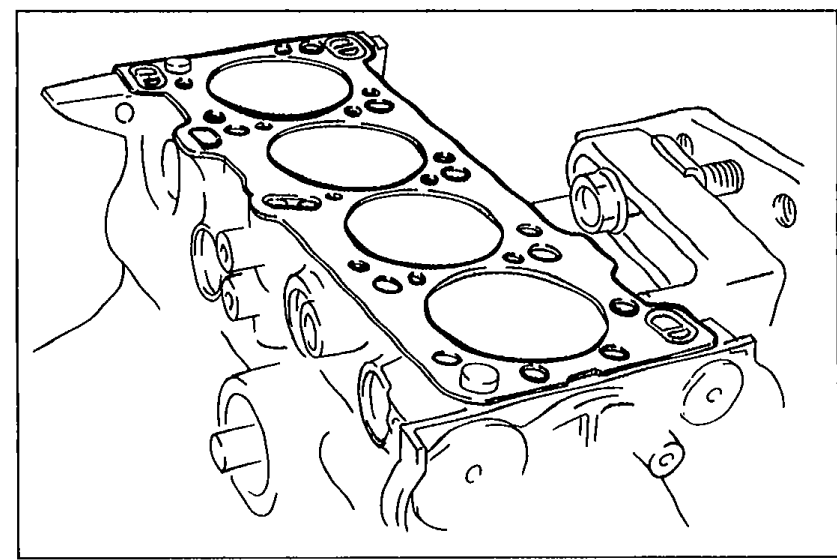

    New cylinder head gasket placed on top of the cylinder block, showing the bore holes and coolant/oil passages.
    05U0BX-219
  2. 2
    Place the new cylinder head gasket in position.

Cylinder Head

Cylinder Head Installation

  1. 1
    Install the cylinder head.

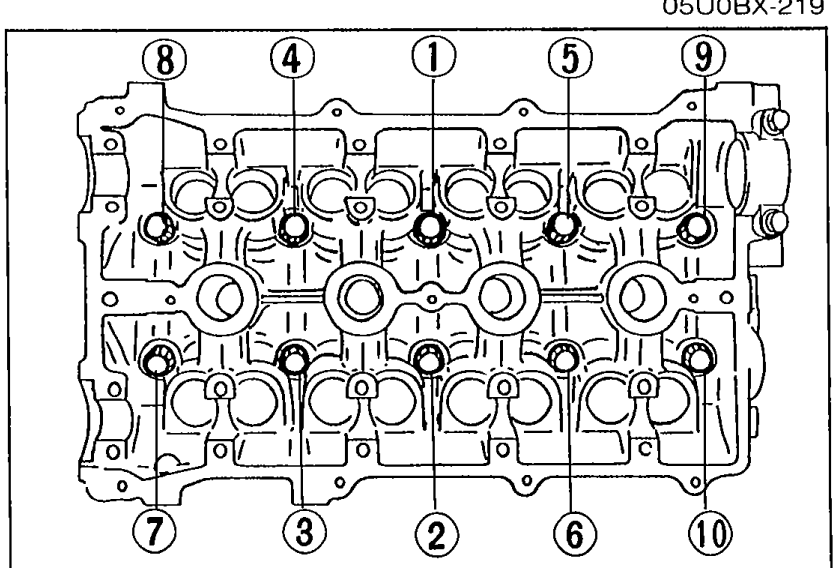

    Cylinder head bolt tightening sequence diagram showing 10 bolts numbered 1 through 10 across the head in two rows of five, identifying the order in which the bolts are torqued.
    05U0BX-220
  2. 2
    Apply clean engine oil to the bolt threads and seat faces.
  3. 3
    Tighten the cylinder head bolts in two or three steps in the order shown.
cylinder head bolts
745 - 794N·m

Thermostat Housing

Thermostat Housing Installation

  1. 1
    Remove all foreign material from the thermostat housing mounting surface.
    Thermostat housing installed on the cylinder head with a new O-ring. The lower coolant outlet hose connection is visible.
    05U0BX-221
  2. 2
    Install a new O-ring and the thermostat housing.
thermostat housing
186 - 245N·m

Seal Plate

Seal Plate Installation

  1. 1
    Install the seal plate on the cylinder head.
    Seal plate installed on the cylinder head front, covering the camshaft drive area with mounting bolts visible around the perimeter.
    05U0BX-222
seal plate
76 - 108N·m

HLA

HLA (Hydraulic Lash Adjuster) Installation

  1. 1
    Apply clean engine oil to the friction surfaces.

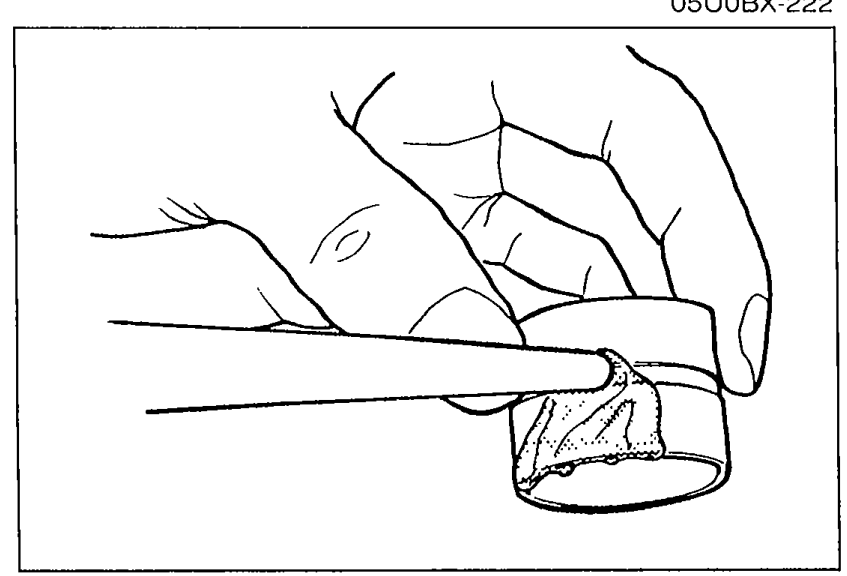

    Hand applying clean engine oil to an HLA (hydraulic lash adjuster) before installation; HLA visible held in hand.
    05U0BX-223
  2. 2
    If the HLA are being reused, install them in the position from which they were removed.
  3. 3
    Verify that the HLA move smoothly in their bores.
